Bussmann AGX-15 AGX Series Fast-Acting Fuse 15A

Product Description

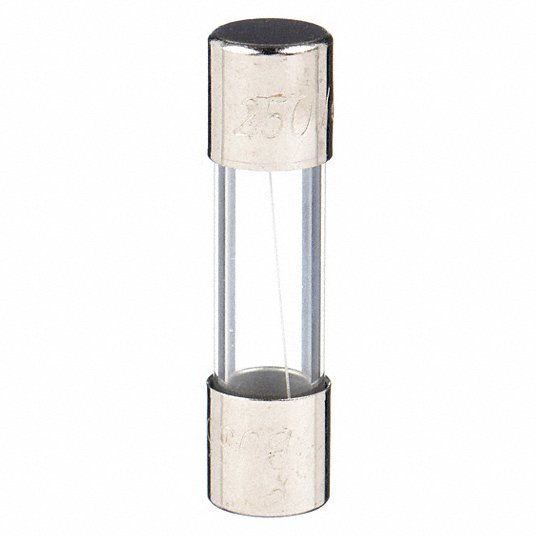

The Eaton BUSSMANN AGX-15 series is a fast-acting fuse with a 15A amperage rating and voltage ratings of 250 Vac and 32 Vdc. It features a glass tube and nickel-plated brass end cap construction. This fuse is designed for electronic circuits, offering reliable protection against overcurrents.

• Glass tube
• Fast-acting
• Cylindrical

Product Highlights

Fast-acting fuse with glass tube and nickel-plated brass end cap construction, designed for electronic circuits.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: AGX-15
• Country of Origin: Taiwan

Technical Specifications

• Product Name: Eaton Bussmann series AGX fast-acting fuse
• Catalog Number: AGX-15
• UPC: 051712704823
• Amperage Rating: 15 A
• Interrupt rating: 200 AIC at 125 Vac 1 kAIC at 32 Vac
• Fuse indicator: Non-indicating
• Connection: Ferrule end x ferrule end
• Response time: 4 hr at 110%, 60 min at 135%, 2 min at 200%
• Material: Glass tube Nickel-plated brass end cap construction
• Packaging type: Standard
• Quantity: 5
• Voltage rating: 250 Vac, 32 Vdc
• Type: Electronic
• Special features: Glass tube
• Application: Electronic circuits
• Brand: BUSSMANN
• Series: AGX
• Manufacturer Part Number: AGX-15
• AC Voltage Rating: 250 V AC
• Body Material: Glass
• Compatible Fuse Block Series: 3823; HFA; HHN; HK; HKP; HPF; HRK; HTB; S-8000
• Current Rating: 15 A
• DC Voltage Rating: 32 V DC
• Element: Single
• Fits Fuse Block Style: Rejection
• Fuse Body Style: Cylindrical
• Interrupt Rating - AC: 200 A
• Overall Diameter: 1/4 in
• Overall Length: 1 in
• Speed: Fast-Acting
• Standards: CE; CSA Certification Class 1422-01; UL 248-14 Guide JDYX2
• Visual Indication: Glass Fuse
• UNSPSC: 39121607
