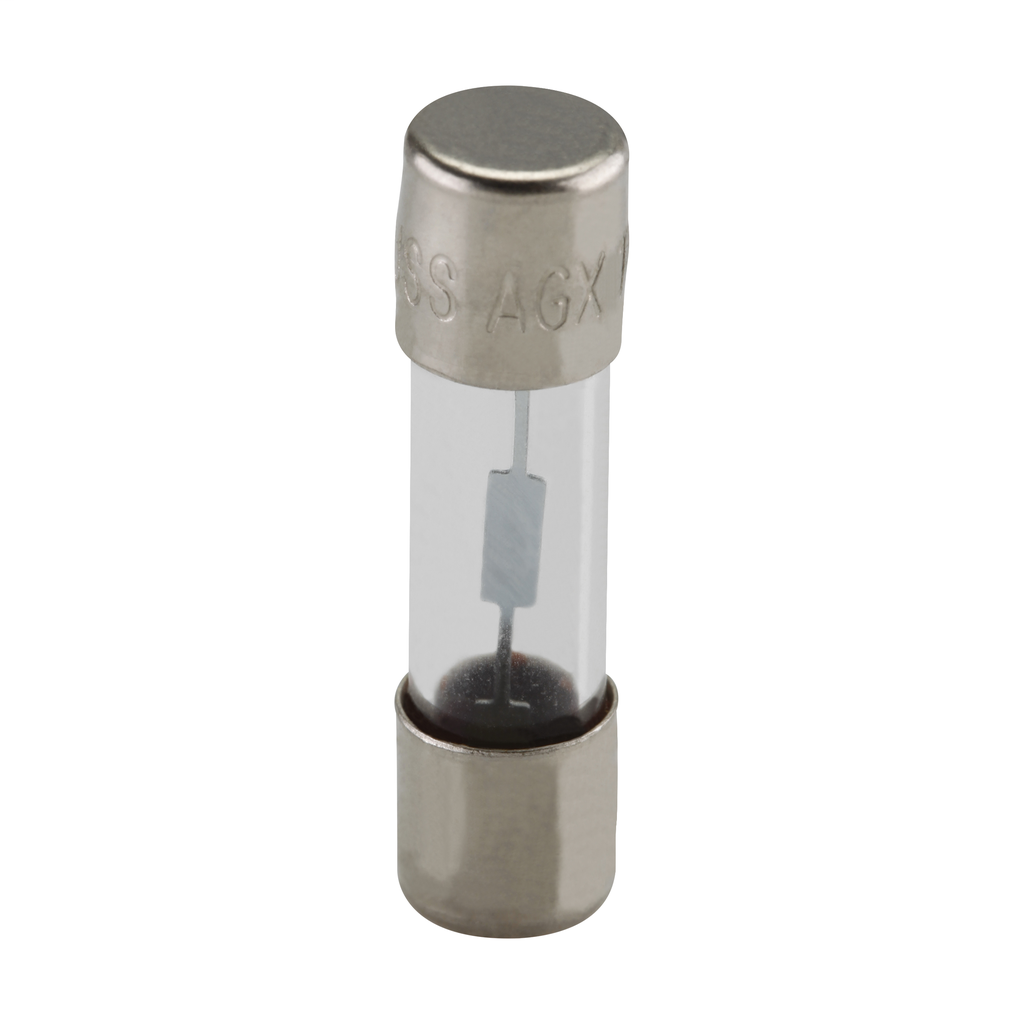

Bussmann AGX-10 AGX Glass Fuse 10A (1/4 inches x 1 inches)

Product Description

The BUSSMANN AGX-10 is a fast-acting fuse designed for electronic circuits and small appliances. This 10A fuse is rated for 250 Vac and 32 Vdc. It features a glass tube and nickel-plated brass end cap construction. The AGX series fuse provides reliable protection for sensitive electronic components.

• Fast-acting fuse
• Glass tube construction
• Nickel-plated brass end caps

Product Highlights

Fast-acting 10A fuse with glass tube and nickel-plated brass end caps for electronic circuit protection.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: AGX-10

Technical Specifications

• Size: 0.25 In Diameter X 1.00 In Length
• Type: Electronic
• Brand: Bussmann
• Width: .252 in
• Height: 1 Inch
• Length: 0.252 Inch
• Weight: .02 lb
• Voltage: 250 Volt
• Amperage: 10 Amp
• End Type: Ferrule
• Material: Glass tubeNickel-plated brass end cap construction
• Standard: CE,UL (CANADA AND US)
• Sub Brand: Bussmann Series
• Product UPC: 05171270481
• 12-Digit UPC: 051712704816
• Applications: Electronic Circuits
• Response Time: 4 hours minimum at 110%,5 seconds maximum at 200%,60 minutes maximum at 135%
• TC Connection: Ferrule end x ferrule end
• Connection Type: Ferrule
• Interrupt Rating: 1 kAIC
• Dimensions: 1.0000 IN X 0.2500 IN X 0.2500 IN
• Application: Ind Facilities -N- Factories - Facility: Safety and Security Systems
• Family group: FUSES/ACCESSORIES
• Manufacturer: BUSSMANN
• Voltage Rating: 250 Vac; 32 Vdc
• Amperage Rating: 10 A
• Special Features: Glass tube
• Fuse indicator: Non-indicating
• Packaging type: Standard
• Quantity: 5
• Mounting Type: Holder
• Body Size: 1/4 in Dia x 1 in L
• Body Style: Cylindrical
• Element: Single
• Terminal Type: Ferrule
• Standard & Approvals: cULus Guide JDYX, File E 19180 and Guide JDYX7, File E19180
