Bussmann AGX-1/8 agx fast-acting fuse 0.125A (pack of 5)

Product Description

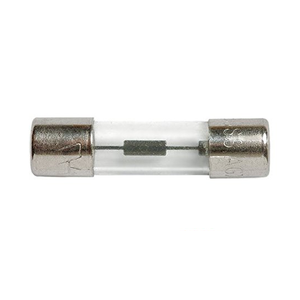

The Eaton BUSSMANN AGX-1/8 is a fast-acting fuse with a voltage rating of 250 Vac and 32 Vdc. Designed for overcurrent protection in instruments, electronic circuits, and small appliance applications. It features a glass tube and nickel-plated brass end cap construction.

• Glass tube
• Electronic circuits
• Fast-acting fuse

Product Highlights

Fast-acting fuse for electronic circuits and small appliances. Glass tube construction.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: AGX-1/8
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton Bussmann series AGX fast-acting fuse
• Catalog Number: AGX-1/8
• UPC: 051712704663
• EAN: 5027590458634
• Product Height: 26 mm
• Amperage Rating: 0.125A
• Interrupt rating: 10 kAIC at 125 Vac
• Fuse indicator: Non-indicating
• Connection: Ferrule end x ferrule end
• Response time: 4 hr at 110%, 60 min at 135%, 5 sec at 200%
• Material: Glass tube Nickel-plated brass end cap construction
• Packaging type: Standard
• Quantity: 5
• Voltage rating: 250 Vac, 32 Vdc
• Type: Electronic
• Special features: Glass tube
• Application: Electronic circuits
• Voltage: 250V
• Fuse Type: Glass Tube
• Acting Speed: Fast Acting
• Size: 1/4" x 1"
• End Cap: Nickel plated brass
• AC Voltage Rating: 250
• Interrupting Rating: 35 AIC @ 250 VAC
• UL Listed: product meets standard 248-14
• Ampere: .125 A
• Speed: Fast Blow
• Class: 8AG
• Shape: Glass Fuse
• Approvals: CE, UL, CSA
• Dimensions: 0.25" Dia x 1" L (6.3x25.4mm)
• Item weight: 0.07 oz
• Part #: 31A31299
• Package Quantity: 1
• Brand: Bussmann
• Current Rating: 1/8A
• MPN: AGX-1/8 250V
• Country of Origin: United States
• Fuse Size: 6.35 x 25.4 mm
• Acting: Fast
• Maximum AC Voltage Rating: 250 V
• Maximum DC Voltage Rating: N/A
• Fuse Material: Glass
• Mounting: Holder
