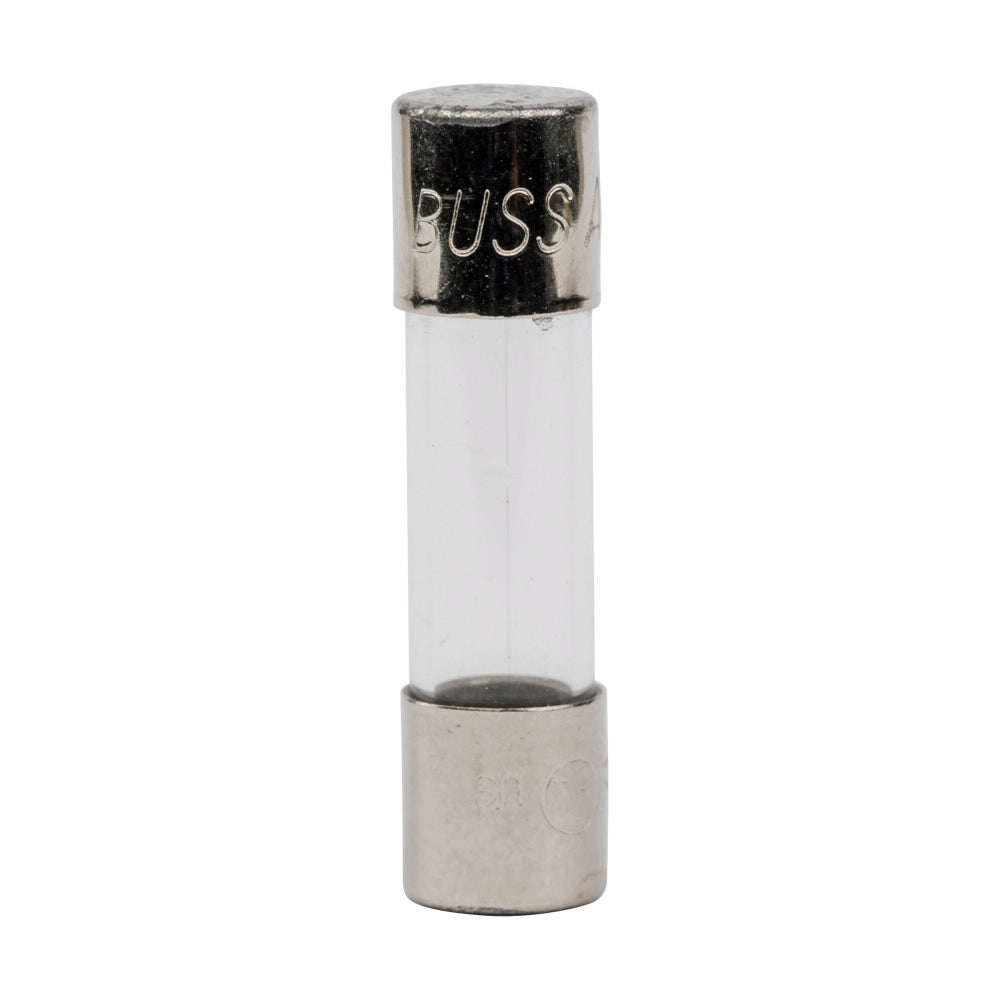

Bussmann AGX-1/4 AGX Series Fuse, Fast Acting, 1/4 Amp, 250V, Glass Tube, 1/4 inches x 1 inches (Pack of 5)

Product Description

The Bussmann AGX-1/4 is an AGX Series fast-acting fuse with a 1/4 Amp amperage and 250V voltage rating, featuring a glass tube and a 1/4" x 1" size. This fuse is designed for use in electronic circuits and other applications requiring overcurrent protection.

• Fast Acting
• Glass Tube
• 1/4" x 1" size

Product Highlights

Fast-acting fuse with a glass tube, 1/4 Amp amperage, and 250V voltage rating, suitable for electronic circuits.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: AGX-1/4

Technical Specifications

• Brand: Bussmann
• Series: AGX
• Amperage Rating: 0.25 A
• Voltage Rating: 250 VAC
• Fuse Type: Fast Acting
• Tube Material: Glass
• Size: 1/4" x 1"
• Item Model Number: AGX-1/4
• Body Size: 1/4 in Dia x 1 in L
• Element: Single
• Indicating/Non-Indicating: Non-Indicating
• Material: Glass
• Mounting Type: Holder
• Response Time: 4 hr, 60 min, 5 s
• Terminal Type: Ferrule
• Type: Small Dimension
• Interrupt Rating: 35 A, 10 kA
• Body Type: Cylindrical
• Connection: Ferrule end x ferrule end
• Special Features: Glass tube
