Bussmann AGX-1/10 Fuse AGX 1/10 Amp, 250V (Pack of 5)

Product Description

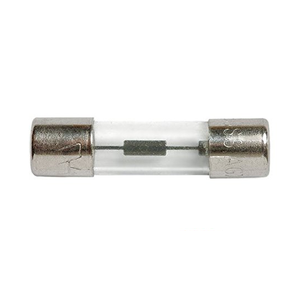

The BUSSMANN AGX-1/10 is a 1/10 Amp, 250V fast-acting glass tube fuse designed for overcurrent protection in electronic circuits. It has nickel-plated brass end caps and meets UL standard 248-14. This fuse is suitable for instruments, electronic devices, and small appliance circuits.

• 1/10 Amps
• 250 Volts AC
• Fast Acting

Product Highlights

The BUSSMANN AGX-1/10 fuse provides reliable, fast-acting protection for sensitive electronic circuits.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: AGX-1/10
• Country of Origin: Taiwan

Technical Specifications

• AC Voltage Rating: 250
• Interrupting Rating: 10,000 AIC @ 125 VAC
• Amperage Rating: 0.10 A
• Fuse indicator: Non-indicating
• Connection: Ferrule end x ferrule end
• Response time: 4 hr at 110%, 60 min at 135%, 5 sec at 200%
• Material: Glass tube Nickel-plated brass end cap construction
• Type: Electronic
• Special features: Glass tube
• Application: Electronic circuits
• Speed: Fast Blow
• Class: 8AG
• Shape: Glass Fuse
• Approvals: CE, UL, CSA
• Fuse Interrupt Rating: 10 kAIC at 125 Vac|35 AIC at 250 Vac
• Rated Voltage: 250V ac/32V dc
• Fuse Amps: 0.10 A
• Length: 1 in.
• Height: 0.25 in.
• Width: 0.25 in.
