Bussmann AGX-1-1/4 AGX fast-acting fuse 1.25A

Product Description

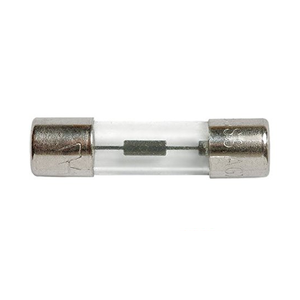

The BUSSMANN AGX-1-1/4 is an Eaton Bussmann series AGX fast-acting fuse. It is designed for electronic circuits. The fuse features a glass tube and nickel-plated brass end cap construction. It has a voltage rating of 250 Vac, 32 Vdc and an amperage rating of 1.25 A.

• Fast-acting
• Glass tube
• Electronic circuits application

Product Highlights

The BUSSMANN AGX-1-1/4 fuse is fast-acting with a glass tube design, suitable for electronic circuits.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: AGX-1-1/4

Technical Specifications

• Product Name: Eaton Bussmann series AGX fast-acting fuse
• Catalog Number: AGX-1-1/4
• UPC: 051712704922
• Amperage Rating: 1.25 A
• Interrupt rating: 1 kA at 125 Vac
• Fuse indicator: Non-indicating
• Connection: Ferrule end x ferrule end
• Response time: 4 hr at 110%, 60 min at 135%, 5 sec at 200%
• Material: Glass tube Nickel-plated brass end cap construction
• Packaging type: Standard
• Voltage rating: 250 Vac, 32 Vdc
• Type: Electronic
• Special features: Glass tube
• Application: Electronic circuits
• Speed: Fast Blow
• Class: 8AG
• Shape: Glass Fuse
• Approvals: CE, UL, CSA
• Series: AGX
• Mpn: AGX-1-1-4
• Gtin: 00051712704922
