Bussmann AGU-10 AGU Fuse 10 A (13/32 in x 1 1/2 in)

Product Description

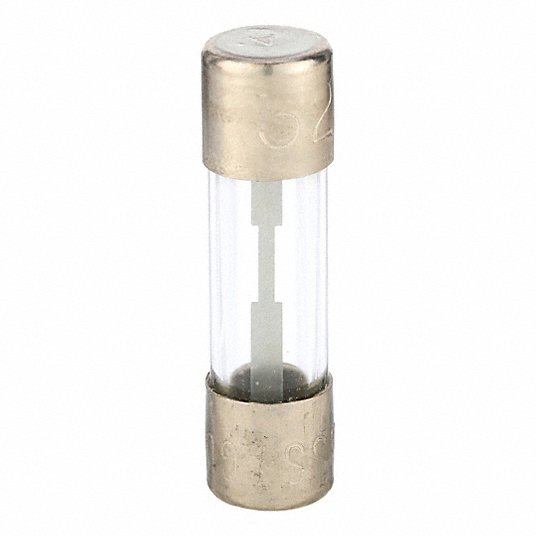

The BUSSMANN AGU-10 is a 10A, 32V fast-acting midget fuse. This fuse features a glass tube and nickel-plated brass ferrules. It is designed to protect current-sensitive equipment by responding rapidly to changes in current. The cylindrical body and conductive metal caps allow for easy installation and removal from clip-style holders.

• 10 Amps
• 32 Volts AC
• Midget Fuse
• Fast Acting
• Glass Tube
• Nickel Plated Brass Ferrules

Product Highlights

The BUSSMANN AGU-10 is a fast-acting midget fuse with a glass tube and nickel-plated brass ferrules.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: AGU-10
• Country of Origin: Mexico

Technical Specifications

• Amps: 10
• Voltage: 32 Volts AC
• Fuse Type: Midget Fuse
• Speed: Fast Acting
• Tube Material: Glass Tube
• Physical Size: 13/32" x 1 1/2"
• AC Voltage Rating: 32 V
• Ferrules: Nickel Plated Brass
• Product Name: Eaton Bussmann series AGU fuse
• Catalog Number: AGU-10
• UPC: 051712704267
• EAN: 5027590407038
• Product Type: Fuse
• Amperage Rating: 10 A
• Voltage rating: 32 V
• Material: Nickel-plated brass endcaps
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Non current limiting
• Brand: BUSSMANN
• Series: AGU
• Manufacturer Part Number: AGU-10
• Body Material: Glass
• Compatible Fuse Block Series: BM
• Current Rating: 10 A
• DC Voltage Rating: Not Rated
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 10 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Standards: CE
• Visual Indication: Non-Indicating
• UNSPSC: 39121609
• Class: Midget
