Bussmann AGC-20-R AGC-20-R 32V SM DIM FS

Product Description

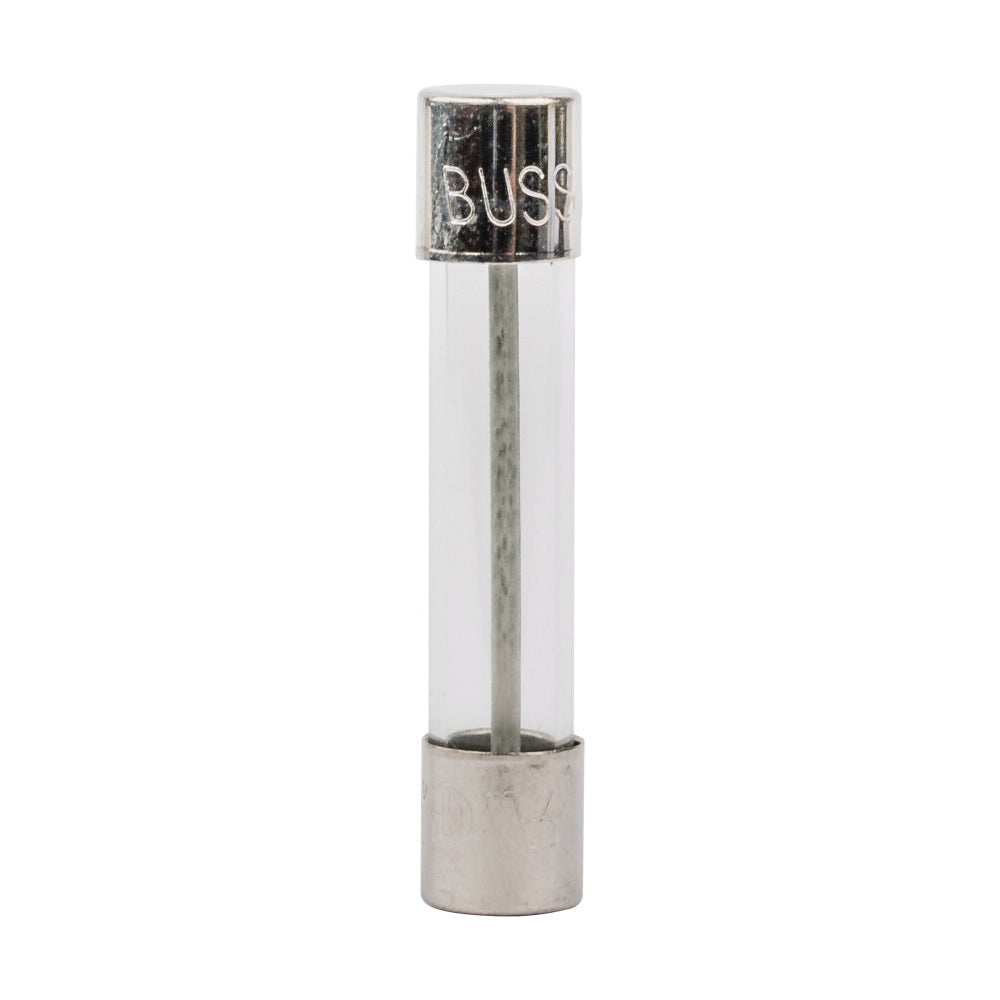

The Bussmann AGC-20-R is a fast-acting glass tube fuse designed for efficient protection in various applications. This fuse has a voltage rating of thirty-two volts alternating current and direct current, ensuring safety and reliability in your electrical systems. With a current rating of twenty amperes, it is suitable for both industrial and commercial usage.

• Fast-acting response to overloads
• Dimensions of one-fourth inch diameter by one and one-quarter inch length
• CE Marked and RoHS Compliant

Product Highlights

This fuse offers dependable operation and is made with a glass tube and nickel-plated brass end caps. Its construction provides durability and optimal performance in safety and security systems.

Product Information

Standard Information

• Brand: Bussmann
• Packaging: Each

Technical Specifications

• Voltage Rating: 32 Vac; 32 Vdc (self certified)
• Amperage Rating: 20 A
• Interrupt Rating: 1 kAIC at 32 Vac
• Response Time: 60 min at 135%; 120 sec at 200%
• Material: Glass tube with nickel-plated brass end cap construction
• Connection: Ferrule end x ferrule end
• Application: Safety and security systems in industrial facilities
• Dimensions: 1.25 inches x 0.25 inches x 0.25 inches
