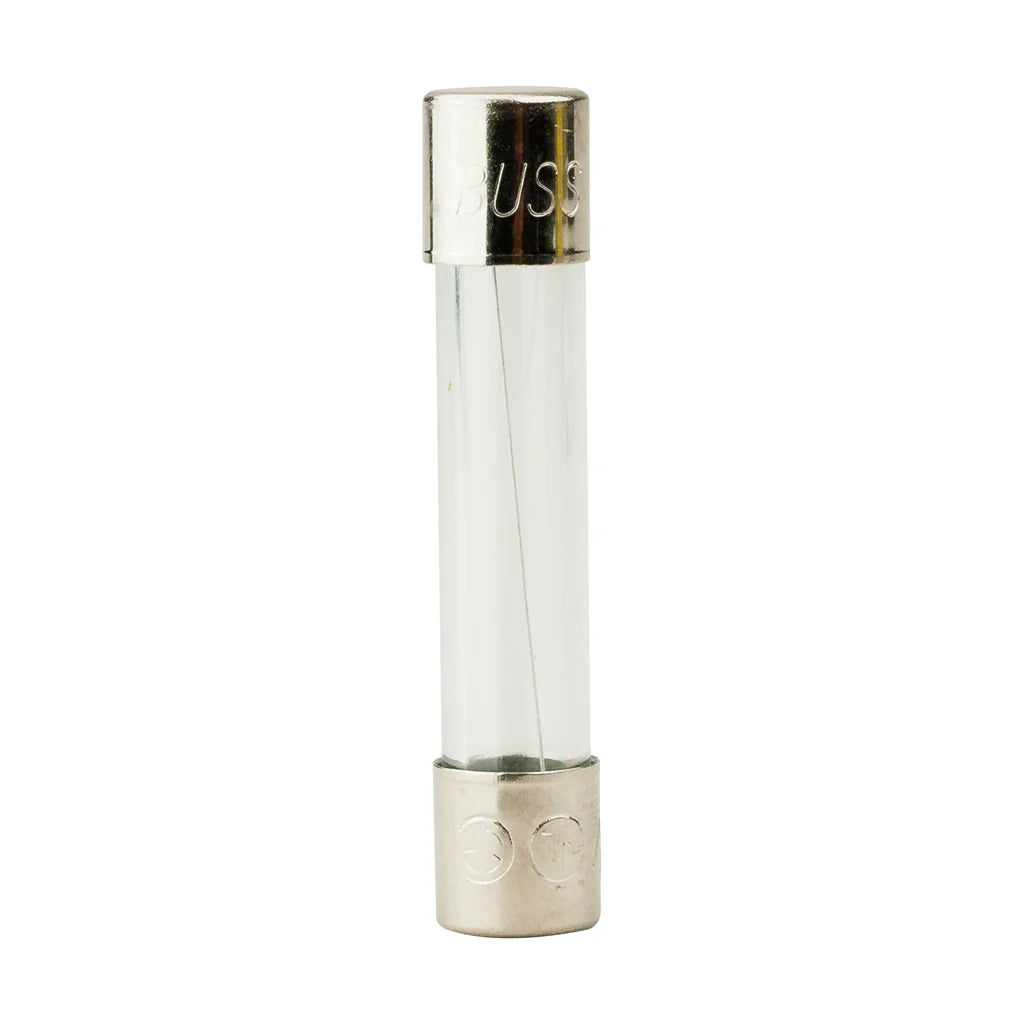

Bussmann AGC-1-1/2-R Small Dimension Fuse 1.5A (1/4 Diameter X 1-1/4 Length)

Product Description

The Bussmann Series AGC-1-1/2-R is a fast-acting fuse from Bussmann, specifically designed for electronic circuits. This fuse operates at a rating of 1.5 Amps and supplies up to 250 Volts AC and 32 Volts DC, making it suitable for various applications.

• Fast-acting design ensures rapid response to overload conditions.
• Constructed with a glass tube and nickel-plated brass end caps for durability.
• Features a ferrule connection type for easy installation.

Product Highlights

The AGC-1-1/2-R fuse is ideal for use in electronic circuits, providing reliable protection against current surges and overloads. Its compact size allows fitting in tight spaces.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Voltage Rating: 250 Volt AC, 32 Volt DC (self certified)
• Amperage Rating: 1.5 Amp
• Size: 1/4 Inch Diameter x 1-1/4 Inch Length
• End Type: Ferrule
• Material: Glass tube with nickel-plated brass end cap construction
• Response Time: 120 seconds maximum at 200%, 60 minutes maximum at 135%
• Interrupt Rating: 10 kAIC
• Applications: Electronic circuits
