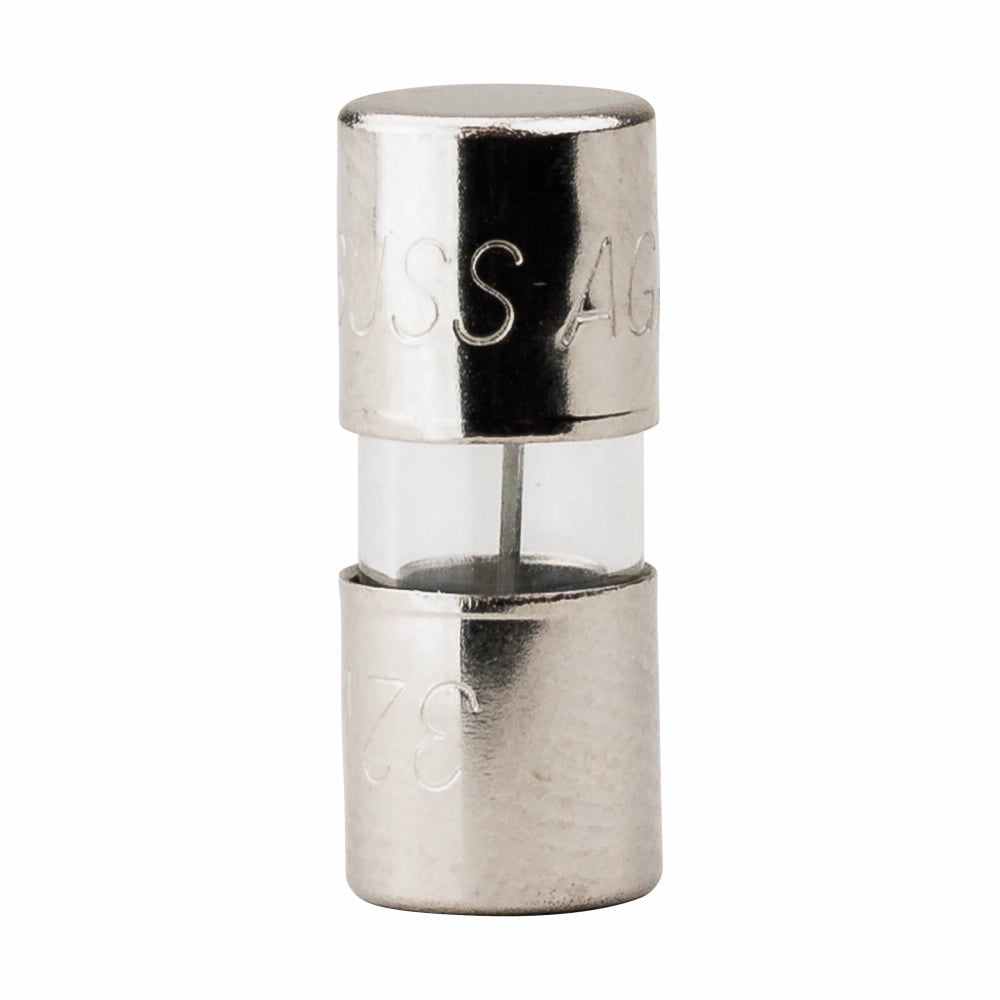

Bussmann AGA-5 AGA Series Fast-Acting Glass Fuse 5 Amp

Product Description

The BUSSMANN AGA-5 is an Eaton AGA Series fast-acting fuse with a 5A amperage rating and voltage ratings of 125 Vac and 32 Vdc. This small dimension electronic fuse is suitable for electronic circuits and industrial facilities, including safety and security systems. It features a ferrule connection type and a response time of 120 seconds maximum at 200%.

• Fast-acting fuse with 5A amperage rating
• Voltage ratings of 125 Vac and 32 Vdc
• Suitable for electronic circuits and safety/security systems

Product Highlights

The BUSSMANN AGA-5 is a fast-acting fuse designed for electronic circuits and industrial applications, providing reliable circuit protection.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: AGA-5

Technical Specifications

• Amperage: 5 Amp
• Applications: Electronic Circuits
• Connection Type: Ferrule
• End Type: Ferrule
• Interrupt Rating: 200 AIC
• Material: Brass
• Response Time: 120 S Maximum At 200%,4 Hr Minimum At 100%,60 Min Maximum At 135%
• Size: 1/4 In Diameter X 5/8 In Length
• Standard: CE,UL 248-14
• Type: Electronic,Small Dimension
• Voltage: 125 Volt
• Brand: Bussmann
• Sub Brand: Bussmann Series
• Application: Ind Facilities -N- Factories - Facility: Safety and Security Systems
• Manufacturer: BUSSMANN
• Voltage Rating: 125 Vac; 32 Vdc
• Amperage Rating: 5 A
• Interrupt rating: 1 kAIC at 125 Vac
• Special Features: Interrupt Rating 200 Amp at 125 Vac; Material Glass Tube; Nickel Plated Brass En
• Product Length/Depth: 0.625 in
• Product Height: 0.25 in
• Product Width: 0.25 in
• Compliances: CE Marked
• Global Catalog: AGA-5
• Product Type: Fast-acting glass tube fuse
• Fuse indicator: Non-indicating
• Quantity: 5
