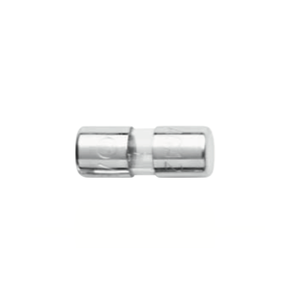

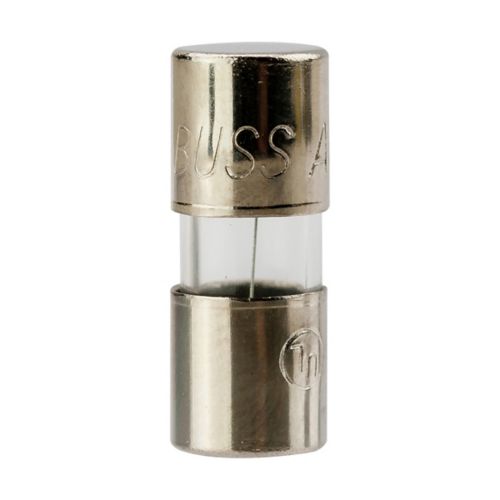

Bussmann AGA-15 Fuse 15 A (Pack of 5)

Product Description

The BUSSMANN AGA-15 is a fast-acting glass tube fuse designed for overcurrent protection in electronic circuits. This AGA series fuse has an amperage rating of 15 A. It is designed to UL 248-14 standards. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip.

• Fast acting for maximum protection
• Size rejects insertion of other fuse types
• Nickel plated brass end caps

Product Highlights

The BUSSMANN AGA-15 fuse provides reliable overcurrent protection for electronic circuits with fast-acting performance.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: AGA-15
• Country of Origin: TW

Technical Specifications

• Model: AGA-15
• Voltage: 250 Volts
• SKU: AGA-15
• Catalog Number: AGA-15
• UPC: 051712703451
• Product Length/Depth: 0.625 in
• Product Height: 0.25 in
• Product Width: 0.25 in
• Compliances: CE Marked
• Global Catalog: AGA-15
• Product Type: Fast-acting glass tube fuse
• Amperage Rating: 15 A
• Interrupt rating: 1 kAIC at 32 Vac
• Fuse indicator: Non-indicating
• Connection: Ferrule end x ferrule end
• Response time: 4 hr at 100%, 60 min at 135%, 120 sec at 200%
• Material: Nickel-plated brass endcaps Glass tube
• Quantity: 5
• Voltage rating: 125 Vac, 32 Vdc
• Type: Small Dimension
• Application: Electronic circuits
• Interrupt Rating: 1 kA
• Speed: Fast Blow
• Class: 1AG
• Shape: Glass Fuse
• Approvals: CE, UL
• Dimensions: 0.25" Dia x 0.63" L (6.4x15.9mm)
• UNSPSC: 39121607
• Mounting Type: Clip/Holder
• Terminal Type: Ferrule
• Series: AGA
• Body Size: 1/4 in Dia x 5/8 in L
• Body Type: Cylindrical
• Element: Single
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Non-Rejection
• Standards/Approval: UL Listed|Standard 248-14, Guide JDYX2|CE Certifie
