Bussmann AGA-10 aga fast-acting glass tube fuse 10A

Product Description

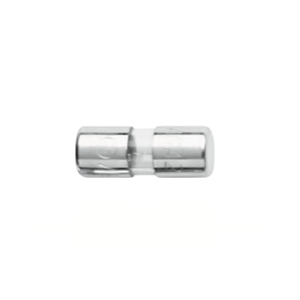

The Eaton BUSSMANN AGA-10 series fast-acting glass tube fuse is rated at 10A, 125 Vac, and 32 Vdc. It is suitable for electronic circuits. The fuse features a glass tube with nickel-plated brass endcaps and ferrule end connections.

• Fast-acting glass tube fuse
• Ferrule end x ferrule end connection
• Suitable for electronic circuits

Product Highlights

The BUSSMANN AGA-10 is a fast-acting glass tube fuse with a 10A amperage rating and voltage ratings of 125 Vac and 32 Vdc.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: AGA-10

Technical Specifications

• Product Name: Eaton Bussmann series AGA fast-acting glass tube fuse
• Catalog Number: AGA-10
• UPC: 051712703444
• Product Length/Depth: 0.625 in
• Product Height: 0.25 in
• Product Width: 0.25 in
• Compliances: CE Marked
• Global Catalog: AGA-10
• Product Type: Fast-acting glass tube fuse
• Amperage Rating: 10 A
• Interrupt rating: 1 kAIC at 125 Vac
• Fuse indicator: Non-indicating
• Connection: Ferrule end x ferrule end
• Response time: 4 hr at 100%, 60 min at 135%, 120 sec at 200%
• Material: Glass tube Nickel-plated brass endcaps
• Voltage rating: 125 Vac, 32 Vdc
• Type: Electronic
• Application: Electronic circuits
• Ampere: 10 A
• Speed: Fast Blow
• Class: 1AG
• Shape: Glass Fuse
• Approvals: CE, UL
• Series: AGA
• Part Number: AGA 056
• Mfg Cat No: AGA-10
• VAC: 125
• Amps: 10 amp
• Brand: Cooper Bussmann
• MPN: AGA-10
• Voltage: 32
• Catalog / Class: 1AG
• Fuse Type: Fast Acting
• Terminal Type: Clip, Holder
• Body Material: Glass
• Contact Material: Brass
• Diameter: 1/4 in
• Length: 5/8 in
• Current Rating: 10 A
