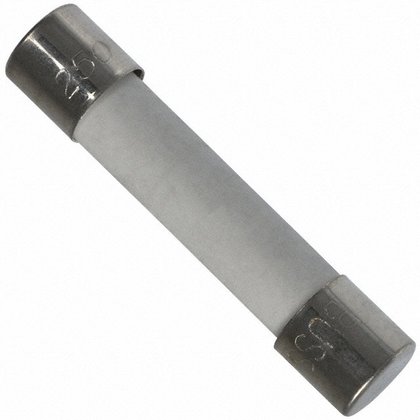

Bussmann ABC-30-R Fuse 30 Amp (Pack of 5)

Product Description

The Eaton Bussmann series ABC-30-R is a fast-acting fuse with a ceramic body that allows for higher amp/volt rating combinations. This electronic fuse is suitable for electronic circuits. It has a voltage rating of 250 Vac, 125 Vdc, and 32 Vac (self certified).

• Fast-acting fuse
• Ceramic body allows for higher amp/volt rating combinations.
• RoHS Compliant

Product Highlights

The Bussmann ABC-30-R fuse is fast-acting and ideal for protecting electronic circuits.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: ABC-30-R

Technical Specifications

• Product Name: Eaton Bussmann series ABC fast-acting fuse
• Catalog Number: ABC-30-R
• UPC: 051712542487
• EAN: 5027590226493
• Product Height: 32 mm
• Product Diameter: 6.4 mm
• Compliances: RoHS Compliant CE Marked
• Catalog Notes: Ceramic body allows for higher amp/volt rating combinations.
• Product Type: Fast-acting fuse
• Amperage Rating: 30 A
• Melting (I2T): Typical pre-arc: 1429
• Resistance: 0.002225 ohms DC cold
• Voltage drop: 0.09 mV typical
• Interrupt rating: 1000 AIC at 125 Vac 400 AIC at 125 Vdc 1 kAIC at 75 Vdc 200 AIC at 250 Vac
• Fuse indicator: Non-indicating
• Connection: Ferrule end x ferrule end
• Response time: 4 hr at 100%, 60 min at 135%, 120 sec at 200%
• Material: Ceramic
• Quantity: 5
• Voltage rating: 250 Vac, 125 Vdc, 32 Vac (self certified)
• Type: Electronic
• Application: Electronic circuits
• Brand: Bussmann
• Part Number: 051712542487
• Catalog Number With Axials: ABC-V-_-R, W/o Axials: ABC-_-R, ABC-_-_-R
• Dimensions: 1\u20444\u201d x 1 1\u20444\u201d (6.4 x 31.7mm)
• Volts: 250Vac/125Vdc (1\u20444-15A, 20-30A)*, 250Vac (18A)
• Amps: 30 Amps
• IR: 35A (1\u20444-1A @ 250Vac), 100A (11\u20442-3A @ 250Vac), 200A (4-10A @ 250Vac), 750A (12-15A @ 250Vac), 400A (18-20A @ 250Vac), 10kA (1\u20444-15A @ 125Vac), 1kA (18-30A @ 125Vac), 10kA (1\u20444-15, 20A @ 125Vdc), 400A (25-30A @ 125Vdc), 200A (25-30A @ 250Vac)
• Agency Information: CE, Std. 248-14 UL Listed, Guide JDYX File E19180, 1\u20444-15A; UL Recognized, Guide JDYX2, File E19180, 18-30A; CSA Certification, Class 1422-01 & 1422-30, File 53787, 1\u20444-30A
• Typical Applications: Electronic Circuits
• Construction: Ceramic tube with nickel-plated brass endcaps
• AC Adapter Current: 30 Amps
• Voltage: 250 Volts
• Specification Met: ul listed
• Length: 1 1/4 in
• Speed: Fast Acting
• Volts DC: 75
• Diameter: 1/4 in
• Volts AC: 250
• Mounting: Cartridge
• Class: Miniature
• Interrupt Rating DC: 10 kA
