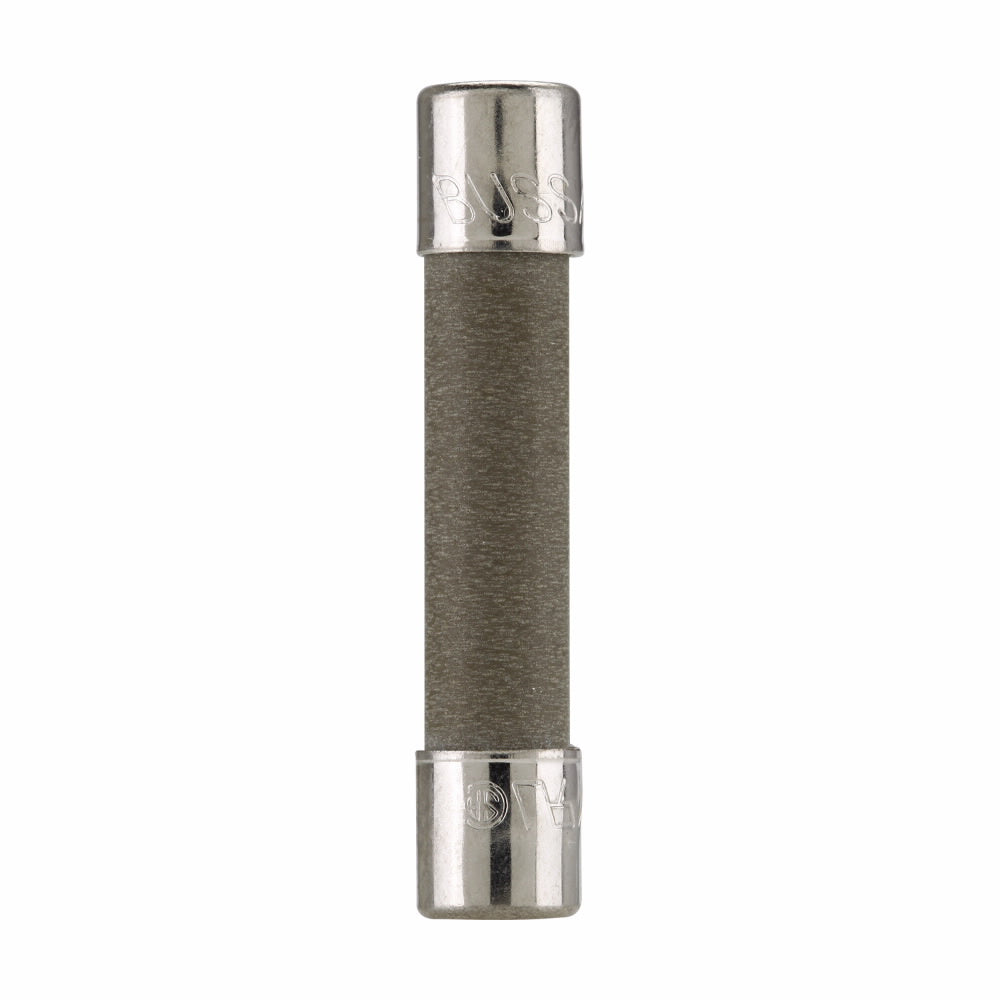

Bussmann ABC-20-R 250V SM DIM FS

Product Description

The Bussmann ABC-20-R is a time-delay fuse designed for reliable protection in various electrical applications. This fuse operates at a voltage rating of 250Vac and 125Vdc. The 20 ampere ratings make it suitable for demanding circuits.

• Fast-acting function for quick response
• RoHS compliant and CE marked for safety
• Made with nickel-plated brass endcaps and a ceramic tube

Product Highlights

This fuse is ideal for use in industrial facilities, ensuring safety in critical electrical systems.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann

Technical Specifications

• Type: Fast-acting fuse
• Amperage Rating: 20 A
• Voltage Rating: 250 Vac; 125 Vdc; 32 Vac (self certified)
• Interrupt Rating: 10 kAIC at 125 Vdc; 1 kAIC at 125 Vac; 400 AIC at 250 Vac
• Response Time: 4 hr at 100%; 60 min at 135%; 120 sec at 200%
• Dimensions: 1/4 In Diameter X 1-1/4 In Length
• Application: Industrial facilities - Safety and Security Systems
• Special Features: Interrupt Rating 400 Amp at 250 Vac; 1000 Amp at 125 Vac; 10000 Amp at 125 Vdc
