Bussmann ABC-15-R Fast Acting Fuse 15 Amp 250 Volt AC 125 Volt DC

Product Description

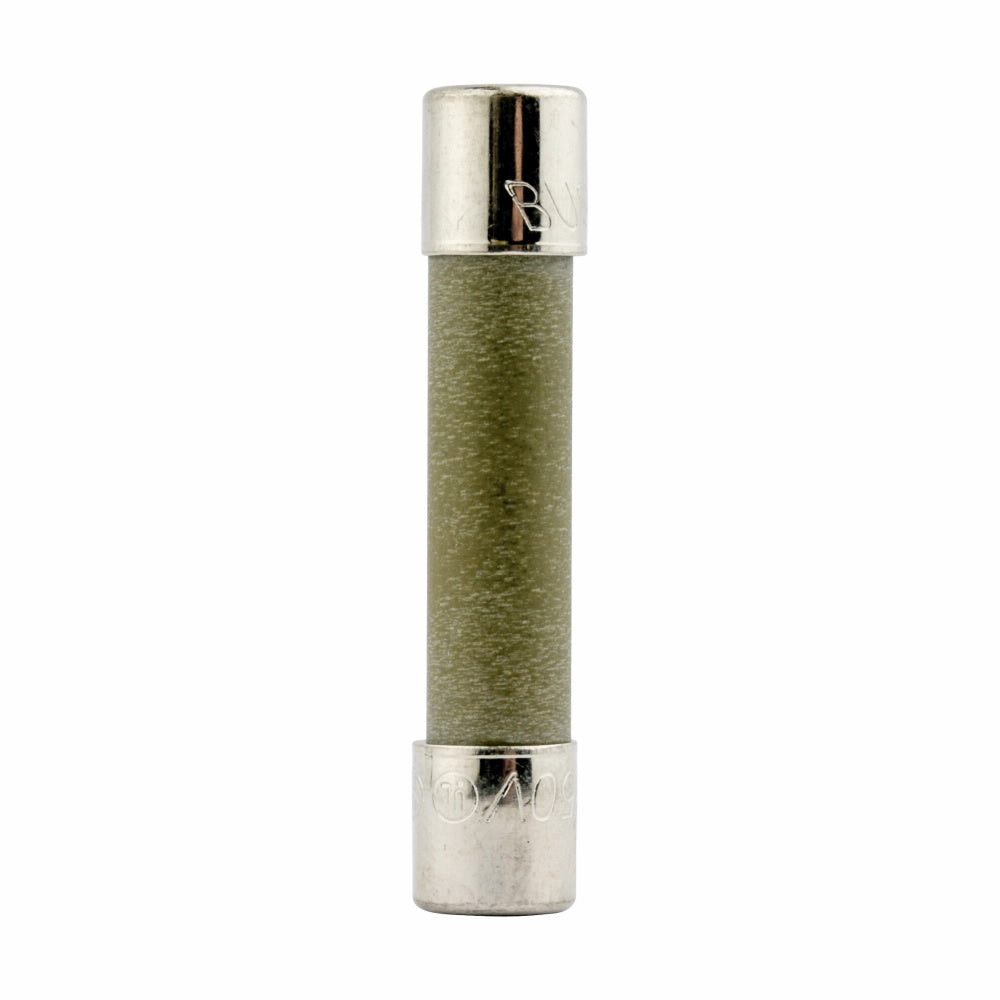

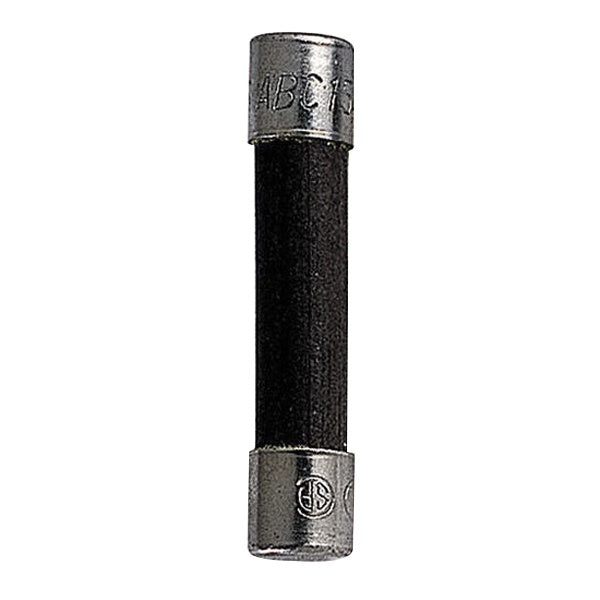

The Bussmann ABC-15-R is a fast-acting fuse rated at 15 amps with a voltage capacity of 250 volts AC and 125 volts DC. It features ferrule terminal connections and cylindrical body style, ideal for protecting sensitive circuits.

• Fast-acting fuse with a 15 amp rating
• Dimensions: 1/4 inch diameter by 1-1/4 inch length
• Interrupt rating: 750 amps at 250 volts AC

Product Highlights

This fuse features a ceramic body and nickel-plated brass end caps, ensuring durability and effectiveness in various applications.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann

Technical Specifications

• Type: Fast-acting fuse
• Voltage Rating: 250 volts AC; 125 volts DC
• Amperage Rating: 15 amps
• Dimensions: 1/4 inch diameter x 1-1/4 inch length
• Material: Ceramic body, nickel plated brass endcap
• Response Time: 4 hours at 100%; 60 minutes at 135%; 120 seconds at 200%
• Interrupt Rating: 10 kAIC at 125 volts; 750 AIC at 250 volts
• Standards: UL Listed, CE Marked, RoHS Compliant
