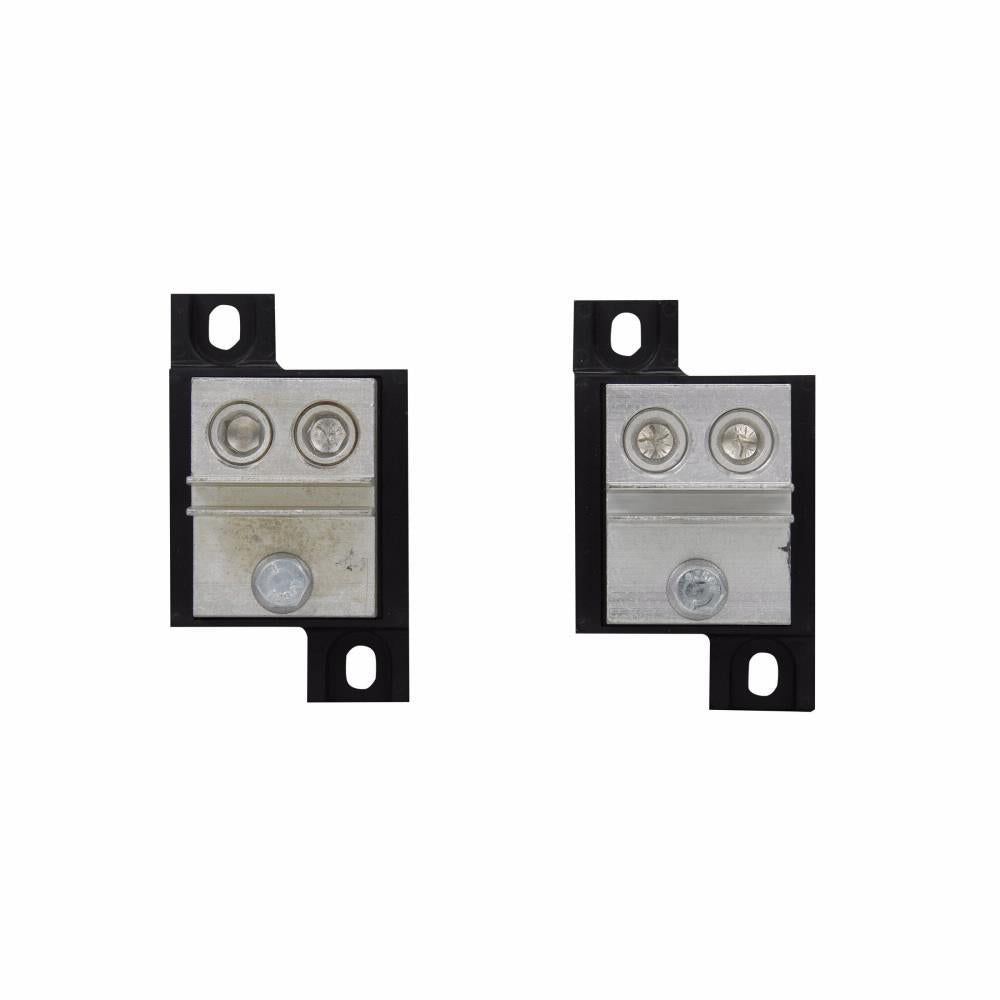

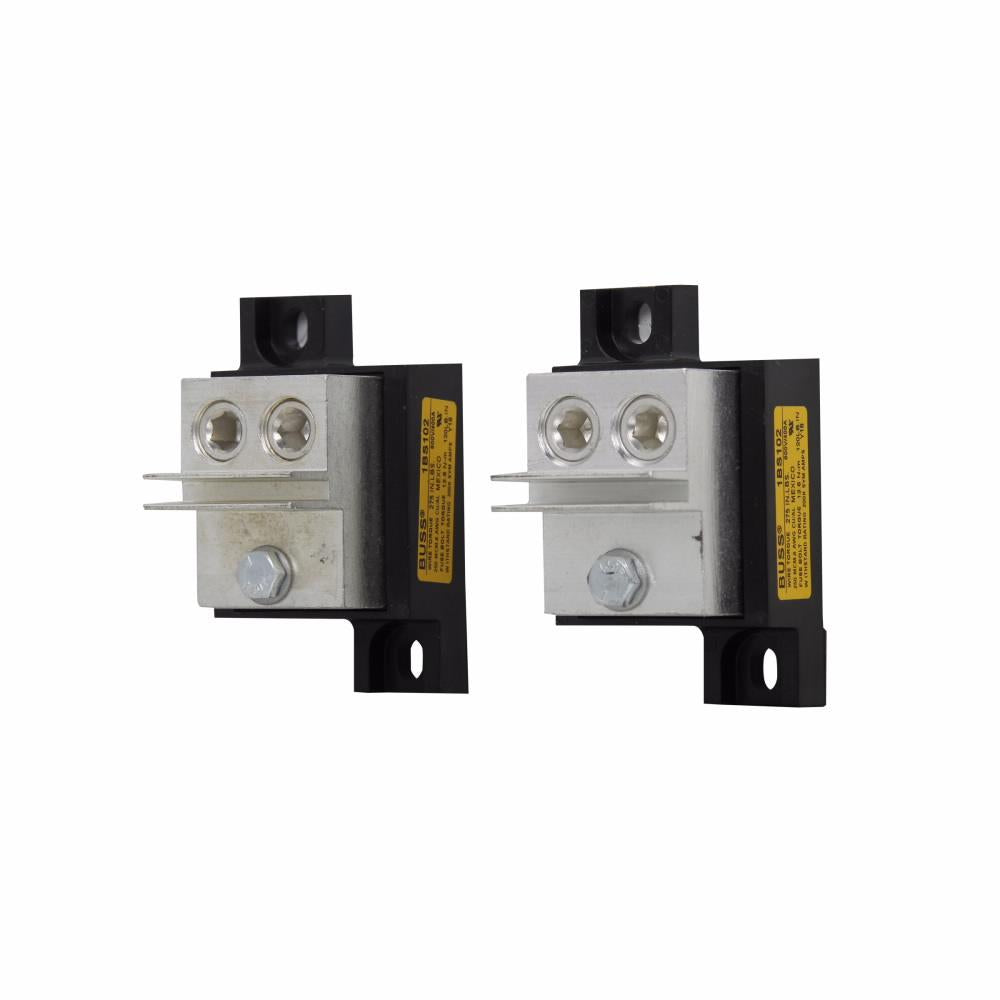

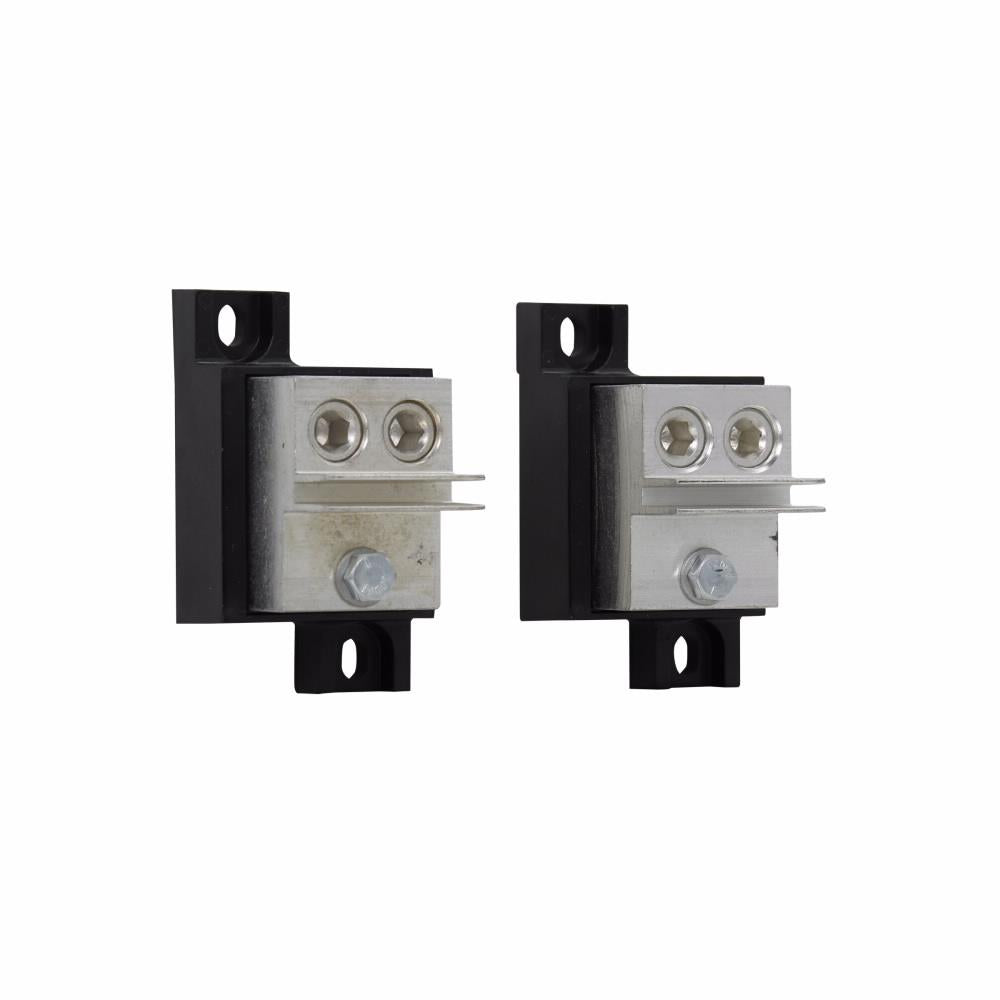

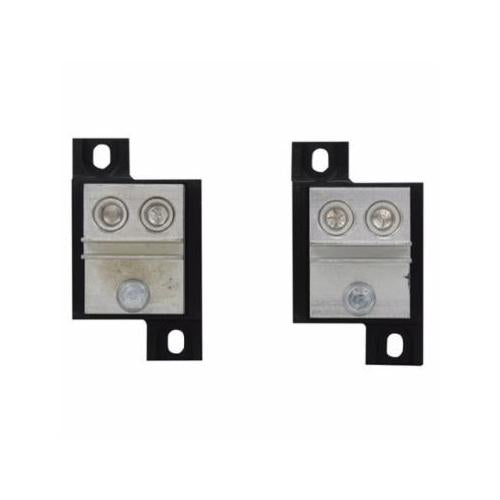

Bussmann 1BS102 BSF Modular Universal Fuse Block 600 V 400 A

Product Description

The Bussmann 1BS102 is a modular universal fuse block designed for electrical applications. This fuse block operates at a voltage of 600 V and can handle a current of 400 A. The product supports wire sizes ranging from six AWG to 250 kcmil and features a single pole with screw connections. This unit is suitable for stud mounting and operates effectively within a temperature range of up to 150 degrees Celsius, making it ideal for demanding environments.

• Meets industry standards like CE, CSA, RoHS, and UL listings.
• Compatible with 300/600 VAC Class T high-speed fuses.
• Constructed with a black phenolic base and zinc-plated steel components.

Product Highlights

This fuse block is engineered for reliability and compliance. It serves as a vital component in electrical assemblies, panels, and OEM applications, ensuring safe operation in industrial settings.

Product Information

Standard Information

• Brand: Bussmann
• MPN: 1BS102

Technical Specifications

• Voltage Rating: 600 V
• Amperage Rating: 400 A
• Wire Size: 6 AWG to 250 kcmil
• Connection Type: Screw
• Number of Poles: 1
• Temperature Rating: 150 degrees Celsius
• Dimensions: 2.25 inches wide x 2.53 inches high
• Mounting Type: Stud
