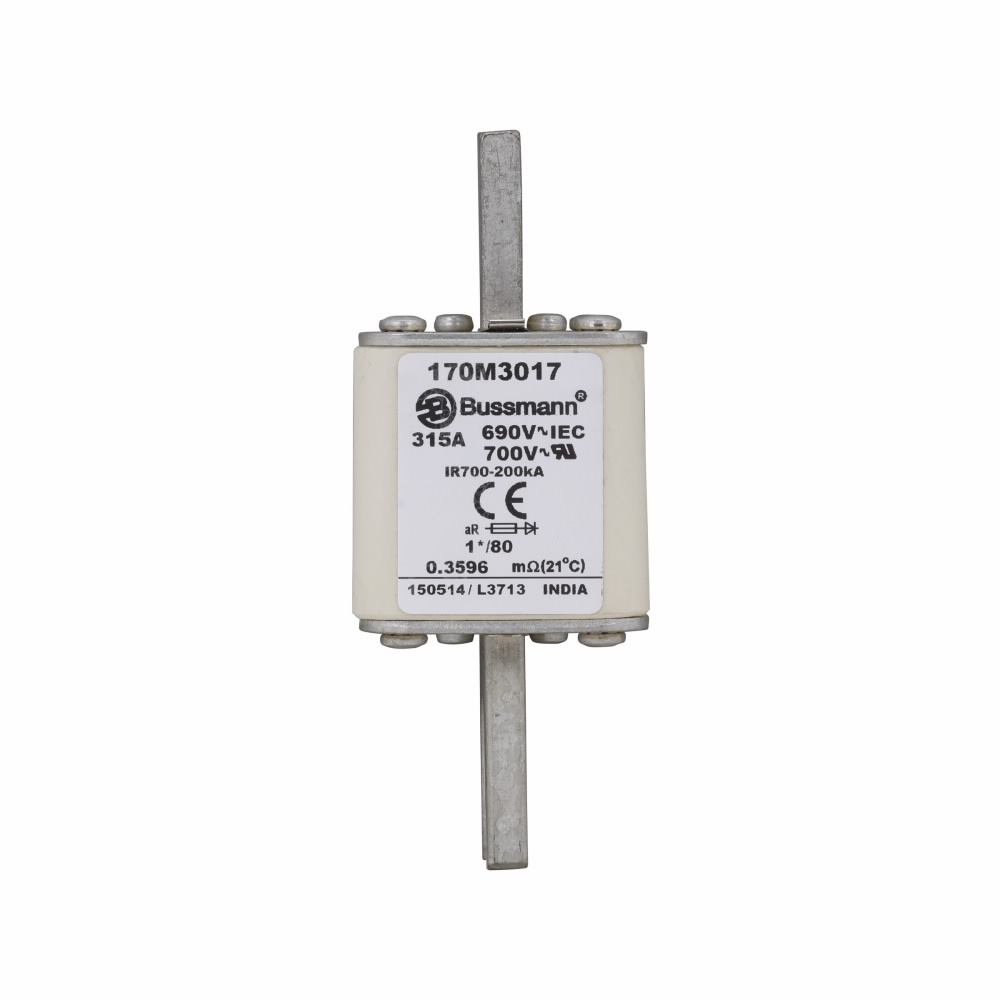

Bussmann 170M3017 Fuse 315A 690V 1/80

Product Description

The Bussmann 170M3017 is a high-speed square body fuse designed for reliable performance in electrical systems. Operating at a voltage rating of 690 volts (IEC) and 700 volts (UL), it handles a maximum current of 315 amps. This fuse features a blade end connection and is classified as Class aR. It comes equipped with a top fuse status indicator and is specifically designed for mounting using the DIN 43 620 standard.

• High-speed fuse for quick protection
• Blade end connection type
• Meets IEC and UL ratings

Product Highlights

This fuse is ideal for safety and security systems in industrial facilities. It is also suitable for electrical assemblies, providing essential protection against overloads and faults.

Product Information

Standard Information

• Brand: Bussmann
• Model Number: 170M3017

Technical Specifications

• Voltage Rating: 690 V (IEC), 700 V (UL)
• Amperage Rating: 315 A
• Interrupt Rating: 200 kAIC
• Dimensions: 12.0079 in length x 5.7087 in width x 2.5591 in height
• Weight: 10.86 pounds
• Connection Type: Blade end x blade end
