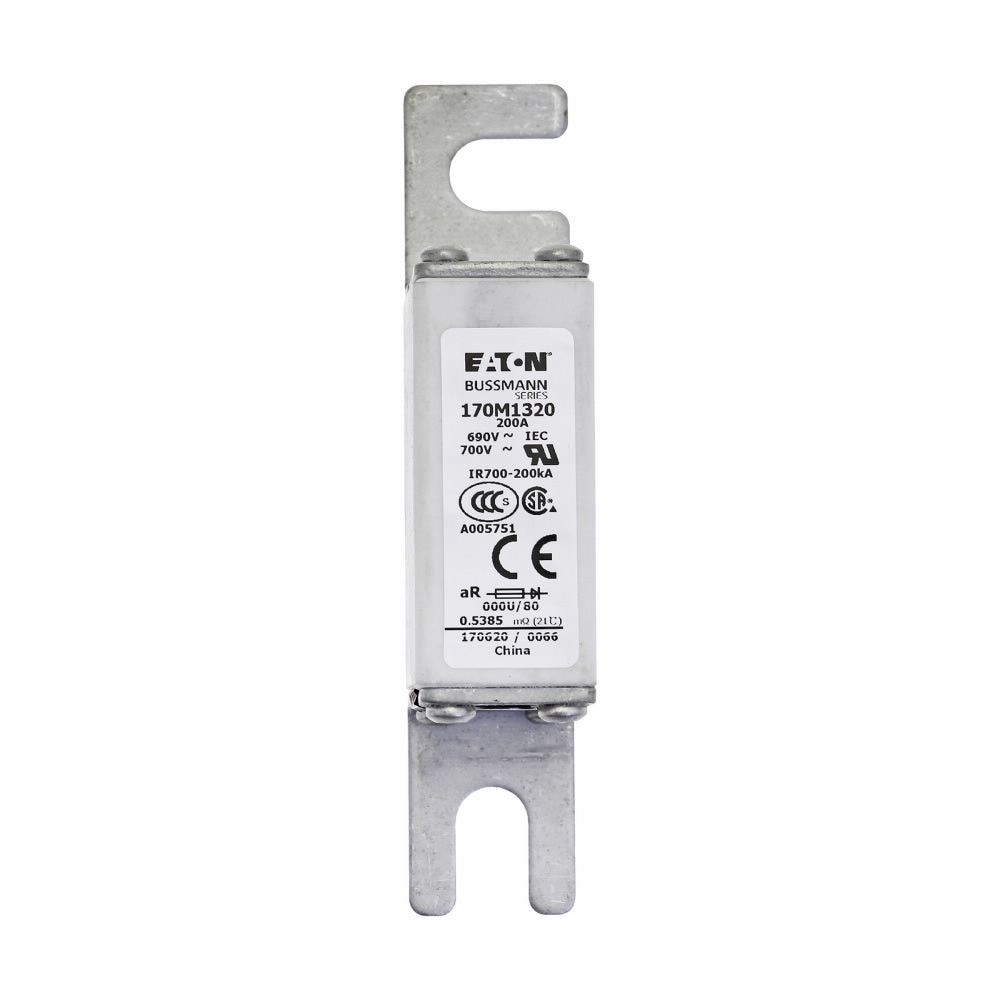

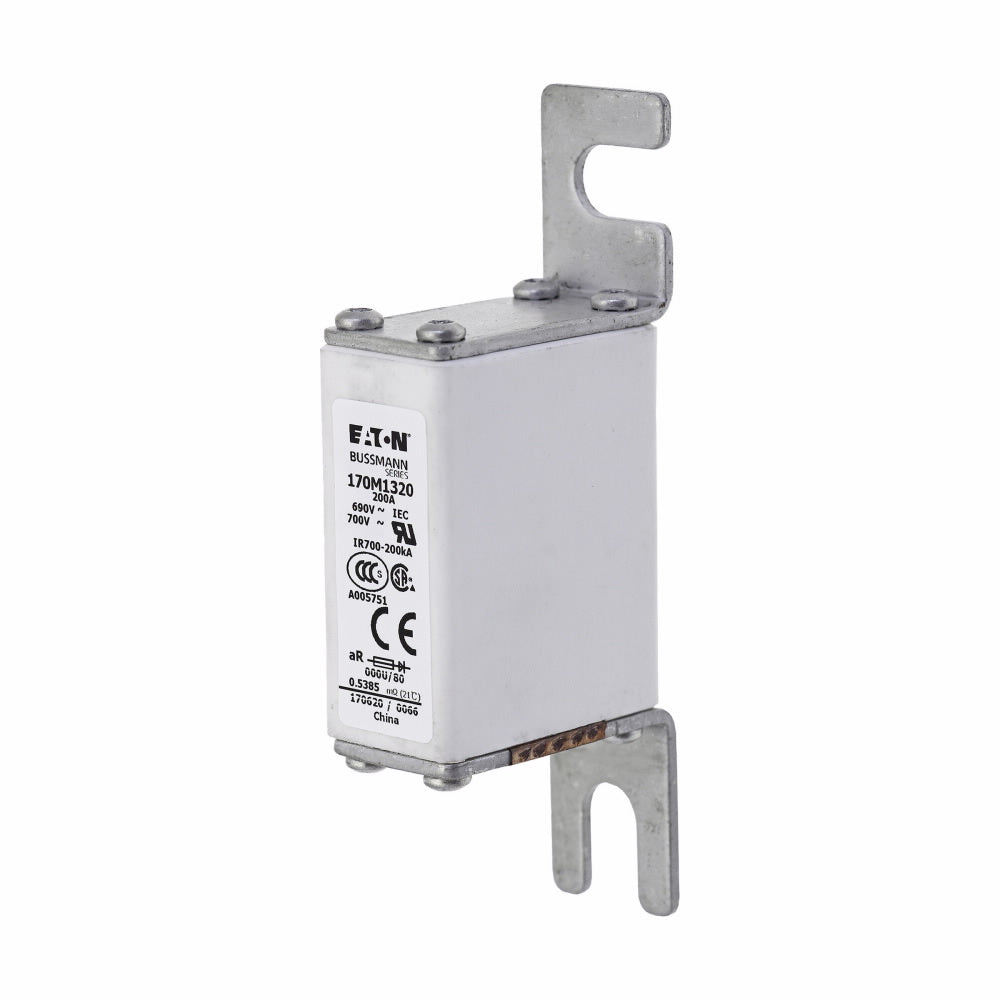

Bussmann 170M1320 BSF Type U/80 High Speed Fuse 200 A 690 VAC 200 kA Interrupt

Product Description

The Bussmann 170M1320 is a Type U/80 high-speed fuse designed for electrical protection in various applications. This fuse has a current rating of 200 A and a voltage rating of 690 VAC. It supports an interrupt rating of 200 kA, ensuring robust protection against overcurrent. The design integrates a square body made from ceramic, optimized for mounting on DIN 43 620 systems.

• Current Rating: 200 A
• Voltage Rating: 690 VAC
• Interrupt Rating: 200 kA

Product Highlights

Durability and performance are key features of this fuse, making it suitable for use in electrical assemblies, panels, and drives.

Product Information

Standard Information

• Brand: Bussmann
• MPN: 170M1320

Technical Specifications

• Amperage Rating: 200 A
• Voltage Rating: 690 VAC
• Interrupt Rating: 200 kA
• Frequency Rating: 45 to 1000 Hz
• Material: Ceramic
• Body Size: 100 mm L x 21 mm W x 40 mm H
• Body Type: Square
• Mounting Type: DIN 43 620
• Terminal Type: Blade End
• Indicating/Non-Indicating: Non-Indicating
• Class: aR
