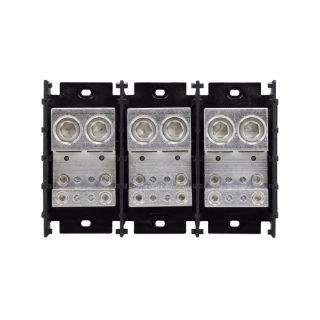

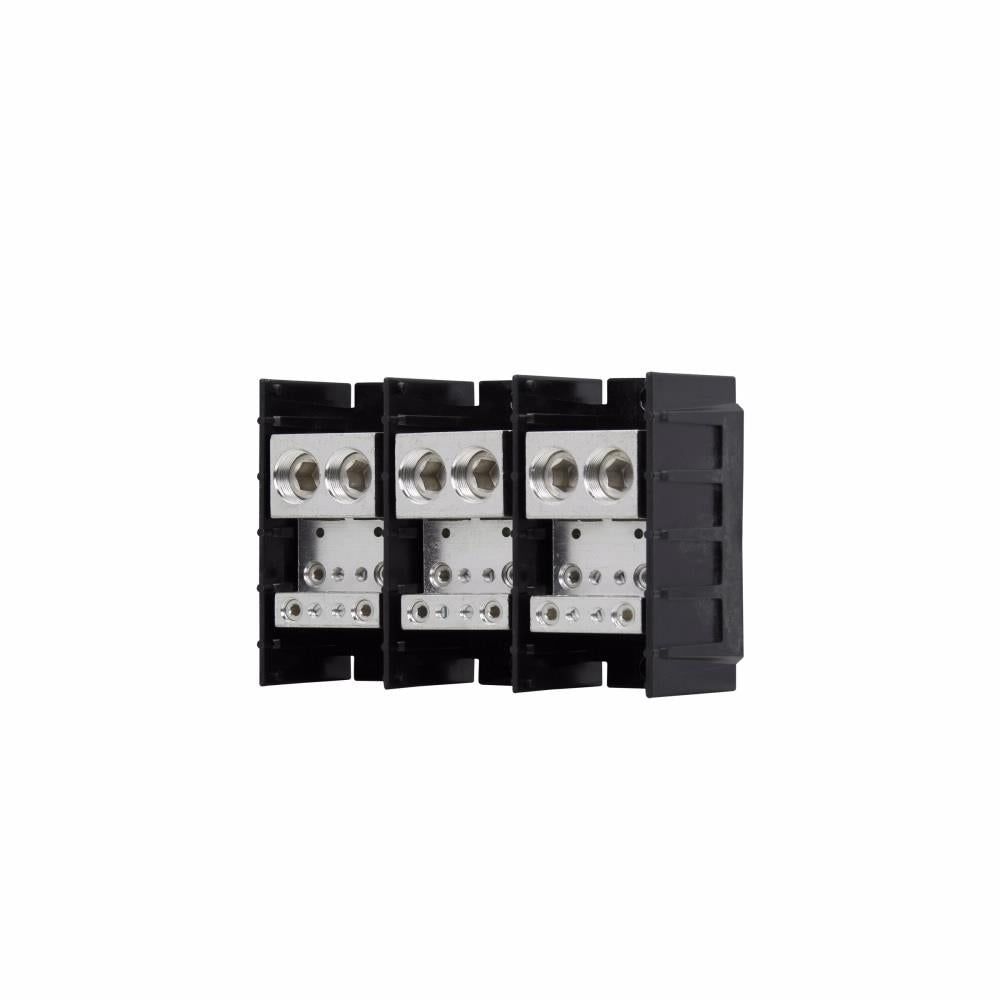

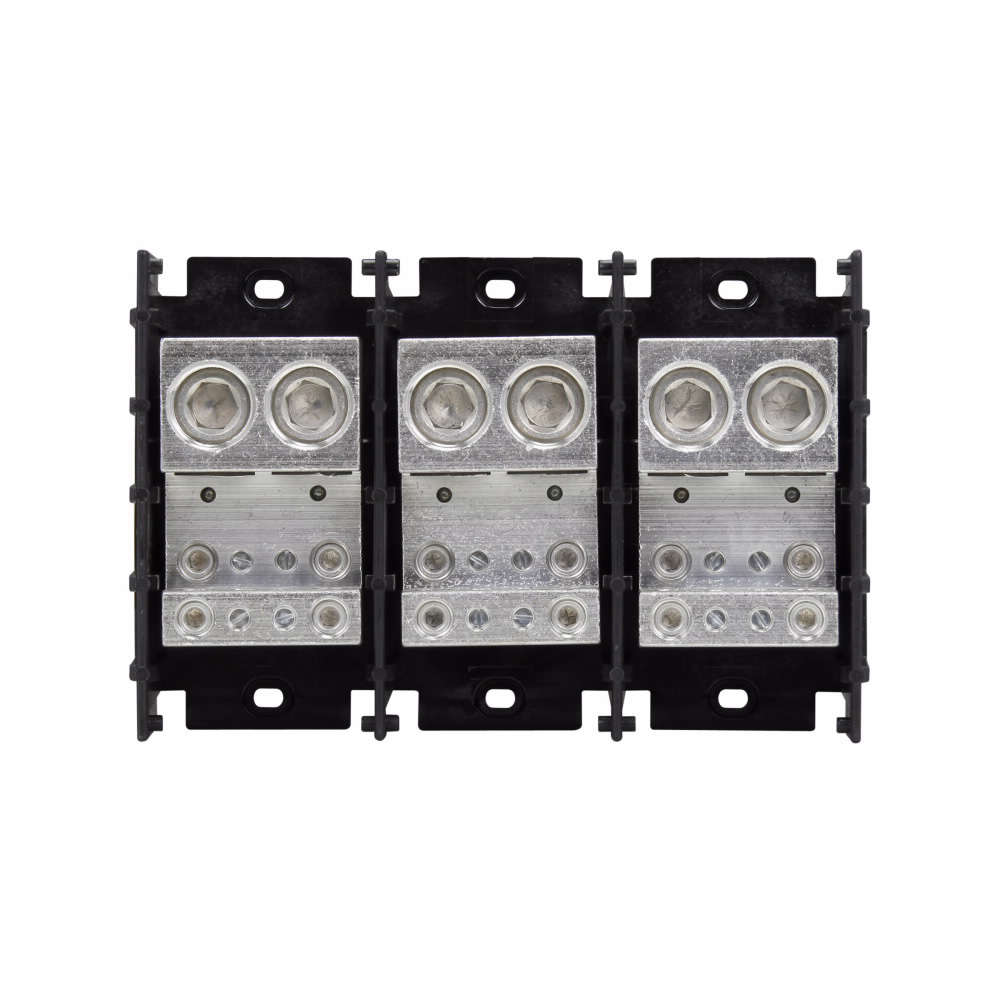

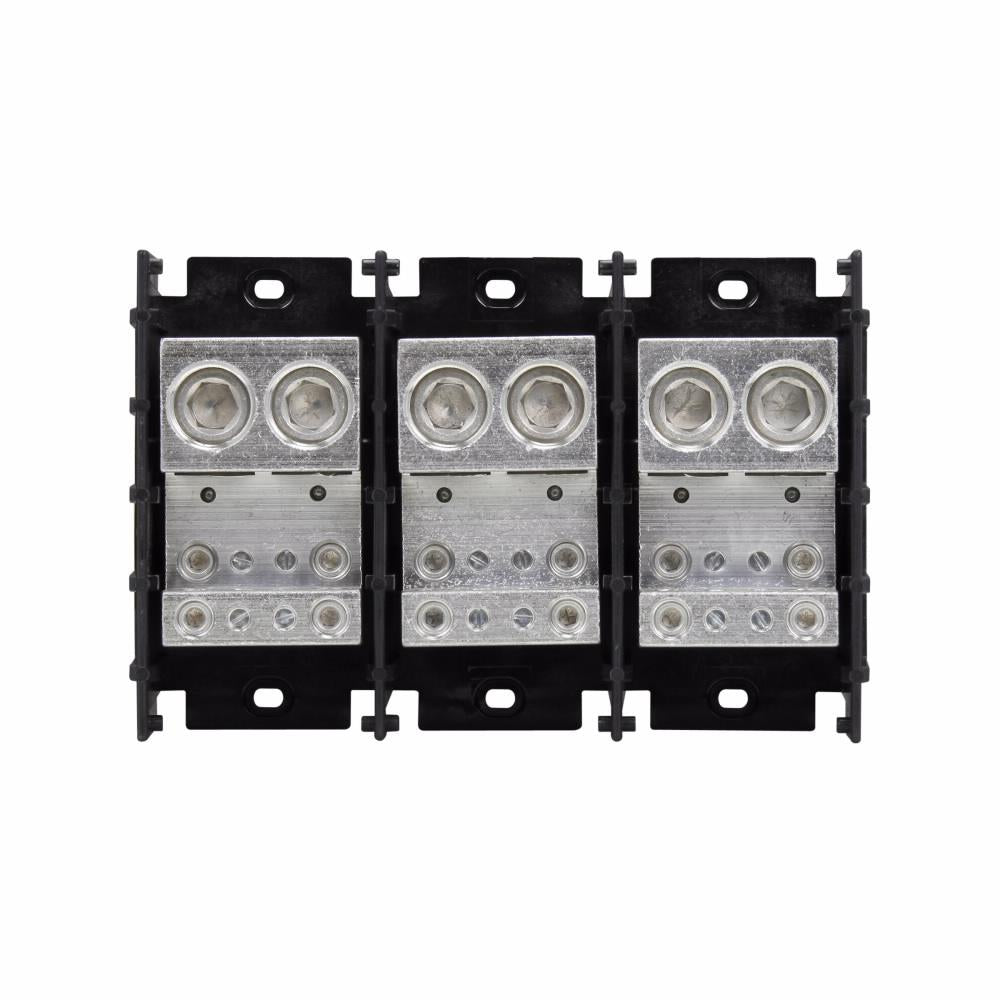

Bussmann 16528-3 BSF Power Terminal Block 600 VAC/VDC 840 A 3 Poles 2 AWG to 600 kcmil

Product Description

Bussmann 16528-3 Power Terminal Block is designed for effective wire management and panel wiring in industrial control environments. This block is rated at 600 VAC/VDC with an amperage capacity of 840 A and features three-pole configurations. It accommodates wire sizes ranging from 2 AWG to 600 kcmil for copper or aluminum connections.

• 3-Pole Configuration for flexible wiring solutions.
• Rated for 600 VAC/VDC for versatile applications.
• Constructed from thermoplastic with optional safety covers available.

Product Highlights

This power terminal block is recognized for use in UL 508A panels and offers a variety of connection options for optimal electrical assemblies.

Product Information

Standard Information

• Brand: Bussmann
• Part Number: 16528-3

Technical Specifications

• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 840 A
• Number of Poles: 3
• Wire Size: 2 AWG to 600 kcmil
• Material: Thermoplastic
• Color: Black
• Dimensions: 8.48 in L x 5.5 in W x 2.93 in H
• Short Circuit Current Rating: 10 kA
