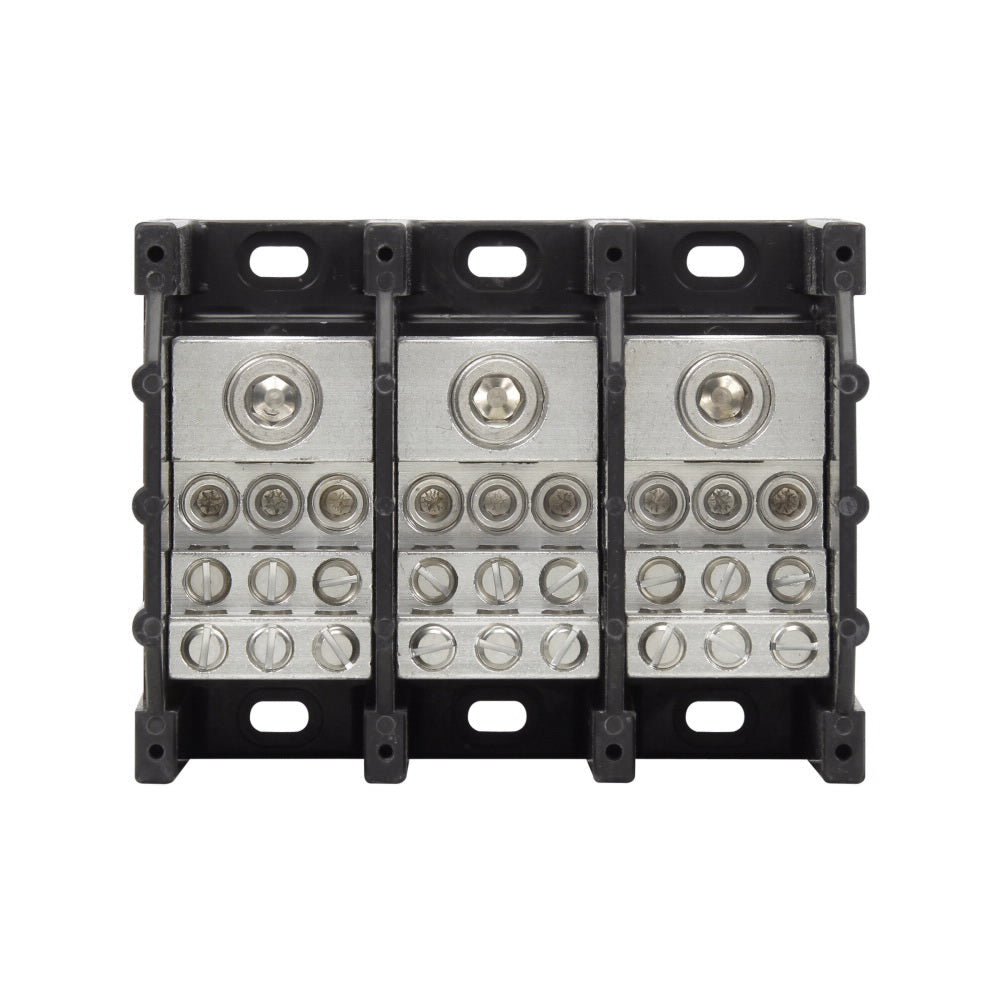

Bussmann 16371-3 TERM BLK Power Distribution Block 600 Vac 600 Vdc 310 A

Product Description

The Bussmann 16371-3 TERM BLK is a power distribution block designed for high voltage applications. It operates at a maximum voltage of six hundred Vac and six hundred Vdc with an amperage rating of three hundred ten amps. This block features a three-pole configuration and is ideal for electrical assemblies, panels, and OEM installations. The molded thermoplastic base offers durability and resistance, while the tin-plated aluminum connectors ensure reliable conductivity.

• Voltage Rating: 600 Vac; 600 Vdc
• Amperage Rating: 310 A
• Short Circuit Current Rating (SCCR): 100 kAIC

Product Highlights

The Bussmann 16371-3 is compliant with RoHS standards, making it suitable for various electrical systems. It is built from molded thermoplastic material to withstand harsh conditions while delivering optimal performance.

Product Information

Standard Information

• Manufacturer: Bussmann
• Family Group: Terminal Blocks

Technical Specifications

• Type: Power distribution block
• Dimensions: 5.21 inches length X 4.00 inches width X 3.32 inches height
• Material: Molded thermoplastic base; tin-plated aluminum connector
• Application: Electric assemblies; Panels - N - EOEM
• Voltage Rating: 600 Vac; 600 Vdc
• Amperage Rating: 310 A
• Special Features: Short Circuit Current Rating 100 kA
• UPC: 05171227139
