Bussmann 16370-3 Power Distribution Block 600 Volt 15-Pack

Product Description

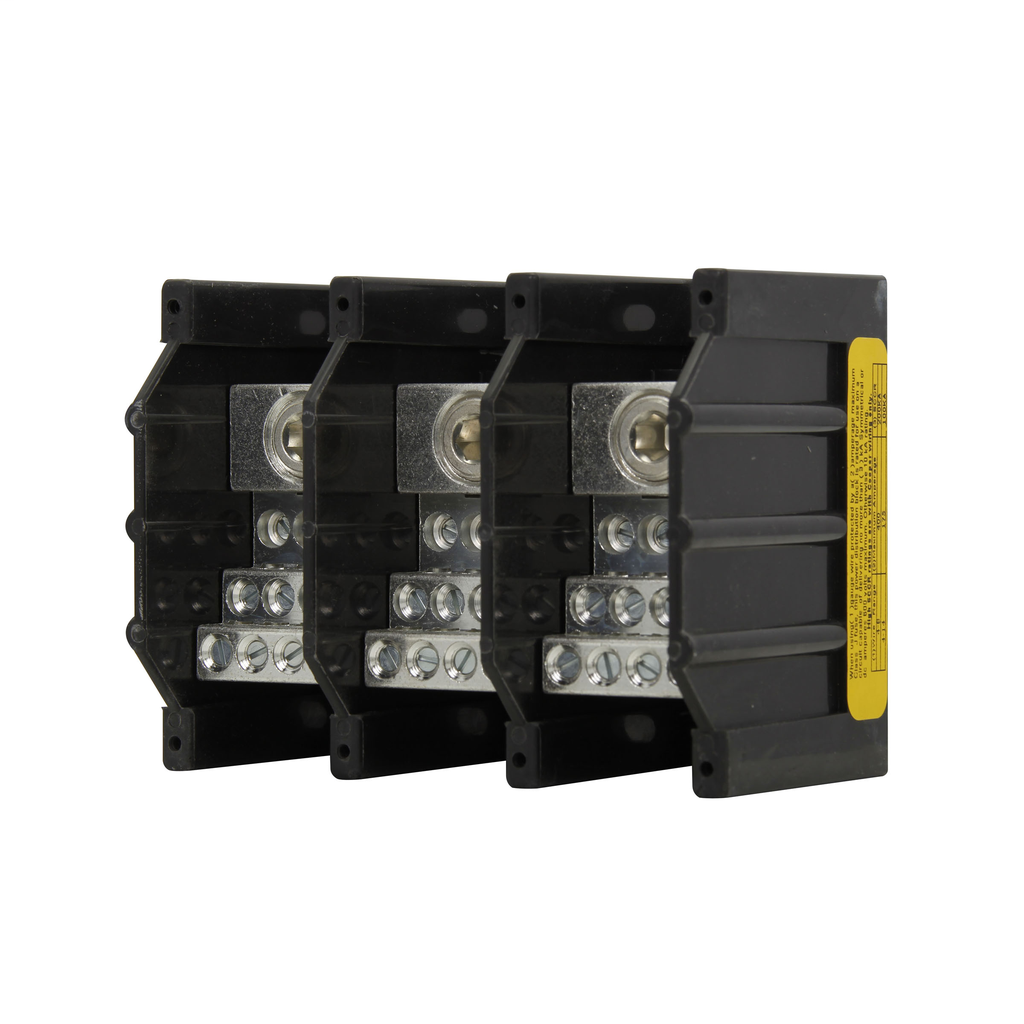

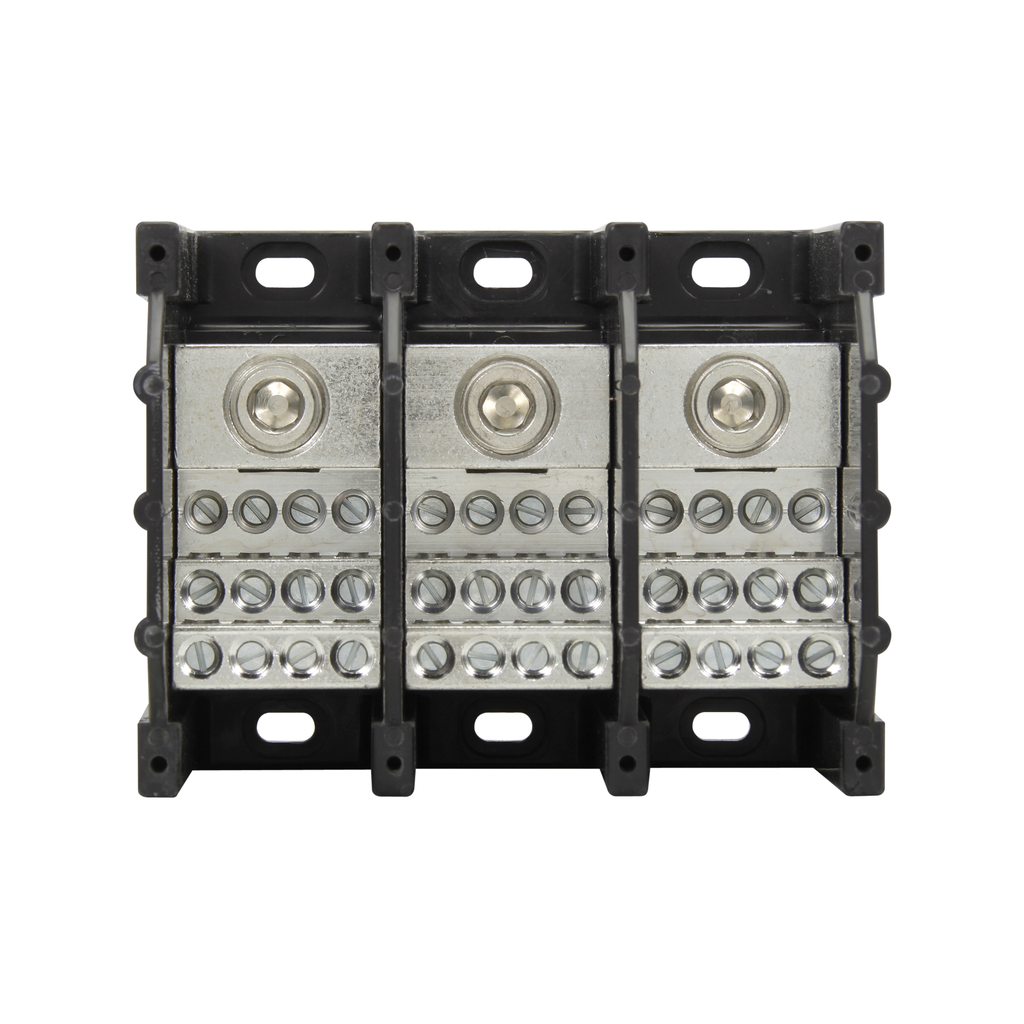

The Bussmann Series 16370-3 is a power distribution block designed for use in electrical assembly applications. This product operates at a maximum of six hundred volts AC and six hundred volts DC with a current rating of three hundred ten amps. It features a three-pole design that is suitable for various industrial and commercial environments. The molded thermoplastic base provides durability, while the tin-plated aluminum connectors ensure reliable connections.

• Rated for 600 Vac and 600 Vdc
• Three-pole configuration
• Constructed from durable thermoplastic

Product Highlights

This power distribution block is ideal for electrical assemblies, panels, and OEM applications. It can handle wire sizes from six AWG to three hundred fifty KCMIL for copper and aluminum lines, making it versatile for different installation needs.

Product Information

Standard Information

• Product Type: Barrier
• Weight: 1.86 lb

Technical Specifications

• Voltage: 600 Volt
• Amperage: 310 Amp
• Material: Thermoplastic
• Number of Poles: 3
• Size: 5.21 inches in length, 4.00 inches in width, 3.32 inches in height
• Wire Size Compatibility: 6 AWG-350 KCMIL (Copper/Aluminum) Line, (12) 14-4 AWG (Copper) or 12-4 AWG (Aluminum) Load
• Standards: CSA, UL
