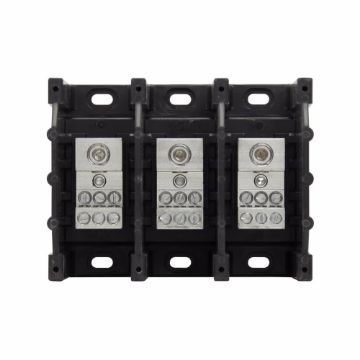

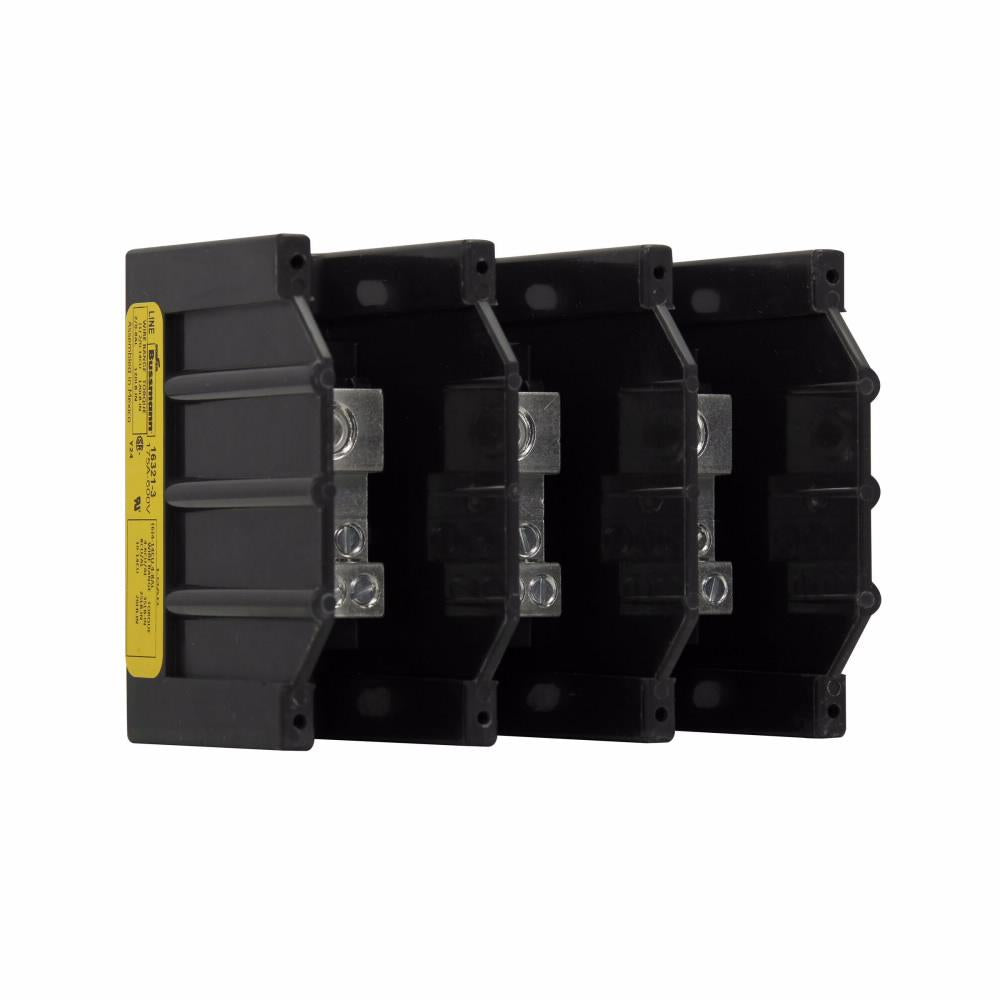

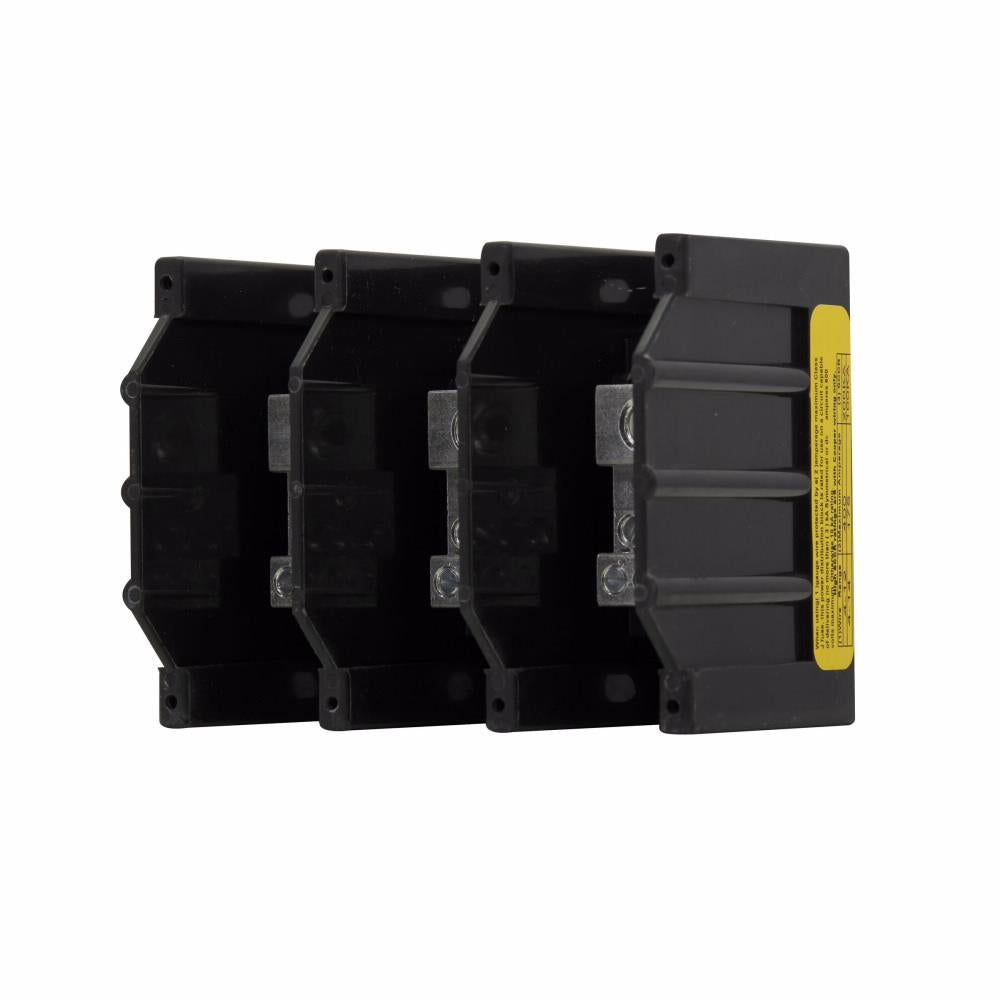

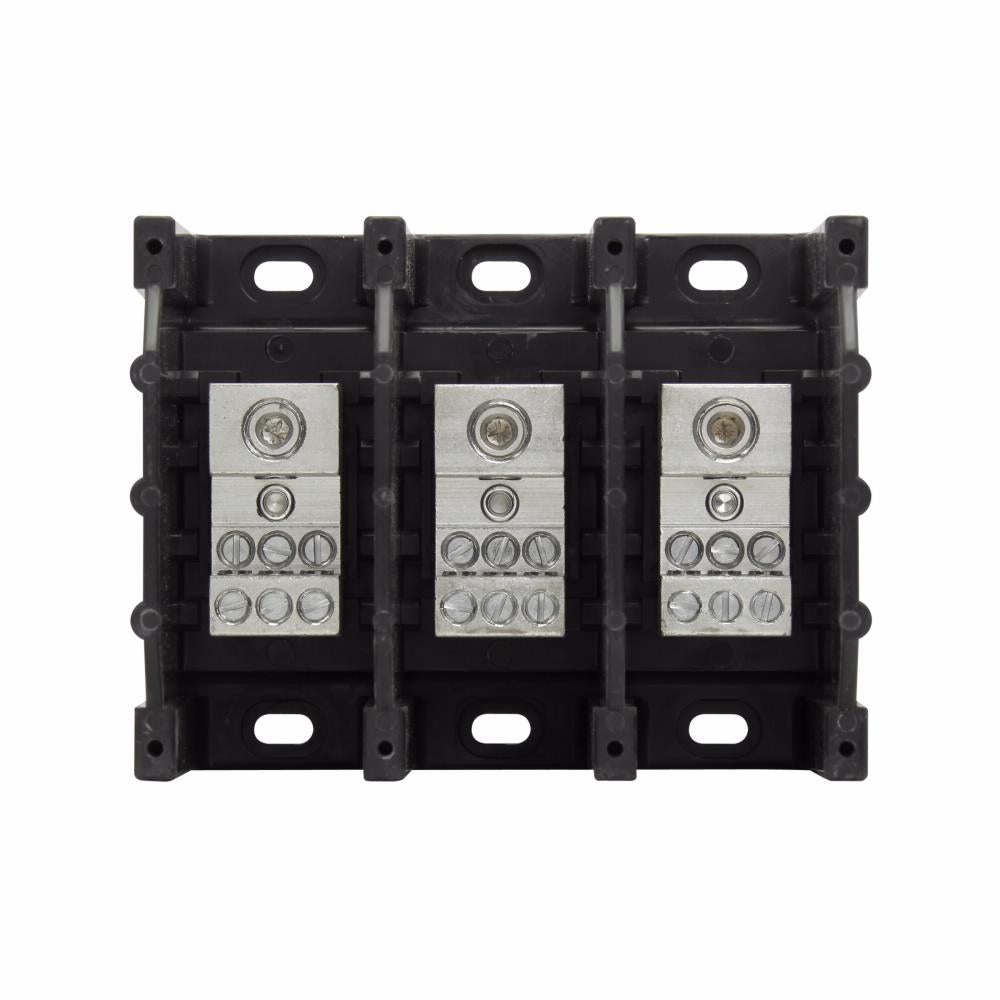

Bussmann 16321-3 BSF 600 VAC/VDC Barrier Power Distribution Block

Product Description

The Bussmann 16321-3 is a barrier power distribution block designed for use in electrical assemblies and panels. This component supports voltages up to 600 VAC/VDC and is rated for a maximum current of 175 A. It has three poles and accommodates various wire sizes, making it versatile for different applications.

• Rated for dual wire port application.
• Supports up to 100 kA short circuit current.
• UL recognized for use in UL 508A industrial control panels.

Product Highlights

The Bussmann 16321-3 offers flexibility in wiring and can simplify wire management within panels. Ideal for industries needing reliable power distribution solutions.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 175 A
• Number of Poles: 3
• Wire Size: 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (6) 14 to 4 AWG Cu, 8 to 4 AWG Al Load
• Dimensions: 5.21 in L x 4 in W x 3.32 in H
• Material: Aluminum/Thermoplastic
• Primary Connections/Pole: (1) Screw
• Secondary Connections/Pole: (6) Screw
