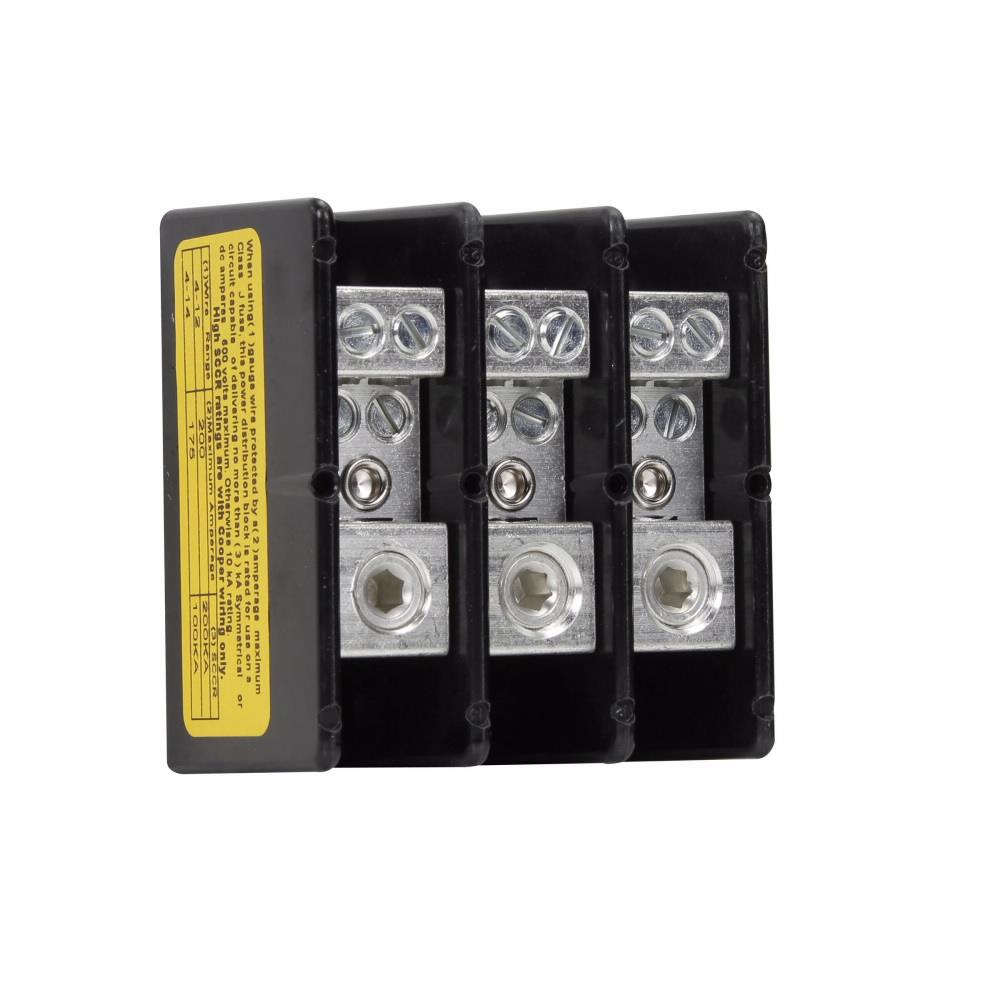

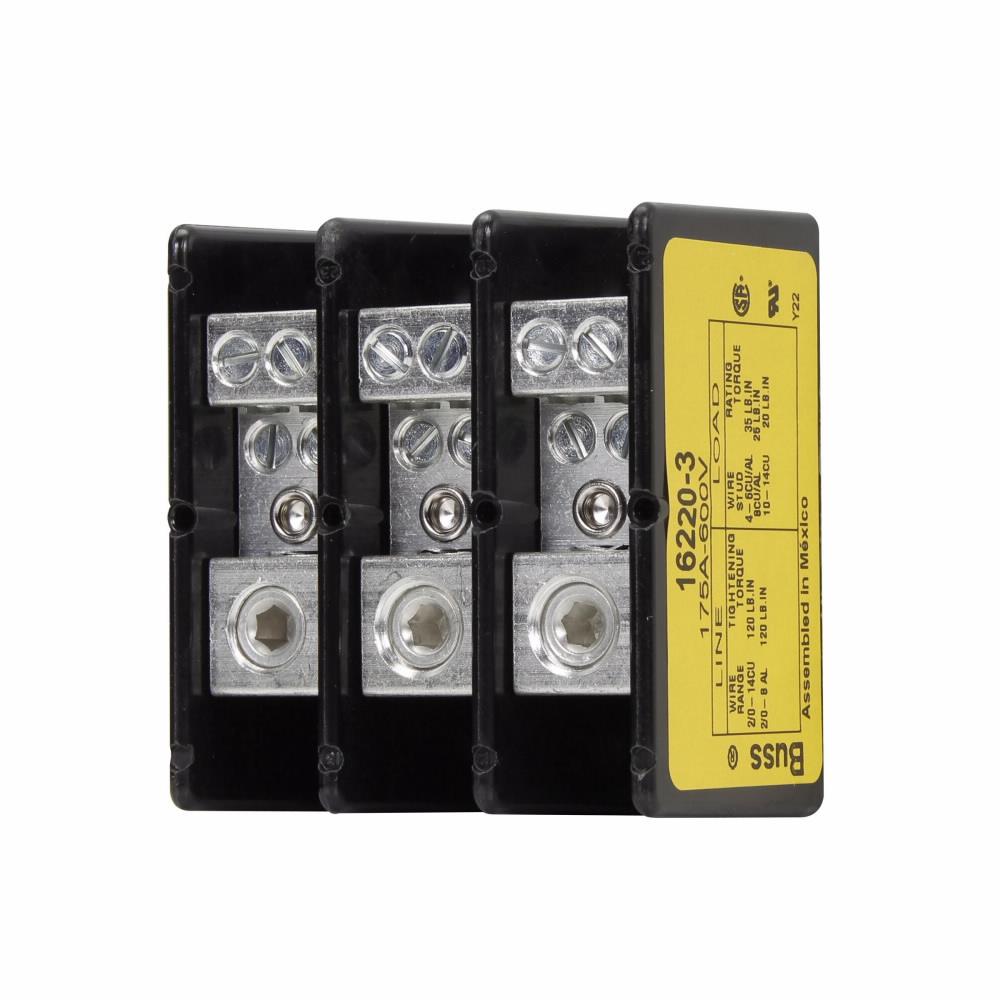

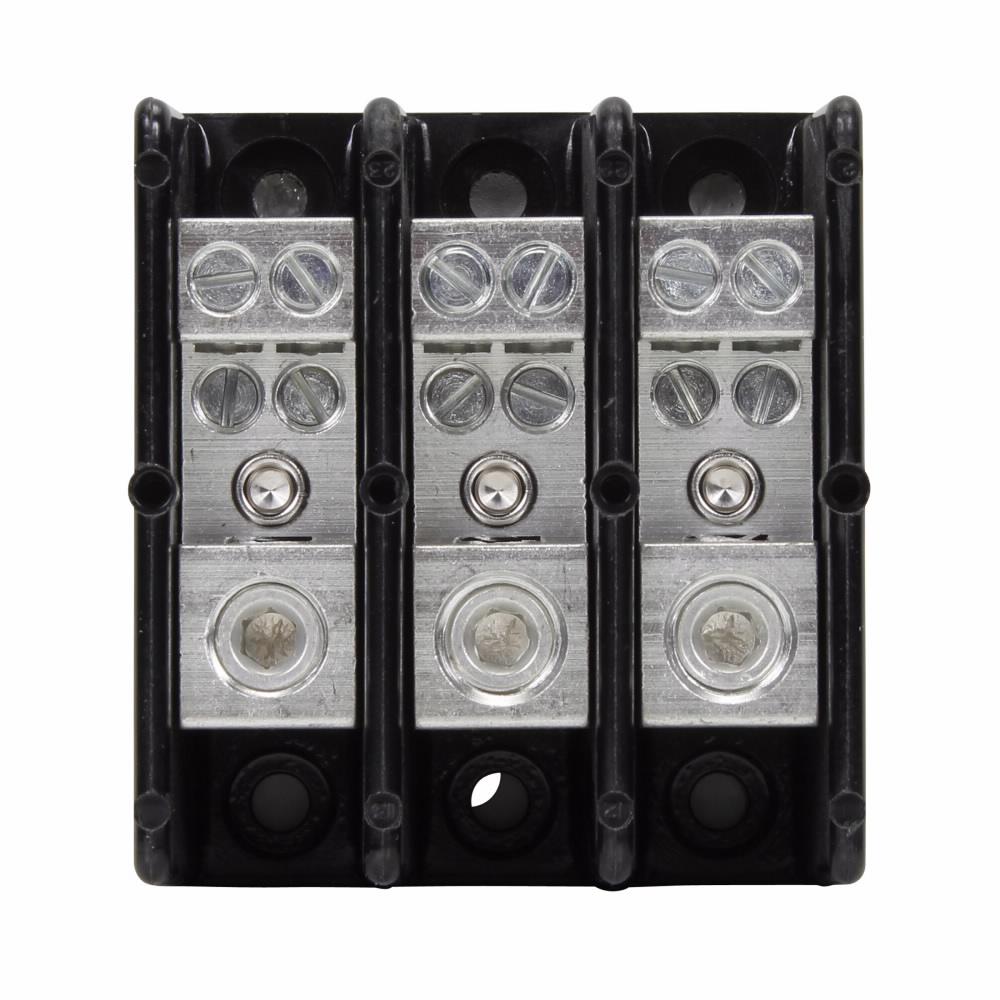

Bussmann 16220-3 BSF Power Distribution Block 600 VAC/VDC 175 A (3 Poles)

Brand: BUSSMANN
SKU: 16220-3
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Bussmann Magnum power distribution block, MPN 16220-3, is designed for efficient electrical management in various applications. It is rated for 600 VAC/VDC and accommodates current up to 175 A, making it suitable for high-demand environments.

  • Offers dual wire port capability for enhanced connectivity.
  • UL recognized for safety and compliance in industrial control panels.
  • Constructed from durable thermoplastic material.

Product Highlights

This barrier type distribution block provides versatile connection options and is factory configured for direct installation.

Product Information

Standard Information

  • Brand: Bussmann
  • Type: Barrier
Technical Specifications
Voltage Rating
600 VAC/VDC
Amperage Rating
175 A
Number of Poles
3
Primary Connections/Pole
(1) Screw
Secondary Connection/Pole
(4) Screw
Wire Size
14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (4) 14 to 4 AWG Cu, 8 to 4 AWG Al Load
Dimensions
2.7 in L x 2.88 in W x 1.75 in H
Short Circuit Current Rating
10 kA
Material
Thermoplastic
Color
Black
Series
162
Country of Origin
MX
