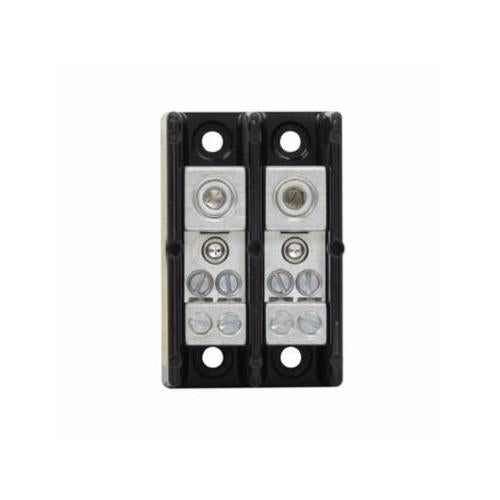

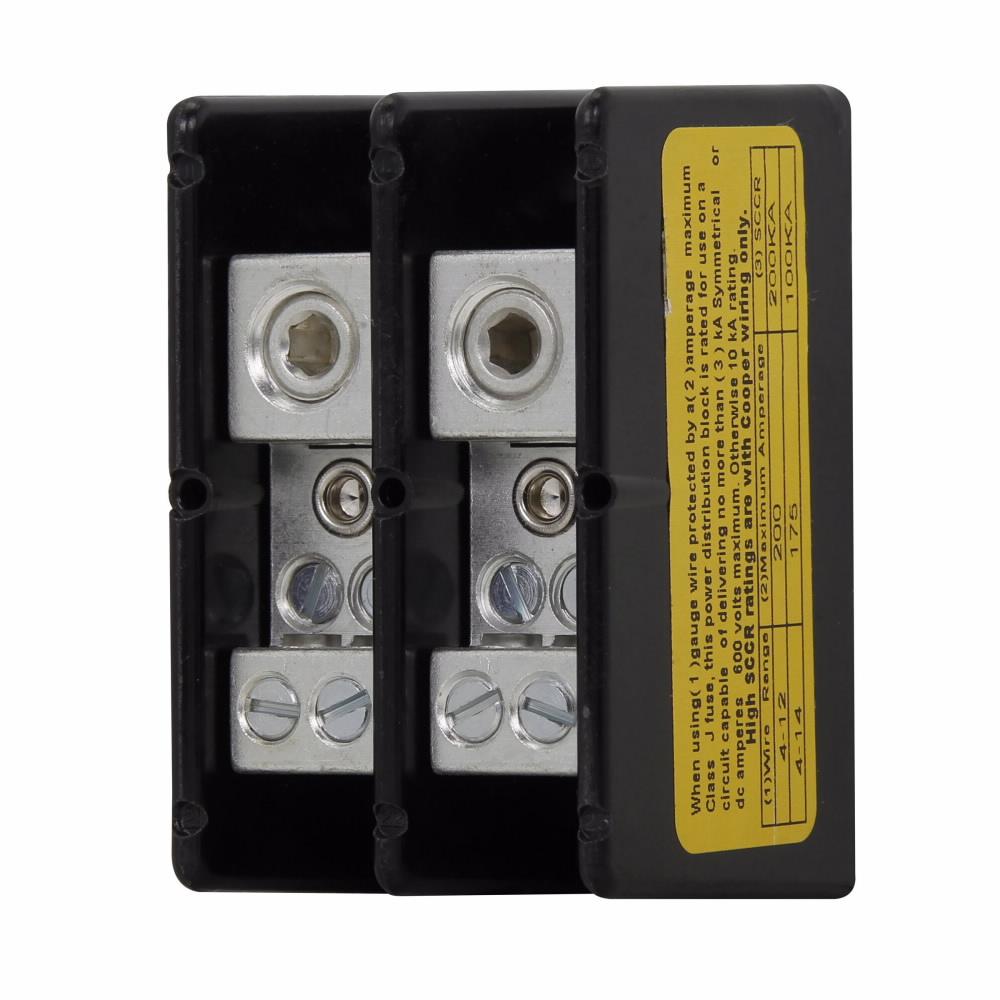

Bussmann 16220-2 Power Distribution Block 600 VAC/VDC 175 A 2 Poles

Product Description

Bussmann 16220-2 is a power distribution block designed for effective wiring and management in electrical panels. This product is UL recognized, ensuring compliance with industry standards for safety and performance.

• Rated for 600 VAC/VDC
• Current rating of 175 A
• 2 poles with various wire size configurations

Product Highlights

This power distribution block allows for greater flexibility in connecting various wire sizes and types. The robust design is suitable for industrial control panels.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 175 A
• Number of Poles: 2
• Wire Size: (2) 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (6) 14 to 4 AWG Cu, 8 to 4 AWG Al Load
• Dimensions: 1.88 inches L x 2.88 inches W x 1.75 inches H
• Material: Thermoplastic
• Short Circuit Current Rating: 10 kA
• Type: Barrier
