Eaton HPF-FF BUSS FUSEHOLDER 5171274048 480 V 30 A

Product Description

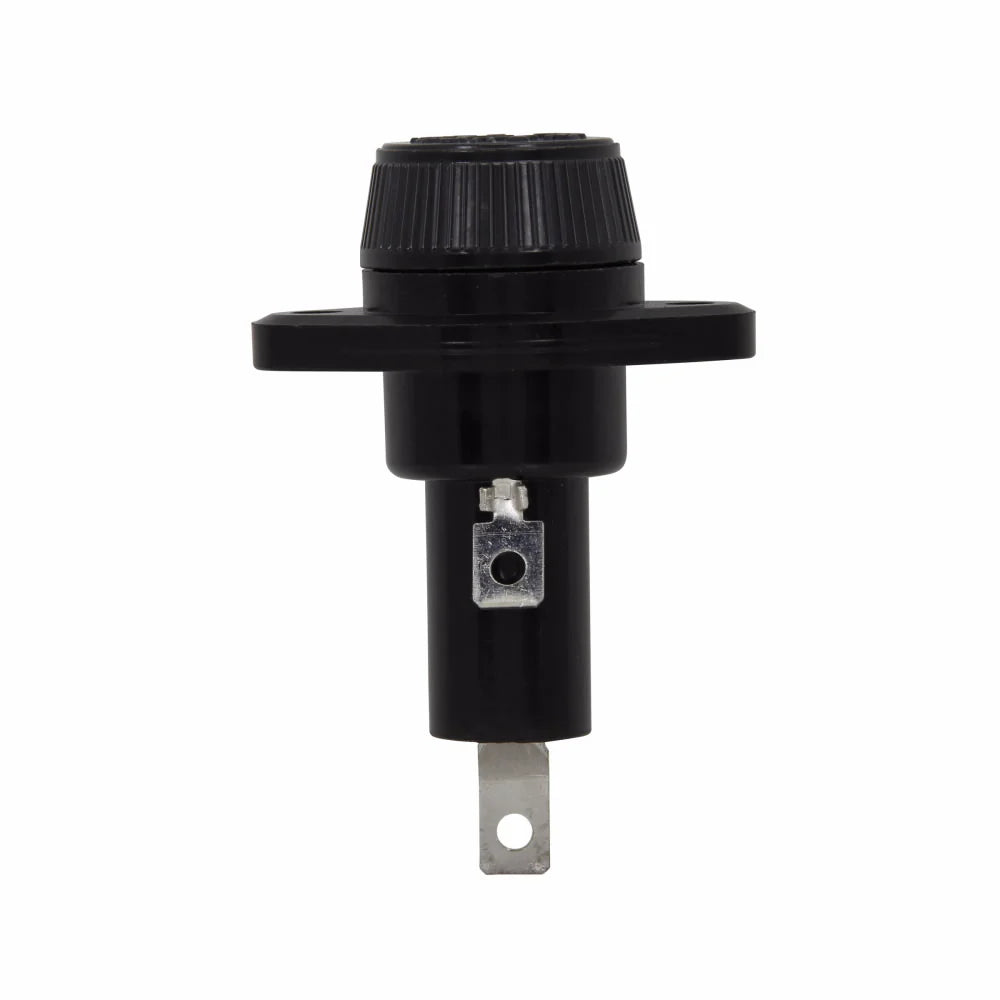

The Eaton HPF-FF fuse holder assembly is designed for use with SC-25 or SC-30 fuses. This holder supports a voltage rating of four hundred eighty volts and an amperage rating of thirty amps. It features a panel mount design which makes installation straightforward in various applications including branch circuit protection and electrical assemblies. The product allows for quick connections with its half-inch quick connect terminal, accommodating both quick connect and solder types.

• Suitable for SC series fifteen amp, twenty-five amp, and thirty amp fuses.
• Mounting type is panel, for ease of installation.
• The product includes a screw type knob for secure operation.

Product Highlights

The HPF series holder is a reliable solution for circuit protection needs. It effectively replaces the Bussman HPC series fuse holders.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: HPF-FF

Technical Specifications

• Voltage Rating: 480 V
• Amperage Rating: 30 A
• Fuse Length: 1-5/8 in
• Fuse Diameter: 13/32 in
• Connection Type: 1/2 in Quick Connect Terminal
• Dimensions: 1.78 in Dia x 2.69 in L
• Color: Black
• Standards/Approvals: CE Certified, RoHS Compliant, UL Listed
