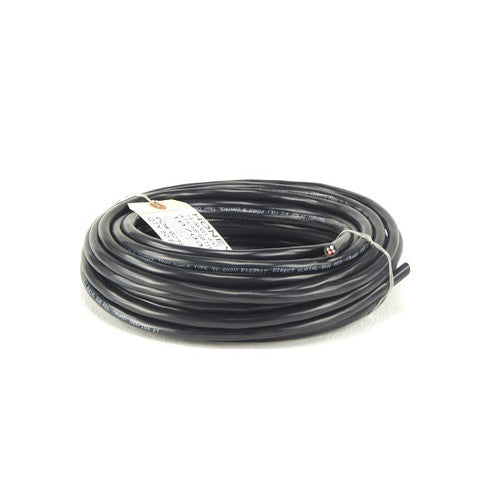

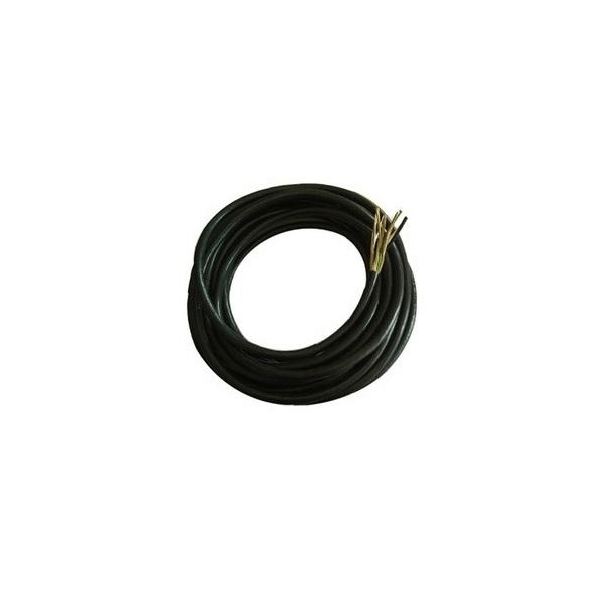

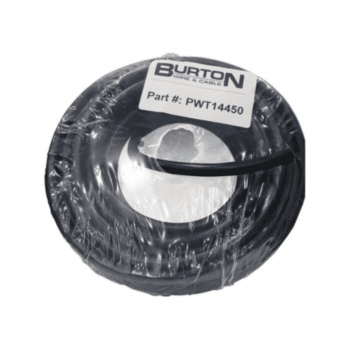

Burton Wire And Cable PWT14450 Mini Split Communication Cable 600V 14-7R CU 4/C THHN AIA PVC- 50 Feet

Product Description

The BURTON WIRE AND CABLE PWT14450 Mini Split Communication Cable is a 600V 14-7R CU 4/C THHN AIA PVC cable that comes in a 50 feet length. This 14/4 AWG 600V rated wire is designed for installing mini split heat pump or air conditioning systems, providing electrical power to the indoor air handler from the outdoor unit and facilitating communication between the units.

• 50 ft Mini Split Wire
• 14/4 AWG
• 600V Rated

Product Highlights

This mini split communication cable is 600V rated and features 4 conductors, sunlight resistance, and stranded soft drawn bare copper.

Product Information

Standard Information

• Brand: BURTON WIRE AND CABLE
• Manufacturer Part Number: PWT14450

Technical Specifications

• Brand: Burton
• Model #: PWT14450
• Direct Burial: Yes
• UL Listed: Yes
• CUL Listed: No
• Type: Mini Split
• UV Resistant: Yes
• Cable Type: THHN
• Standards: UL1277
• Wire Gauge: 14 AWG
• Conductor Quantity: 4
• Insulation Type: PVC with Nylon
• Flame/Smoke Rating: UL 1277 Tray Cable
• Jacket Material: Polyvinyl Chloride (PVC)
• Conductors: 14 AWG STR 19/.0147" Bare Copper
• Temperature Rating: -4°F to 194°F (-20°C to 90°C)
• Application: Industrial Power or Control Circuits
• Approvals: Tray Cable - UL 1277
