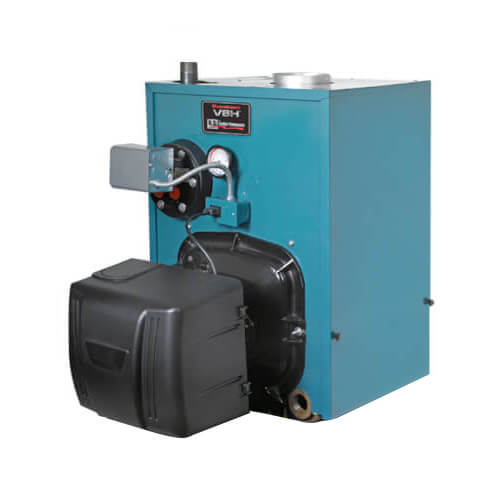

Burnham PV8H7WEC-TBWN V8H Water Boiler 222,000 BTU (Cast Iron 8 in Flue) 110355-01

Product Description

The Burnham PV8H7WEC-TBWN is a 222,000 BTU oil-fired V8H water boiler configured without a tankless coil and equipped with a Beckett burner. It delivers a 222,000 BTU net output (294,000 BTU input; 255,000 DOE rating) at 86.1% AFUE and uses cast iron sectional construction with an insulated jacket and atmospheric venting. Standard equipment includes Intelligent Oil Boiler Control with thermal purge and LED diagnostics for hydronic heating applications.

• 222,000 BTU net output; 294,000 BTU input; 255,000 DOE rating; 86.1% AFUE
• Cast iron sectional design with insulated jacket, 8 in flue connection, dimensions 32.25 in H x 24 in W x 37-1/8 in D, weight 1003 lb
• Beckett oil burner, 2.1 GPH capacity, atmospheric venting, Intelligent Oil Boiler Control with thermal purge and LED status/troubleshooting display

Product Highlights

Cast iron hydronic oil boiler, 86.1% AFUE, Beckett burner, Intelligent Oil Boiler Control

Product Information

Standard Information

• Brand: BURNHAM
• Manufacturer Part Number: PV8H7WEC-TBWN

Technical Specifications

• Brand: Burnham
• MPN: PV8H7WEC-TBWN
• Model: PV8H7WEC
• BTU Output: 222,000 BTU
• BTU Input: 294,000 BTU
• DOE Rating: 255,000 BTU
• IBR Rating: 222,000 BTU
• Efficiency: 86.1% AFUE
• Fuel Type: Oil
• System Type: Hydronic (Water)
• Material: Cast Iron
• Vent Type: Atmospheric
• Burner Brand: Beckett
• Burner Capacity: 2.1 GPH
• Flue Connection: 8 in
• Dimensions: 37.125 in L x 24.0 in W x 32.25 in H
• Weight: 1003 lb
• Includes: No tankless coil
• Application: Heating
• Replacement parts: 110355-01, 80160452, 81660319, 110353-01, 80861606, 806603061, 103445-01, 103852-01, 102232-01
