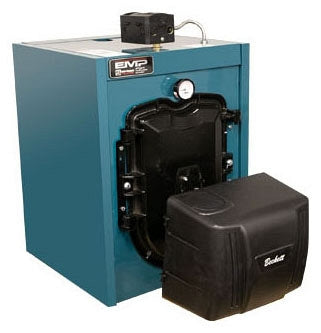

Burnham EMP182E-TL Oil Water Boiler Less Burner 182 mbh (Floor Mount) EMP182E-TL

Product Description

Burnham EMP182E-TL is an oil-fired water boiler with a 182 mbh burner input and 160 mbh DOE heating capacity, rated at 87% AFUE. The cast iron, floor-mounted boiler has a 7 in diameter flue outlet for chimney venting, 14.46 gallon water/steam content, and 120 V AC electrical supply. The unit ships packaged un-assembled and includes Hydrolevel HydroStat 3250+ control with LWCO and a Taco ECM-007e circulator pump.

• 182 mbh burner input; 160 mbh DOE heating capacity; 87% AFUE
• Cast iron housing, floor mounting, 7 in flue outlet, 14.46 gallon water/steam content, 120 V AC
• Includes Hydrolevel HydroStat 3250+ with LWCO and boiler reset, and Taco ECM-007e ECM circulator; packaged un-assembled; optional direct vent kit

Product Highlights

Oil-fired cast iron hydronic boiler with integrated Hydrolevel control and Taco ECM circulator; packaged for field assembly and chimney venting.

Product Information

Standard Information

• Brand: BURNHAM
• Manufacturer Part Number: EMP182E-TL
• Country of Origin: US

Technical Specifications

• Brand: Burnham
• Manufacturer Part Number: EMP182E-TL
• Series: EMP
• Model Type: Efficient
• AFUE Rating: 87%
• Burner Input: 182 mbh
• Heating Capacity (DOE): 160 mbh
• Fuel Type: Oil
• Housing Material: Cast iron
• Mounting Type: Floor
• Vent Type: Chimney
• Flue Outlet Size: 7 in diameter
• Input Voltage: 120 V AC
• Water/Steam Content: 14.46 gallons

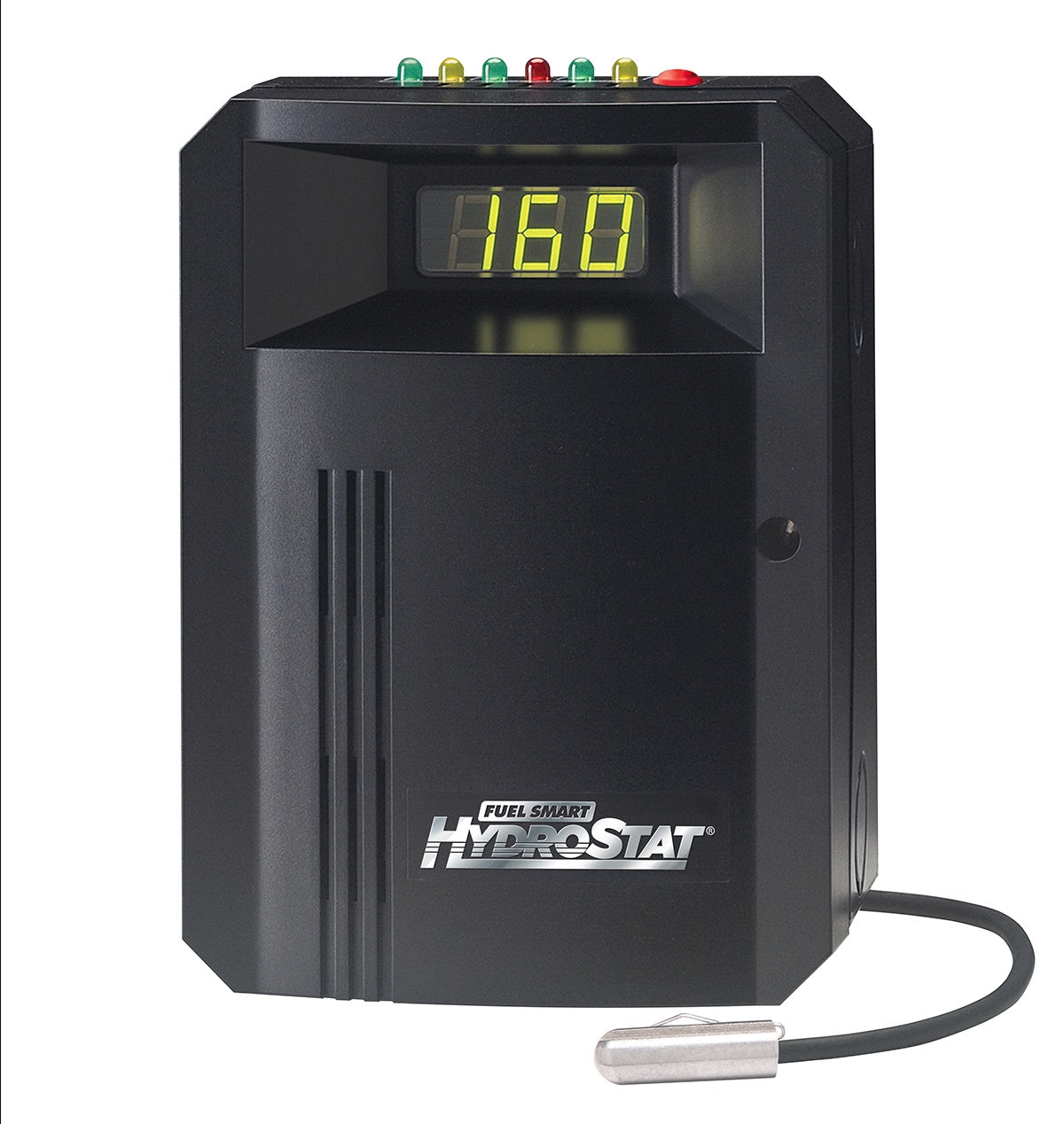

• Controls: Hydrolevel HydroStat 3250+ with LWCO and boiler reset
• Included Pump: Taco ECM-007e ECM circulator pump and hydronic control
• Features: Packaged un-assembled; reversible swing burner door; removable rear plates; optional direct vent kit; return blending manifold
• Standards Approvals: AHRI Certified; ASME specified; cETLus Listed
• Country Of Origin: US
• UPC: 672616789725
