Burner Valve 1/4 MPT X Adj. Orifice 402601-A48 for Hobart 402601-A48

Product Description

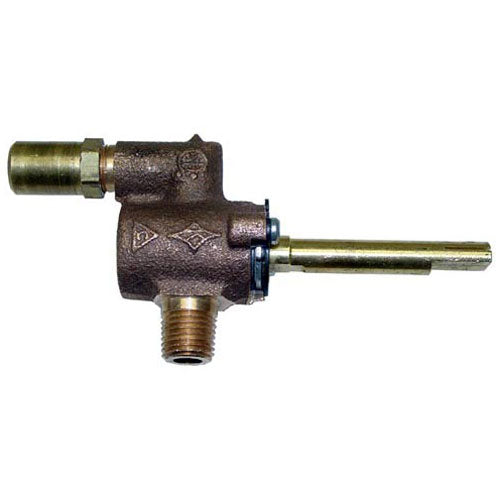

This item for Hobart 402601-A48 is a burner valve designed for use in commercial cooking appliances. It features a one-fourth-inch MPT connection and an adjustable orifice, making it a versatile choice for various applications.

• Compatible with Southbend and Vulcan ranges
• Rotary control for easy on/off operation
• Includes a one-quarter-inch stem for precise adjustments

Product Highlights

This burner valve is crucial for ensuring effective heat control in cooking equipment.

Product Information

Standard Information

• Weight: 0.57 lbs
• Dimensions: 5.125 inches (L) x 3 inches (W) x 1.375 inches (H)

Technical Specifications

• Connection Type: 1/4 MPT
• Orifice Size: 1/2-27 with adjustable hood
• Stem Diameter: .240 inches
• Inlet to End of Stem: 3 inches
• Stem Length: 2-1/4 inches
• Angle: 90 degrees
• Compatible Models: Southbend Range Series 163, 1363, 1423; Vulcan Range GH30, GH30C, GHM30, GHM30C, MG24CB, 7830, 7830A, 7851, M7830, M7851, SG7830
