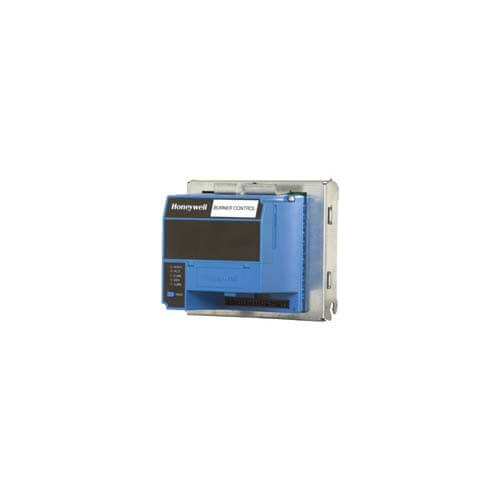

Honeywell R7140M1007 Upgrade Replacement Programming Control for BC7000L With PM720M Or R4140M

Product Description

The Honeywell R7140M1007 is a microprocessor-based burner control module made for gas, oil, or combination fuel applications. This model replaces older controls like the BC7000 and R4140 series, providing improved functionality for single burner systems.

• Provides flame supervision and automatic burner sequencing.
• Compatible with ST7800 purge timers and R78XX amplifiers.
• Features self-diagnostics for quick troubleshooting.

Product Highlights

This replacement control offers enhanced features to manage burning operations efficiently while ensuring safety and reliability.

Product Information

Standard Information

• Brand: Honeywell
• MPN: R7140M1007

Technical Specifications

• Functions: Automatic sequencing, flame supervision
• Power Supply: 120V
• Frequency: 50 Hz, 60 Hz
• Weight: 3.95 lbs
• Shipping Dimensions: 10 inches x 10 inches x 8.5 inches
• Flame Establishing Period - Pilot: 4 sec or 10 sec
• Flame Establishing Period - Main: 10 sec, 15 sec, 30 sec, or intermittent
• Required Components: UR7847, R7848, R7849, ST7800 purge timer card
