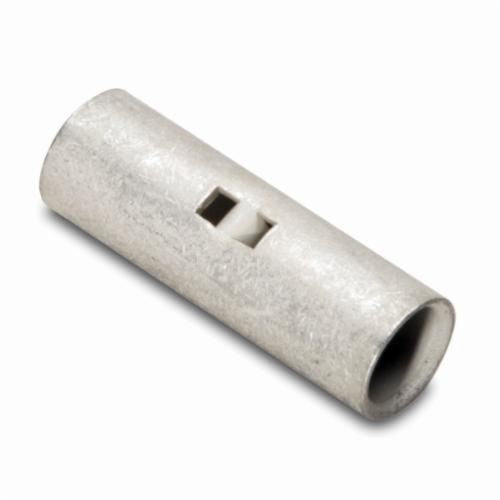

Burndy YSV6CLBOX Hylink uninsulated compression butt splice 6 AWG

Product Description

The BURNDY YSV6CLBOX HYLINK uninsulated compression butt splice features a seamless standard barrel and accommodates #6 AWG stranded/solid, AN, and aircraft cables. This copper Hylink splice is 1.12" in length and has a maximum voltage of 600V, suitable for aircraft, light-duty industrial, and general-purpose applications.

• Manufactured from seamless tubing
• Electrolytic copper provides maximum conductivity and excellent crimp forming properties
• Electro-tin plating provides durable long lasting resistance to corrosion

Product Highlights

The HYLINK splice connectors feature inspection holes for easy visual inspection of proper wire insertion and positive center wire stops for proper depth of wire insertion.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YSV6CLBOX
• Country of Origin: USA

Technical Specifications

• Applications: For Aircraft, Light Duty Industrial And General Purpose Applications
• Conductor Size: 6 AWG
• Connection Type: Seamless Butt Splice
• Material: Copper
• Max Voltage: 600 V
• Plated?: Yes
• Plating Type: Tin
• Size: 1.12 IN Length
• Type: Splice
• Voltage: 600 Volt
• Brand: Hubbell Incorporated
• Sub Brand: Burndy
• 12-Digit UPC: 781810534700
• Product UPC: 78181053470
• Height: 0.31 Inch
• Length: 1.12 in
• Overall Length: 1.12 in
• Width: 0.31 in
• Buy American Compliant: Y
• CSA: No
• Barrel Type: Chamfered, Seamless Butt
• Conductor Type: Solid, Stranded
• Diameter: 0.31 in
• Finish: Tin-Plated
• Package Type: Box
• Voltage Rating: 600 V
• Wire Size: 6 AWG
• Wire Strip Length: 1/2 in
• Application: For Aircraft, Light Duty Industrial and General Purpose Applications
• Standard & Approvals: CSA Certified, RoHS Complaint, UL Listed
• Barrel Size: 0.31 in OD
• ECCN: EAR99
• Country of Origin: US - United States
• UPC: 78181053470
• UNSPSC: 39121449
• Use With: AN Aircraft Cables, Copper Conductor
• Connector Type: Seamless Butt Splice
• Outer Diameter: 0.31 in.
