Burndy YSV4CLBOX Hylink uninsulated splice for 4 AWG

Product Description

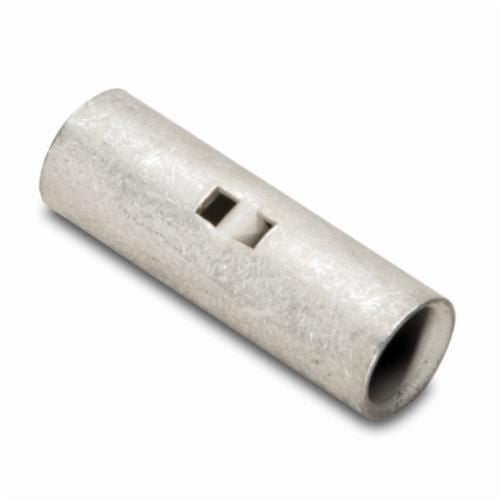

The BURNDY YSV4CLBOX HYLINK uninsulated splice is designed for 4 AWG wires. Manufactured from seamless tubing, this splice features electrolytic copper for maximum conductivity and low resistance. Electro-tin plating provides lasting corrosion resistance. It has positive center wire stops for proper wire insertion depth and inspection holes for easy visual inspection.

• Manufactured from seamless tubing
• High quality design with no seams to split
• Electro-tin plating provides durable long lasting resistance to corrosion

Product Highlights

Seamless tubing, electrolytic copper, electro-tin plating, and positive center wire stops ensure reliable connections in industrial and general purpose applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YSV4CLBOX

Technical Specifications

• Application: For Aircraft, Light Duty Industrial And General Purpose Applications
• Catalog Number: YSV4CLBOX
• Connector Type: Seamless Butt Splice
• Die Index: 40
• EU RoHS Indicator: Yes
• Feature - Barrel Style: Chamfered
• Material: Copper
• Plated: Y
• Plating Material: Electro-Tin
• Plating Type: Tin
• Sub Brand: HYLINK
• Trade Name: HYLINK
• Type: Splice
• UPC: 781810534755
• UPC 14 Digit GTIN: 00781810534755
• Dimension - B Length fraction: 1/2 in
• Dimension - B Length inch: 0.50 in
• Dimension - L Length Overall mm: 28 mm
• Dimension - Length Overall inch: 1.12 in
• Dimension - Outside Diameter inch: 0.38 in
• Dimension - Strip Length inch: 5/8 in
• Voltage - Maximum: 600 V
• Conductor - Copper Solid Size: 4 AWG
• Conductor - Copper Str Aircraft Size: AN 4
• Conductor - Copper Str Size: 4 AWG
• Conductor Size: 4 AWG
• Conductor Type: CU C Str-Size CU C Solid-Size CU C Str Aircraft-Size
• Certification - CSA Approved: Yes
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Standards - Industry Standards Met: UL486
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Minimum Pack Quantity: 1
• Manufacturer: Burndy
• Product Series: YSV-L
• Family Series: Burndy Terminals, YSV-L Series
• Description: 4 STR/SOL/FX BUTT SPLICE
• Terminal Type: Butt Connector
• Wire Size Range: 4 AWG
• Insulated: Non-Insulated
• Net Weight: 0.015 lbs
• Gross Weight: 0.015 lbs
• Length: 1.12 in
• Specifications: 5/8 in L Wire Strip
• Voltage Rating: 600 VAC
• Standard & Approvals: CSA Certified, RoHS Complaint, UL Listed
• Barrel Type: Short
• Barrel Size: 0.38 in OD
