Burndy YSU6W6W 8-8 Aluminum/Copper Service Entrance Compression Sleeve (8 AWG)

Product Description

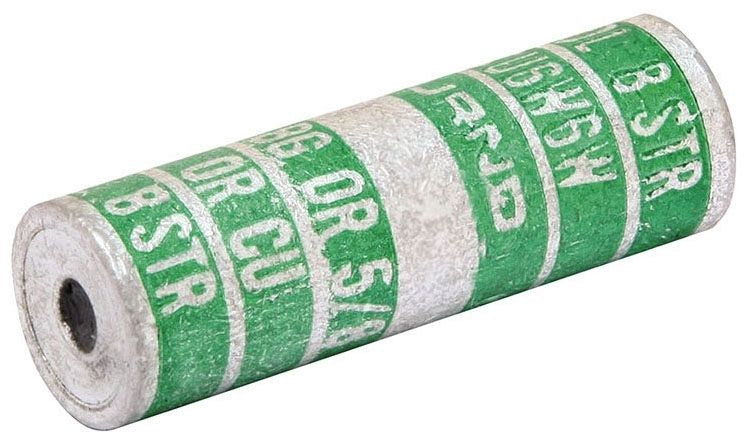

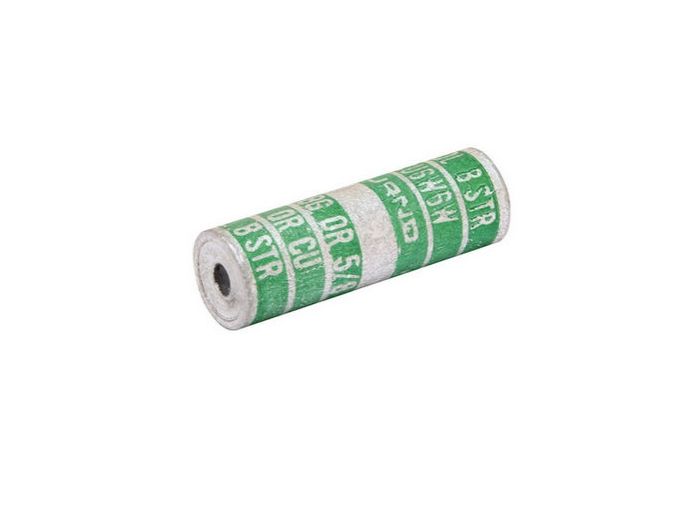

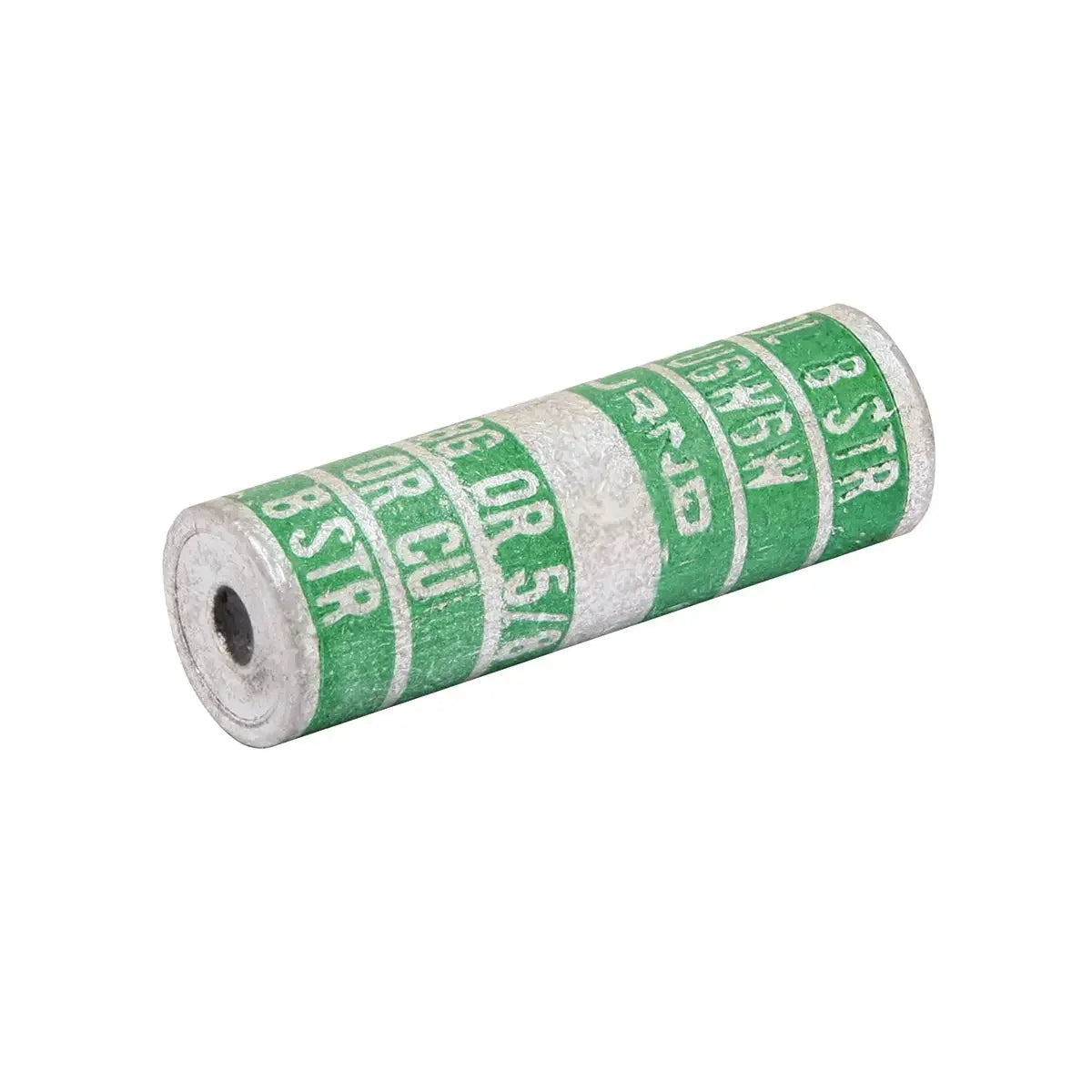

The Burndy YSU6W6W is a heavy-walled aluminum service entrance compression sleeve designed for 8 AWG aluminum-to-8 AWG copper conductors. It incorporates a solid internal barrier to reduce galvanic corrosion, is tin plated, and is prefilled with PENETROX joint compound and stripsealed. The sleeve is color coded green on both ends, measures about 2 inches overall with a 5/8 inch diameter, and installs with standard compression tooling.

• Heavy-walled aluminum tubing with solid internal barrier to minimize galvanic corrosion
• Designed for 8 AWG aluminum to 8 AWG copper service entrance conductors; approximately 5/8 inch diameter and 2 inch length
• Prefilled with PENETROX joint compound and stripsealed; tin plated finish; installed with standard compression tooling

Product Highlights

Heavy-walled aluminum service entrance compression sleeve; accepts 8 AWG Al to 8 AWG Cu; prefilled with PENETROX; 5/8 inch diameter, 2 inch length; color coded green both sides.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YSU6W6W
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: YSU6W6W
• Brand: Burndy
• Product Series: YSU
• Type: Service entrance, uninsulated butt connector / compression sleeve
• Material: Heavy-walled Aluminum (tin plated)
• Plating/Finish: Tin plated
• Trade Name: LINKIT
• Prefilled Oxide Inhibitor: PENETROX (prefilled) and stripsealed
• Compatible Conductor Sizes: 8 AWG aluminum to 8 AWG copper
• Diameter: 0.625 inch (5/8 inch) outside diameter
• Length: 2.00 inch (�51 mm)
• Die Index: 243; BG or 5/8
• Color Code: Green (both ends / Side A and Side B)
• Approvals: RUS
• RoHS Compliance: Yes
• UPC: 781810143148
• Installation: Installed with standard compression tooling
