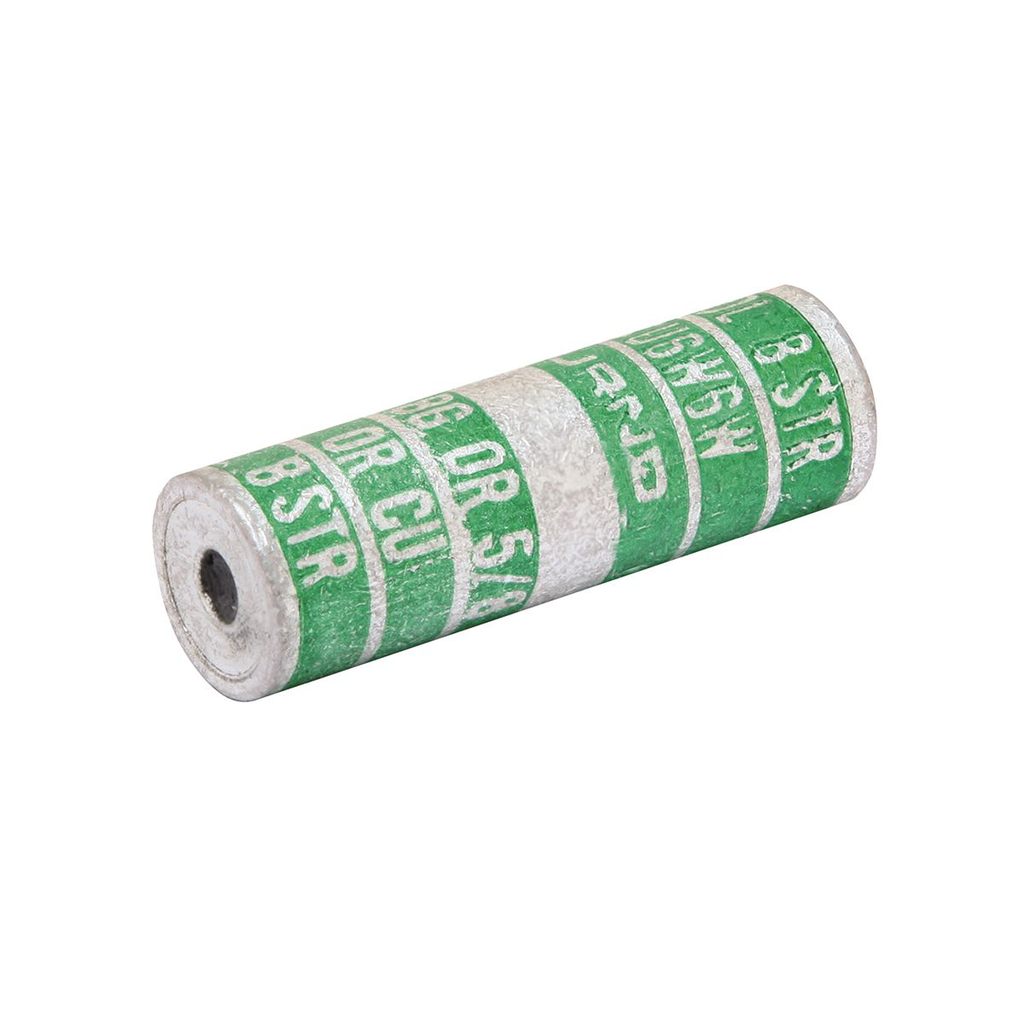

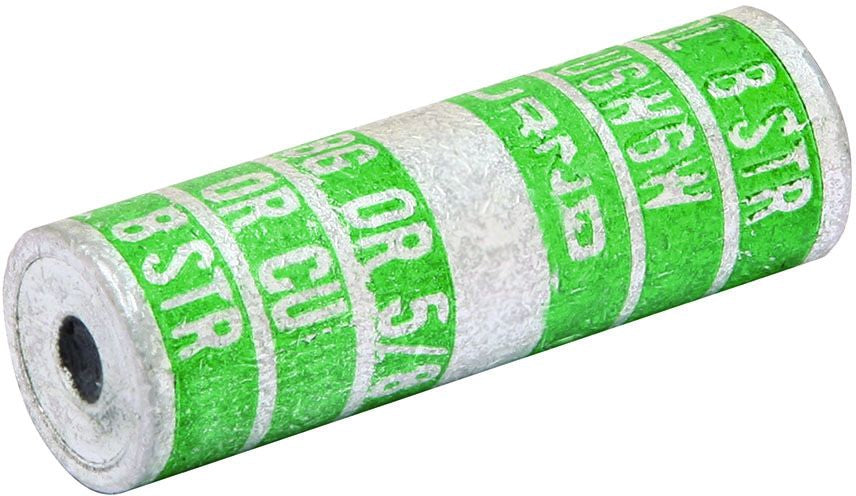

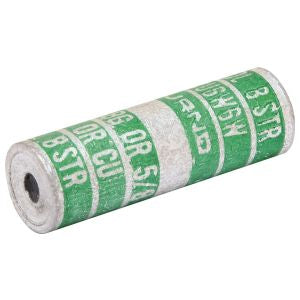

Burndy YSU2W4W Service Entrance Sleeve 3-4 (2 Inch)

Product Description

Burndy YSU2W4W is a service entrance sleeve for splicing and terminating ACSR, aluminum, AAAC, and copper conductors. The heavy-walled aluminum tube features a solid barrier and tin plating, is prefilled with PENETROX joint compound, and includes a center stop to minimize galvanic corrosion. The sleeve measures 2 inches long with a 0.65 inch outside diameter and is approved to RUS standards.

• Conductor compatibility: ACSR, aluminum, AAAC, and copper; overall conductor range 6 to 2 AWG with specific side A and B size support
• Construction: heavy-walled aluminum tube with solid barrier, tin plating, prefilled oxide inhibitor (PENETROX), and center stop
• Dimensions and approvals: 2 in length (51 mm), 0.65 in outside diameter, die index 243 (BG/5/8), RoHS compatible, RUS approved

Product Highlights

Heavy-walled tin-plated aluminum service entrance sleeve with solid barrier, prefilled PENETROX, center stop; fits 6�2 AWG conductors.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YSU2W4W
• Country of Origin: USA

Technical Specifications

• Brand: Burndy
• MPN: YSU2W4W
• Product Type: Service entrance sleeve (uninsulated, center stop)
• Material: Aluminum
• Plating: Tin
• Prefilled Joint Compound: PENETROX (prefilled oxide inhibitor), Stripsealed
• Barrier Type: Solid barrier
• Feature: Center stop
• Conductor Compatibility: ACSR, Aluminum, AAAC, Copper
• Conductor Range: 6 AWG to 2 AWG
• Side A Conductor Sizes: ACSR 4 AWG; AL/CU 2 AWG solid, 3�4 AWG stranded
• Side B Conductor Sizes: ACSR 6 AWG; AL/CU 4 AWG solid, 6�5 AWG stranded, 4 AWG compact (aluminum)
• Length Overall: 2 in (51 mm)
• Outside Diameter: 0.65 in (5/8 in)
• Die Index: 243, BG or 5/8
• RoHS Compliance: Yes
• Approval: RUS
• Country Of Origin: USA
• UPC: 781810142080
