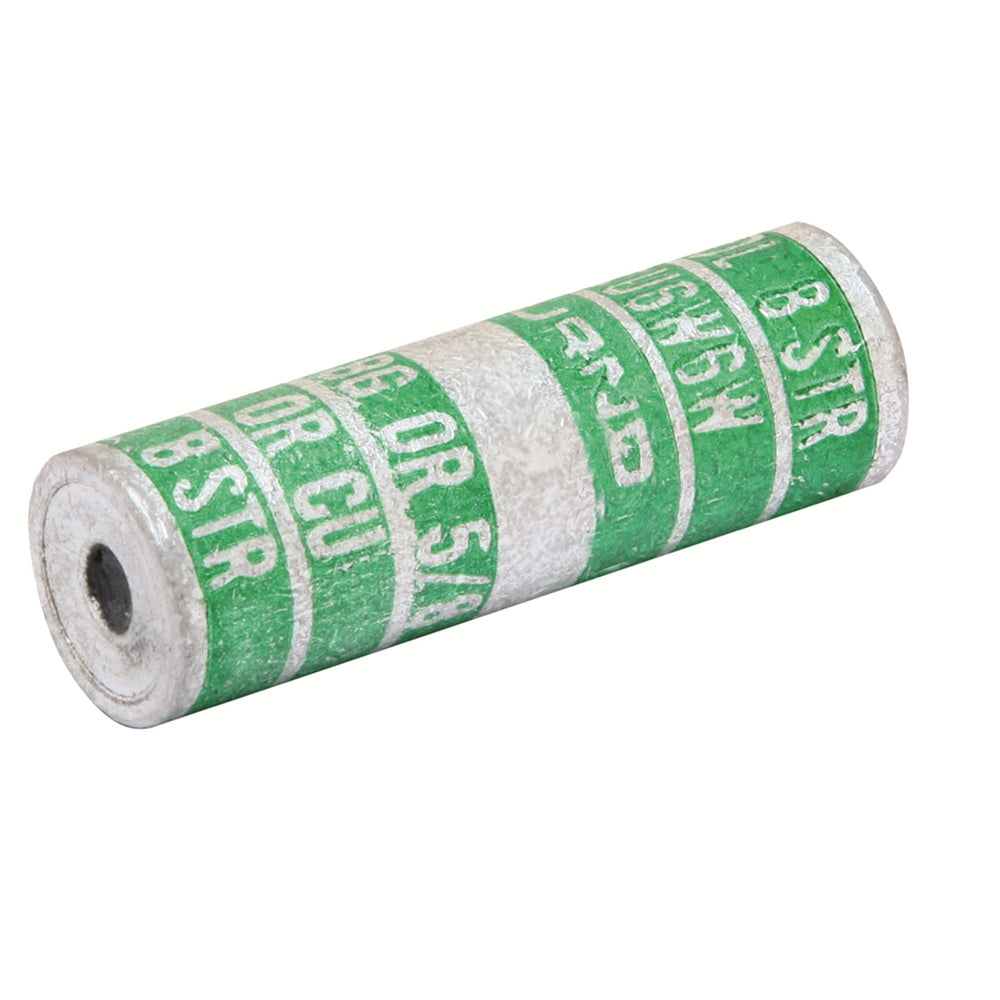

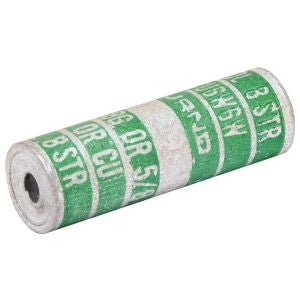

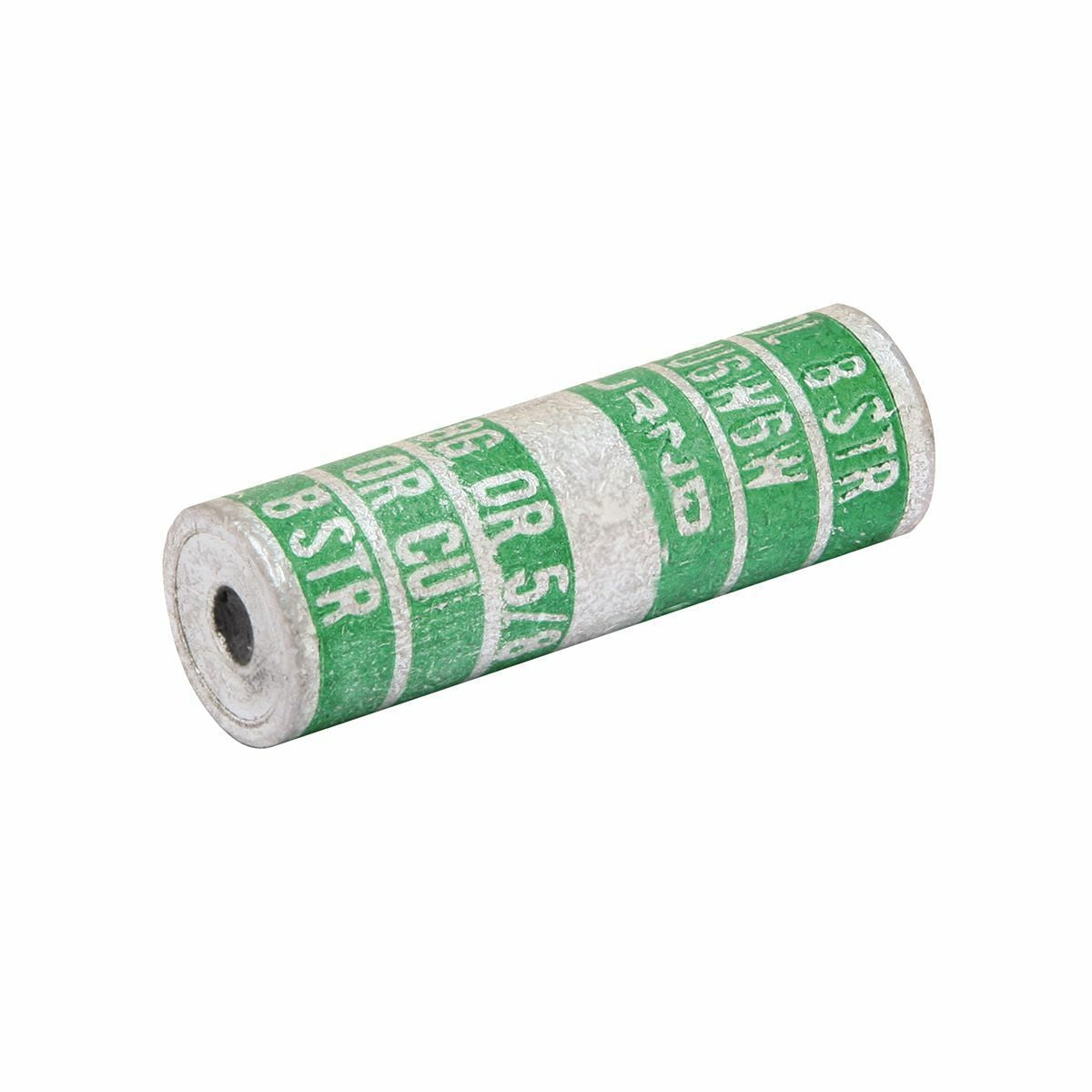

Burndy YSU2R2W Heavy-Walled Aluminum Tube Solid Barrier 2 in Center Stop

Product Description

Burndy YSU2R2W is a heavy-walled aluminum service entrance compression sleeve with an internal solid barrier engineered to minimize galvanic corrosion. The connector is prefilled with PENETROX joint compound and strip-sealed, tin hot-dipped plated, and accommodates neutral strands of Type SE and combinations of copper, aluminum, ACSR, 6201, 5005 and compressed conductors. Overall length is 2 in with a 0.65 in outside diameter and installs with standard tooling.

• Heavy-walled aluminum tubing with internal solid barrier to minimize galvanic corrosion
• Prefilled with PENETROX joint compound and strip-sealed; tin hot-dipped plated
• Compatible with copper, aluminum and ACSR conductors; overall length 2 in, outside diameter 0.65 in

Product Highlights

Service entrance, uninsulated center-stop compression connector; tin-plated; prefilled oxide inhibitor; compatible with AL/CU/ACSR conductors; 2 in length

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YSU2R2W
• Country of Origin: United States

Technical Specifications

• Manufacturer: Burndy
• Manufacturer Part Number: YSU2R2W
• Brand: BURNDY
• Sub Brand / Trade Name: LINKIT
• Product Type: Service entrance compression connector, uninsulated, center stop
• Material: Aluminum
• Plating: Tin (hot-dipped)
• Filled Compound: PENETROX joint compound
• Prefilled Oxide Inhibitor: Yes
• Application: For combinations of copper, aluminum, ACSR, 6201, 5005 and compressed conductors
• Conductor Compatibility: AL, CU, ACSR; Side A: 1/0�2/0 AWG (compact/stranded); Side B: 2 AWG solid, 3�4 AWG stranded
• Length Overall: 2 in (51 mm)
• Outside Diameter: 0.65 in
• B Length: 0.87 in
• Die Index: 243; BG or 5/8
• Item Type: Service Entrance, Uninsulated, Center Stop
• Cross Reference Products: CS72
• Country of Origin: United States
• UPC: 781810141236
• GTIN: 00781810141236
• RoHS Compliance: CM
• EU RoHS Indicator: Yes
• Certifications - UL Listed: No
• Certifications - cULus: No
• Certifications - CSA Approved: No
• Certifications - ETL: No
• Weight: 0.0225 kg
