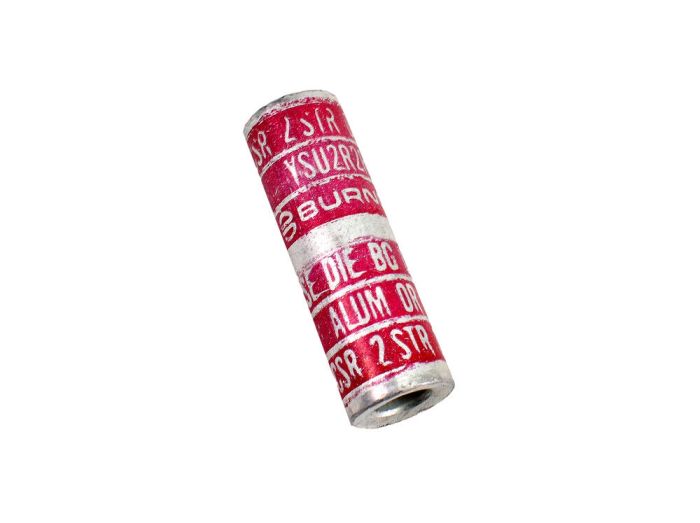

Burndy YSU2R2R heavy-walled aluminum tubing (2 in / 100 ea) CS73

Product Description

Burndy YSU2R2R is a heavy-walled aluminum service entrance compression sleeve with a solid internal barrier that minimizes galvanic corrosion. The LINKIT, non-insulated center-stop sleeve is prefilled with PENETROX joint compound and strip-sealed for corrosion protection. It is compatible with copper, aluminum and ACSR conductors, accommodates Type SE neutral strands, and measures approximately 2 in length with a 0.65 in outside diameter.

• Heavy-walled aluminum tubing with solid internal barrier to reduce galvanic corrosion
• Prefilled with PENETROX joint compound and strip-sealed; installed with standard compression tooling
• Compatible with ACSR, aluminum and copper conductors; fits ACSR 2 AWG and AL/CU 2 or 1 AWG

Product Highlights

2 in non-insulated center-stop aluminum sleeve; prefilled with PENETROX; compatible with ACSR/AL/CU conductors

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YSU2R2R
• Country of Origin: United States

Technical Specifications

• Manufacturer: BURNDY
• Manufacturer Part Number: YSU2R2R
• Brand: Burndy
• Sub Brand: LINKIT
• Catalog Number: YSU2R2R
• Item Type: Service Entrance, Uninsulated, Center Stop
• Material: Aluminum
• Prefilled Compound: PENETROX (prefilled and strip-sealed)
• Application / Compatible Conductors: For combinations of copper, aluminum, ACSR, 6201, 5005 and compressed conductors; accommodates neutral strands of Type SE service entrance conductor
• Conductor Type: ACSR, Aluminum, Copper
• Side A Conductor Size: ACSR 2 AWG; AL/CU 2 or 1 AWG stranded/aluminum compact
• Side B Conductor Size: ACSR 2 AWG; AL/CU 2 or 1 AWG stranded/aluminum compact
• Length: 2 in (51 mm)
• Outside Diameter: 0.65 in
• Die Index: BG Element A
• Prefilled Oxide Inhibitor: Yes (PENETROX)
• Country of Origin: United States
• UPC: 781810141083
• GTIN: 00781810141083
• Carton / Minimum Pack Quantity: 100
• Package Weight (lb): 0.05
