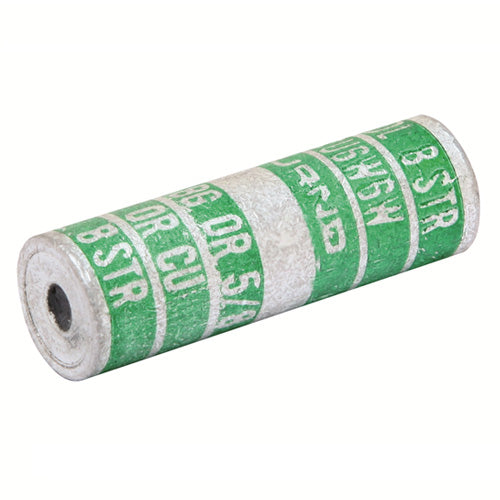

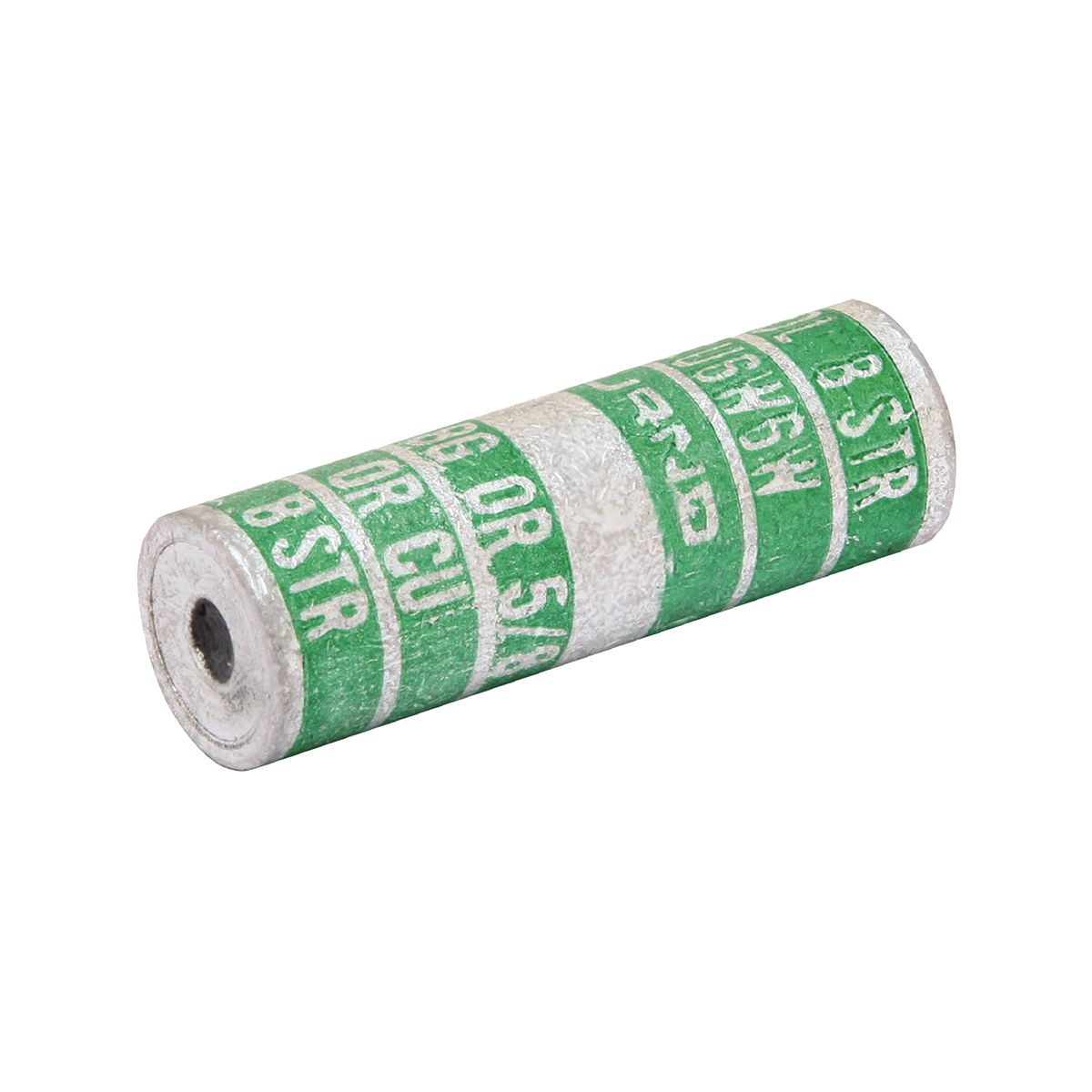

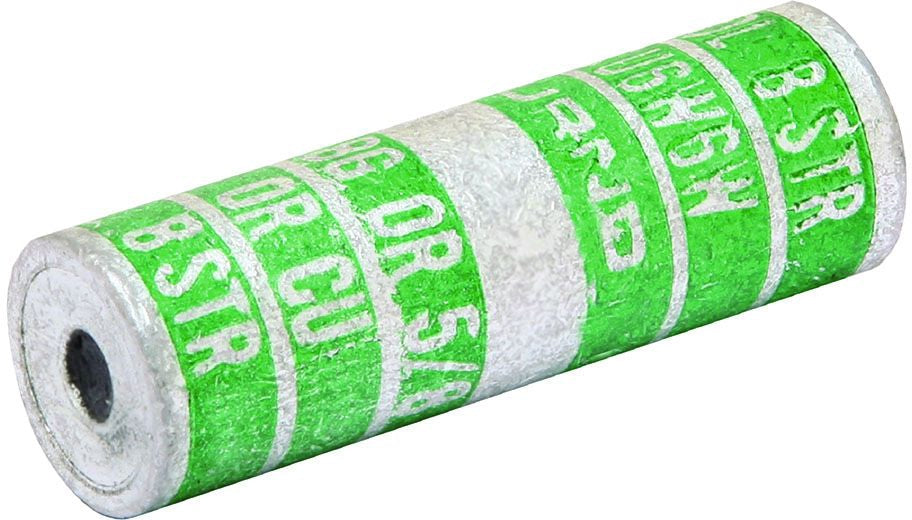

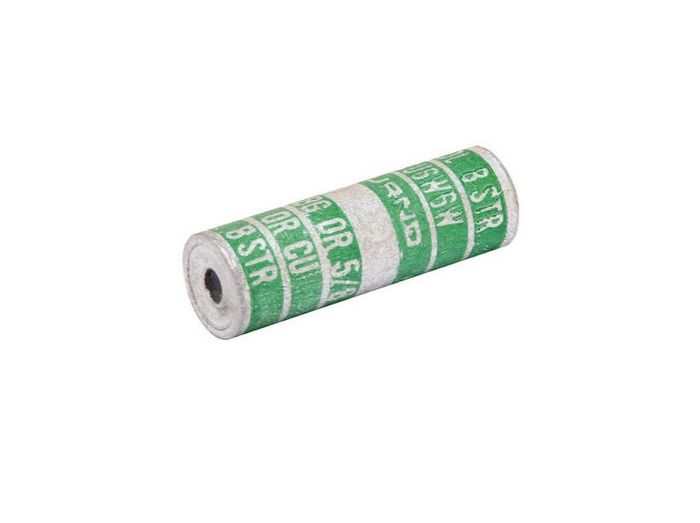

Burndy YSU25R2R Compression Splice (1/0 AWG)

Product Description

Burndy YSU25R2R is a service entrance compression sleeve made from heavy-walled aluminum tubing with a solid barrier to minimize galvanic corrosion. The LINKIT sleeve is prefilled with PENETROX oxide inhibitor and stripsealed for service entrance and other conductor transitions. It accepts a range of ACSR, aluminum, AAAC and copper conductors and measures approximately 2 inches long with a nominal 5/8 inch diameter.

• Heavy-walled aluminum compression sleeve with solid barrier; prefilled with PENETROX joint compound
• Conductor compatibility: Side A � 1/0 AWG stranded; 1/0 to 2/0 AWG compact (aluminum); Side B � 2 AWG ACSR; 2 to 1 AWG stranded/compact (aluminum); compatible with copper conductors
• Dimensions: length 2 in (51 mm); outside diameter approx. 0.65 in (5/8 in); non-insulated, center stop design; RoHS compatible; RUS approved

Product Highlights

Service entrance aluminum compression sleeve; accepts 1/0 AWG to 1 AWG conductor transitions; prefilled with PENETROX; 2 in length, 5/8 in diameter

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YSU25R2R
• Country of Origin: USA

Technical Specifications

• Brand: Burndy
• Manufacturer Part Number: YSU25R2R
• Product Type: Service entrance compression sleeve
• Series: YSU
• Material: Aluminum
• Trade Name: LINKIT
• Type: Service Entrance; Uninsulated; Center Stop
• Conductor Compatibility: ACSR, aluminum, AAAC, copper
• Conductor Size - Side A: 1/0 AWG stranded; 1/0 to 2/0 AWG compact (aluminum)
• Conductor Size - Side B: 2 AWG ACSR; 2 to 1 AWG stranded/compact (aluminum); compatible with copper sizes indicated by manufacturer
• Length: 2 in (51 mm)
• Outside Diameter: 0.65 in (5/8 in)
• Die Index: 243; BG or 5/8
• Prefilled Oxide Inhibitor: Yes (PENETROX)
• RoHS Compliance Status: RoHS compatible
• Approvals / Certifications: RUS approved; Buy America(n) qualified (per manufacturer data)
• Net Weight: 0.05 lb
• Country of Origin: United States
• UPC: 781810143285
