Burndy YSS6RG2 Single Aluminum Sleeve Die index:BG

Product Description

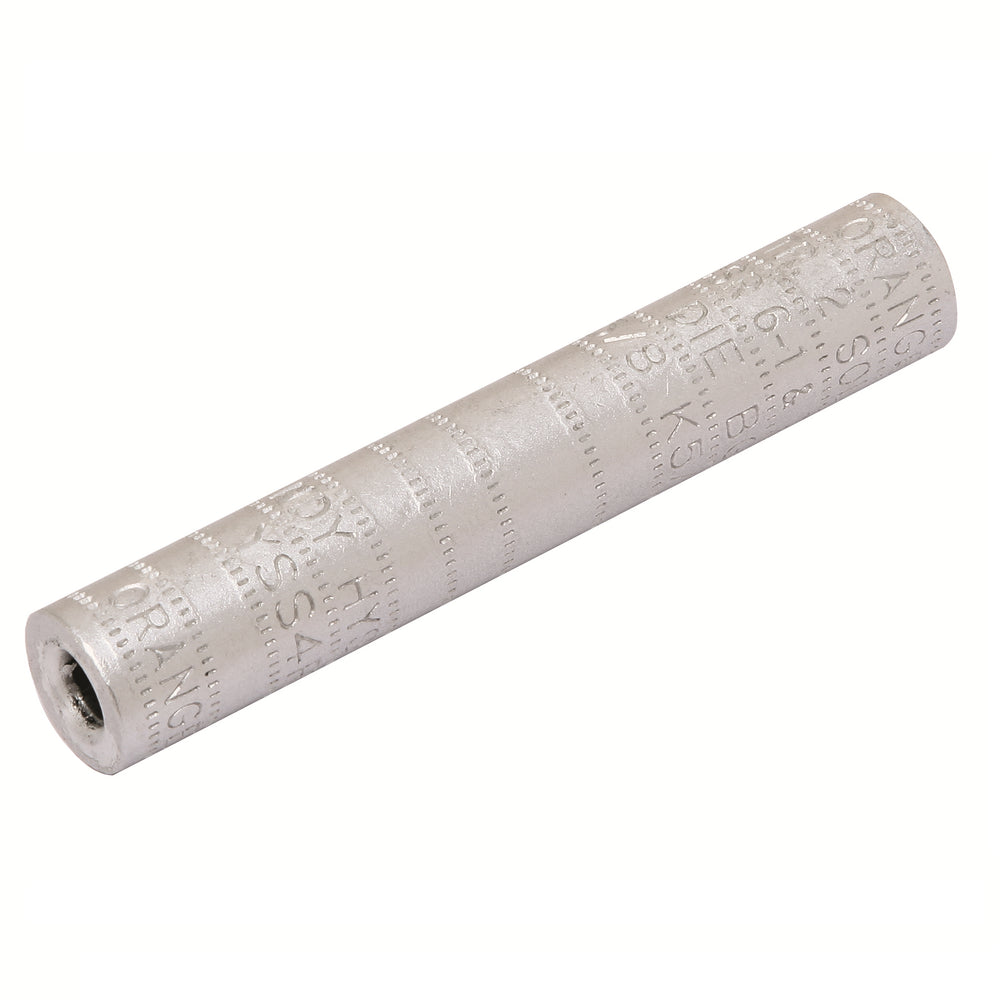

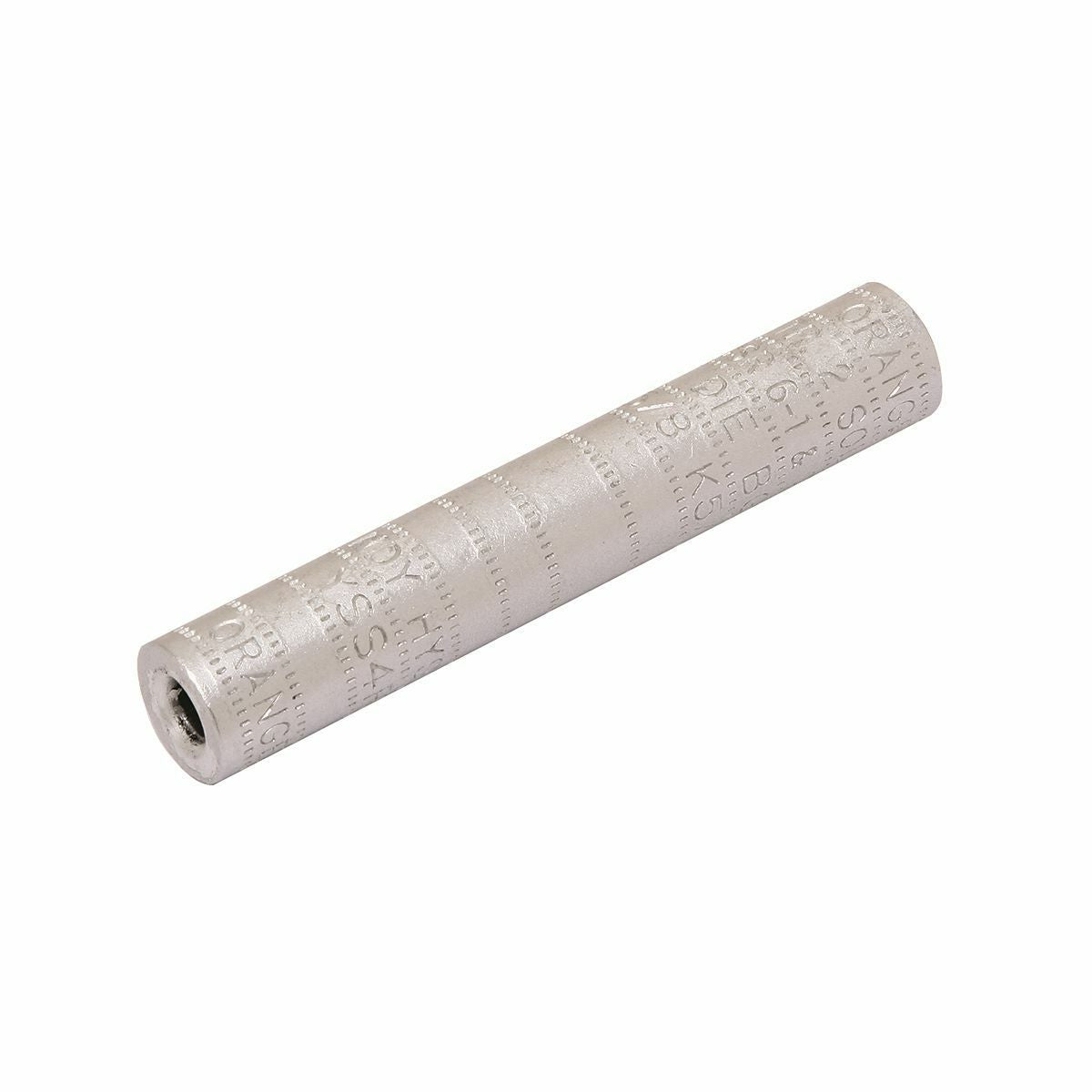

The BURNDY YSS6RG2 is a single aluminum sleeve designed for service drop or short span overhead distribution lines. It is pre-filled with PENETROX joint compound and color-coded capped. This sleeve is suitable for use with aluminum, ACSR, 6201, and 5005 conductors, as well as compressed conductors. The die index is BG.

• Designed for service drop or short span overhead distribution lines
• Pre-filled with PENETROX joint compound
• Color-Coded Capped

Product Highlights

Single aluminum sleeve for service drop or short span overhead distribution lines. Pre-filled with PENETROX joint compound and color-coded.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YSS6RG2
• Country of Origin: United States

Technical Specifications

• Catalog Number: YSS6RG2
• Brand: Hubbell Incorporated
• Sub Brand: HYSPLICE
• Country of Origin: United States
• Made in USA: Yes
• Application: For Aluminum, ACSR, 6201, 5005 And Compressed Conductors And Service Drop Or Short Span Overhead Distribution Lines
• Material: Aluminum
• Special Features: Features: Single Aluminum Sleeve Designed For Service Drop Or Short Span Overhead Distribution Lines, Installed With OH25 One-Hand Tool, And Other Standard Tooling, Pre-Filled With PENETROX Joint Compound And Color Coded Capped, Holding Strength: ACSR: 900 LB, Aluminum: 700 LB, Die Index: BG Element A, Conductor Type: ACSR, Aluminum, Color Code: Blue, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W-BG Die, (3), BG Die, (6), Y35, Y750 Tool, U-BG Die, (3), Y45 Tool, U-BG Die With PT-6515 Adapter, (3), Y46 Tool, U-BG Die With PUADP-1 Adapter, (3)
• UPC: 781810169759
• GTIN: 00781810169759
• Item Type: YSS
• Conductor Material: ACSR, Aluminum, Copper
• Side A ACSR Conductor Size: 6 AWG
• Side A AL/CU Conductor Size: 4 AWG Solid (Aluminum)
• Color Code: Blue
• Die Index: BG or 5/8
• Length: 4 Inch
• RoHS Compatible: True
• Connector Type: Compression Sleeve, Partial Tension
• Plated: N
• Plating Type: Unplated
• Prefilled Oxide Inhibitor: Y
• Trade Name: HYSPLICE™
• Type: YSS
• UPC 14 Digit GTIN: 00781810169759
• Dimension - B Length fraction: 1-39/50 in
• Dimension - B Length inch: 1.78 in
• Dimension - L Length Overall mm: 102 mm
• Dimension - Length Overall inch: 4 in
• Dimension - Outside Diameter inch: 0.65 in
• Conductor - AAAC 5005 Size: 30.58 (7) kcmil
• Conductor - AAAC 5005 Size Range: 30.58 (7) kcmil
• Conductor - AAAC 6201 Size: 30.58 (7) kcmil
• Conductor - AAAC 6201 Size Range: 30.58 (7) kcmil
• Conductor - ACSR Str Size: 6 (6/1) Turkey AWG
• Conductor - AL Str Size: 4 AWG
• Applications: For Aluminum, ACSR, 6201, 5005 And Compressed Conductors And Service Drop Or Short Span Overhead Distribution Lines
• Color Coding: Blue
• Connection Type: Splice
• Size: 4-1/8 IN Length
• Weight: 0.1200 lb
• Height: 0.65 Inch
• Overall Length: 4 in
• Width: 0.65 in
• Cable - Solid: 4 sol AL
• Cable - ACSR: 6 ACSR
• EU RoHS Indicator: Yes
• Standards: California Proposition 65
