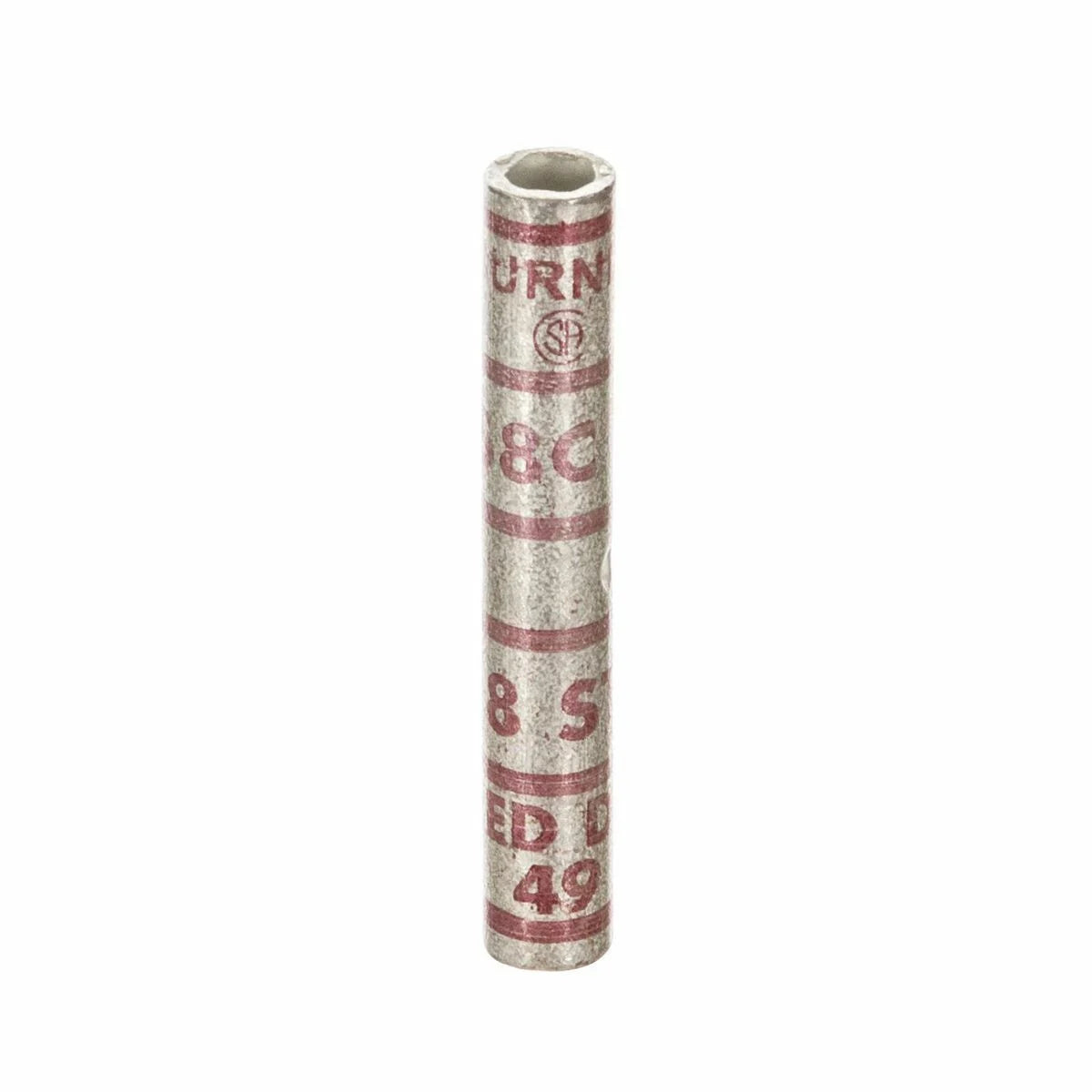

BURNDY YS8C 8 AWG CU Long Barrel Internal Chamfer Tin Plated UL/CSA 90C Up to 35kV

Product Description

The Burndy YS8C is an 8 AWG compression cable splice designed for reliable electrical connections. This product is suitable for high-voltage applications, rated up to thirty-five kilovolts. The long barrel reduces the risk of conductor damage while providing a secure fit for proper insertion.

• UL Listed for 90 Degrees Celsius rated applications
• Tin plated for corrosion resistance
• High pull-out force for secure connections

Product Highlights

The YS8C is ideal for heavy-duty applications, ensuring safety and performance in electrical installations.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: YS8C
• Voltage Rating: 35 kV
• Material: Copper
• Special Features: UL Listed, 90 Deg C, Long Barrel Length, Red Color Code
• Application: Wire Splice
• Finish: Tin-Plated
• Wire Strip Length: Seven-Eighths Inches
• Die Index: 49
