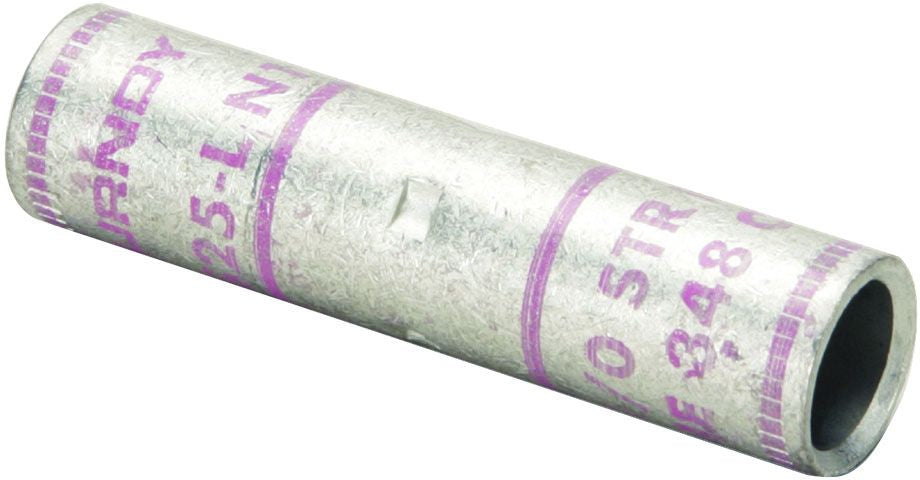

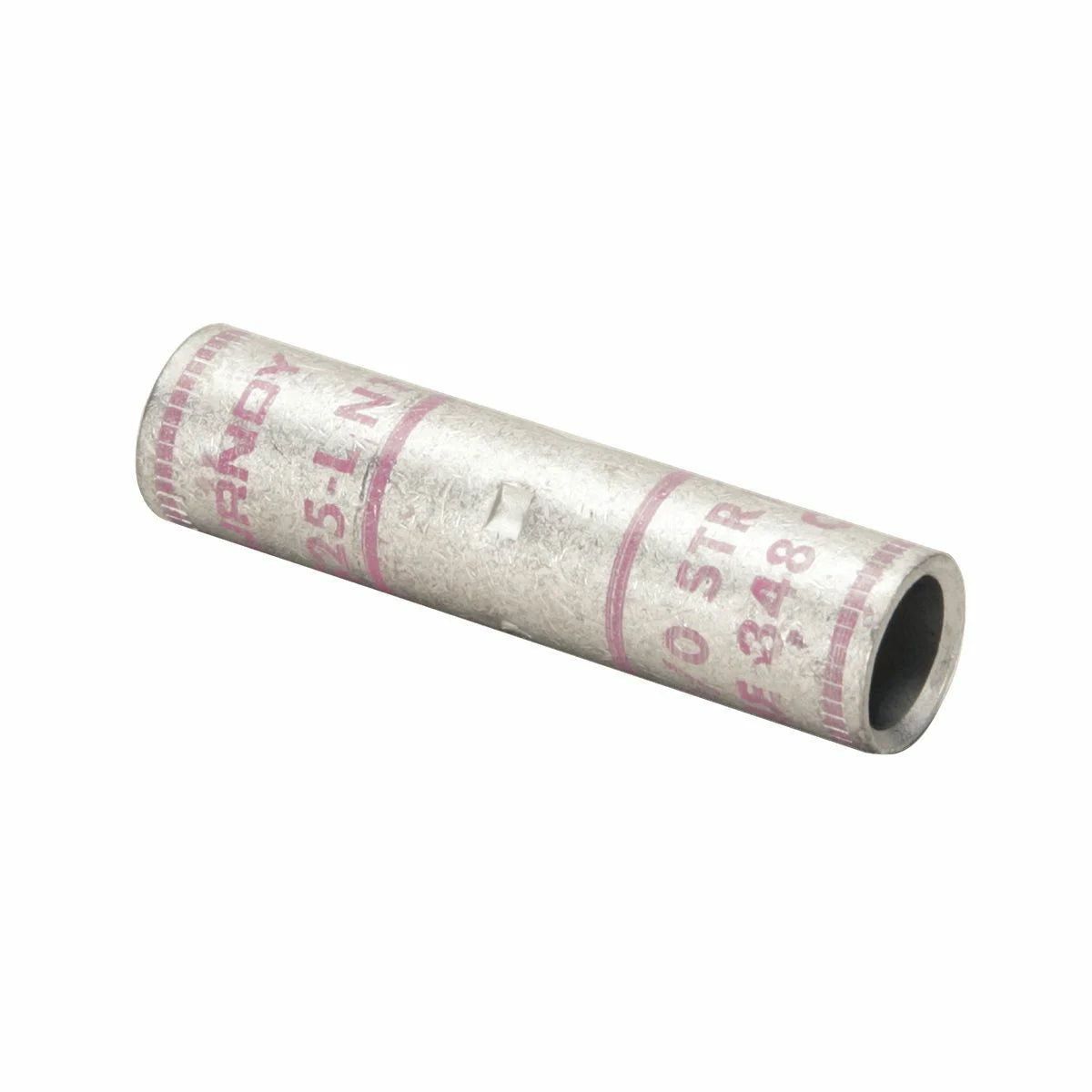

BURNDY YS4CLBOX 4 AWG CU Standard Barrel Internal Chamfer Tin Plated UL/CSA 90C Up to 35kV

Product Description

The Burndy YS4CLBOX is a compression cable splice designed for a reliable connection in electrical wiring. This standard barrel splice is made from copper and is appropriate for use in various electrical applications. The YS4CLBOX is rated for voltages up to thirty-five kilovolts, making it suitable for high-voltage systems.

• Rated for 90 degrees Celsius and UL/CSA approved.
• Features a standard barrel with internal chamfer for easy conductor insertion.
• Designed for use with commercial stranded copper conductors.

Product Highlights

The Burndy YS4CLBOX is engineered for optimal performance in cable splicing. Its tin-plated finish ensures improved conductivity and corrosion resistance, making it a durable choice for electrical projects. This splice meets industry standards for safety and reliability.

Product Information

Standard Information

• Catalog Number: YS4CLBOX
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Application: Wire Splice
• Voltage Rating: 35 kV
• Wire Strip Length: 7/8 inch
• Die Index: 8
• Special Features: Standard Barrel Length, Center Conductor Stops
• Finish: Tin-Plated
• Country of Origin: United States
