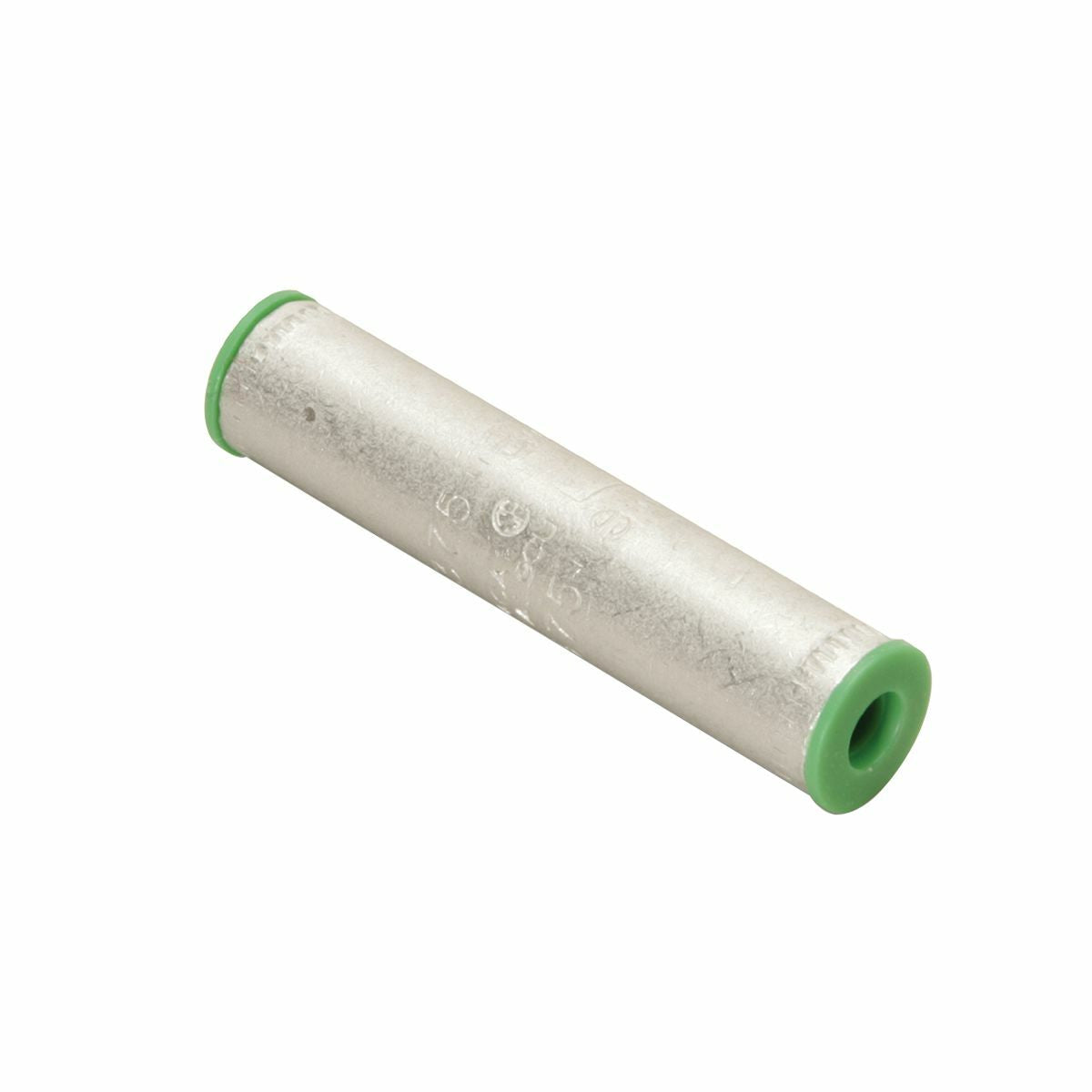

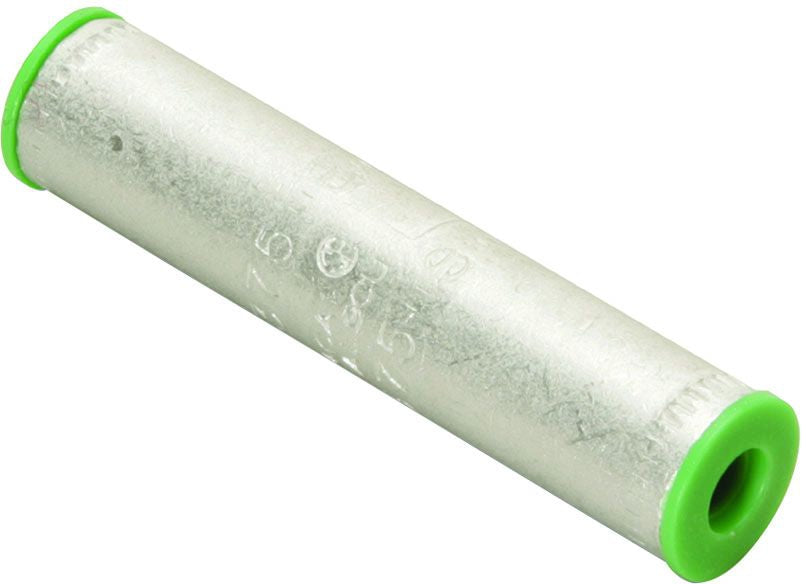

BURNDY YS4CA1 4 AWG AL Splice AL9CU Internal Chamfer Tin Plated Prefilled PENETROX End Cap UL/CSA 90C Up to 35kV

Product Description

The BURNDY YS4CA1 is a compression cable splice designed for 4 AWG aluminum or stranded copper conductors. This product features an internally chamfered barrel for easy cable entry and is prefilled with a PENETROX oxide inhibiting compound enhancing conductivity and connection quality.

• Voltage rating up to thirty-five kilovolts.
• Constructed from high-conductivity wrought aluminum with heavy-duty wall thickness.
• Color-coded green for easy identification.

Product Highlights

This splice is ideal for applications requiring reliable and durable connections, especially in electrical installations where high conductivity and resistance to corrosion are crucial.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YS4CA1
• Application: Wire Splice
• Material: Aluminum
• Finish: Tin-Plated
• Temperature Rating: 90C
• Voltage Rating: 35kV
• Cross Reference Products: ASN-4
• Die Index: 375
• Wire Strip Length: 7/8 inches
• Country of Origin: United States
• Standards: UL 486A-486B
• Special Features: Internally beveled barrel, solid center stop, prefilled with PENETROX.
