BURNDY YS4C 4 AWG CU Long Barrel Internal Chamfer Tin Plated UL/CSA 90C Up to 35kV GRAY Color Code

Product Description

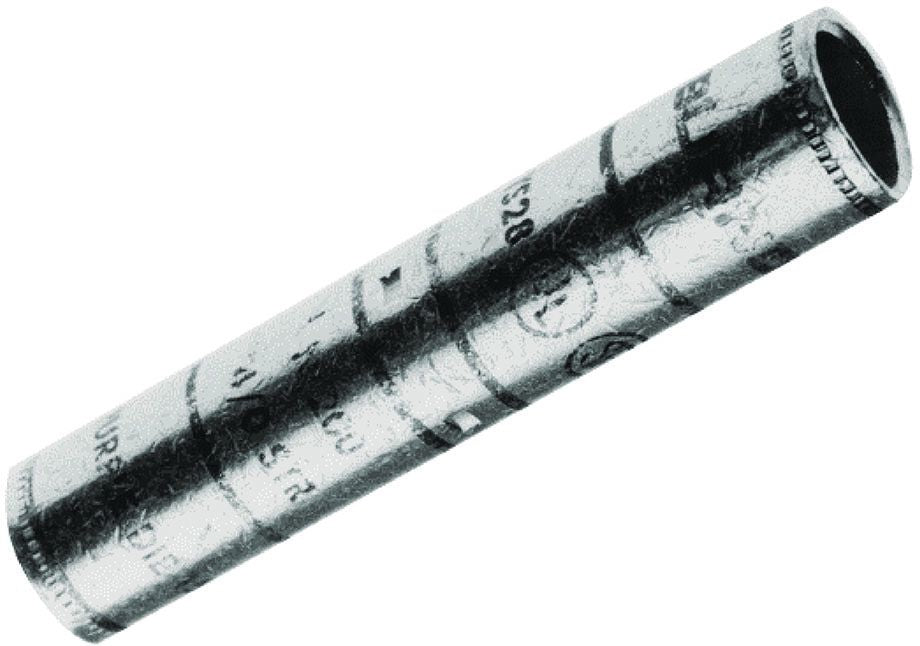

The BURNDY YS4C is a reliable compression cable splice type with a center wire stop. This product is designed for 4 AWG stranded copper conductors and is rated for up to 35 kilovolts. The long barrel with a bevelled entry makes it suitable for various applications in electrical installations.

• Voltage rating of thirty-five kilovolts
• Manufactured from tin-plated copper for durability
• UL and CSA approved for safe use

Product Highlights

This splice provides a secure connection for heavy-duty electrical applications.

Product Information

Standard Information

• Catalog Number: YS4C
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Finish: Tin-Plated
• Material: Copper
• Application: Wire Splice
• Wire Strip Length: 1-3/16 inches
• Die Index: 8 or 346
• Temperature Rating: 90 degrees Celsius
• Special Features: UL Listed 90 degrees Celsius, designed for 600 volts to 35 kV, includes four center conductor stops for proper insertion
• Cross Reference Products: CU4
