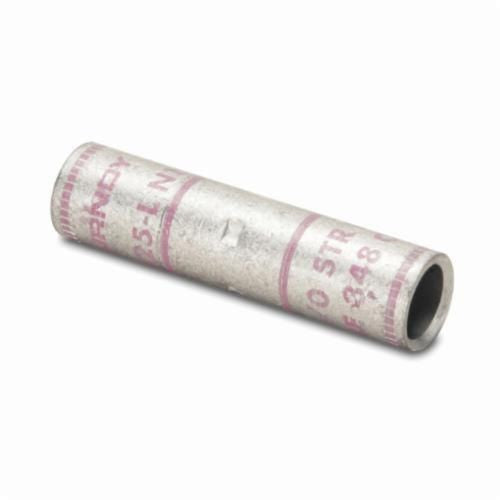

Burndy YS3CLBOX Hylink Compression Splice, 3 AWG Cu, Standard Barrel

Product Description

The BURNDY YS3CLBOX is a HYLINK Type YS-L standard barrel compression butt splice for wire splicing. Constructed from copper with tin plating, it reduces galvanic corrosion and resists corrosive elements. This splice is color-coded and clearly marked. It is suitable for up to 35kV applications and accommodates 3 AWG copper stranded conductors.

• Features a chamfered barrel style.
• Includes center conductor stops for proper conductor insertion.
• UL Listed and CSA Approved

Product Highlights

The BURNDY YS3CLBOX compression splice is ideal for applications with limited space, providing ample barrel length for a proper crimp.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YS3CLBOX

Technical Specifications

• Application: For Limited Space Applications
• Catalog Number: YS3CLBOX
• Color Code: White
• Connector Type: STANDARD BARREL
• Die Index: 9
• EU RoHS Indicator: Yes
• Feature - Barrel Style: Chamfered
• Feature - Barrel Type: Standard
• Finish Type: Tin-Plated
• Material: COPPER
• Plated: Y
• Plating Type: Tin - Electro Plated
• Sub Brand: HYLINK
• Trade Name: HYLINK
• Type: YS-L, Standard Barrel
• UPC: 781810555408
• UPC 14 Digit GTIN: 00781810555408
• Dimension - B Length fraction: 7/8 in
• Dimension - B Length inch: 0.88 in
• Dimension - L Length Overall mm: 52 mm
• Dimension - Length Overall inch: 2.05 in
• Dimension - Outside Diameter inch: 0.38 in
• Dimension - Strip Length inch: 15/16
• Voltage - Maximum: 35000
• Voltage Rating: 600 to 35000 VAC
• Conductor - Copper Str Navy Size: 50 (19) Navy
• Conductor - Copper Str Size: 3 AWG
• Conductor - Copper Str Size Range: 3 AWG
• Conductor - Material: COPPER
• Conductor Size: 3 AWG
• Conductor Type: CODE
• Certification - CSA Approved: Yes
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Industry Standard(s): UL 486A-486B
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Minimum Pack Quantity: 1
• Barrel Type: Short
• Finish: Tin Plated
• Wire Strip Length: 15/16 in
• Temperature Rating: 90 deg C
