Burndy YS39L 750 kcmil CU Standard Barrel

Product Description

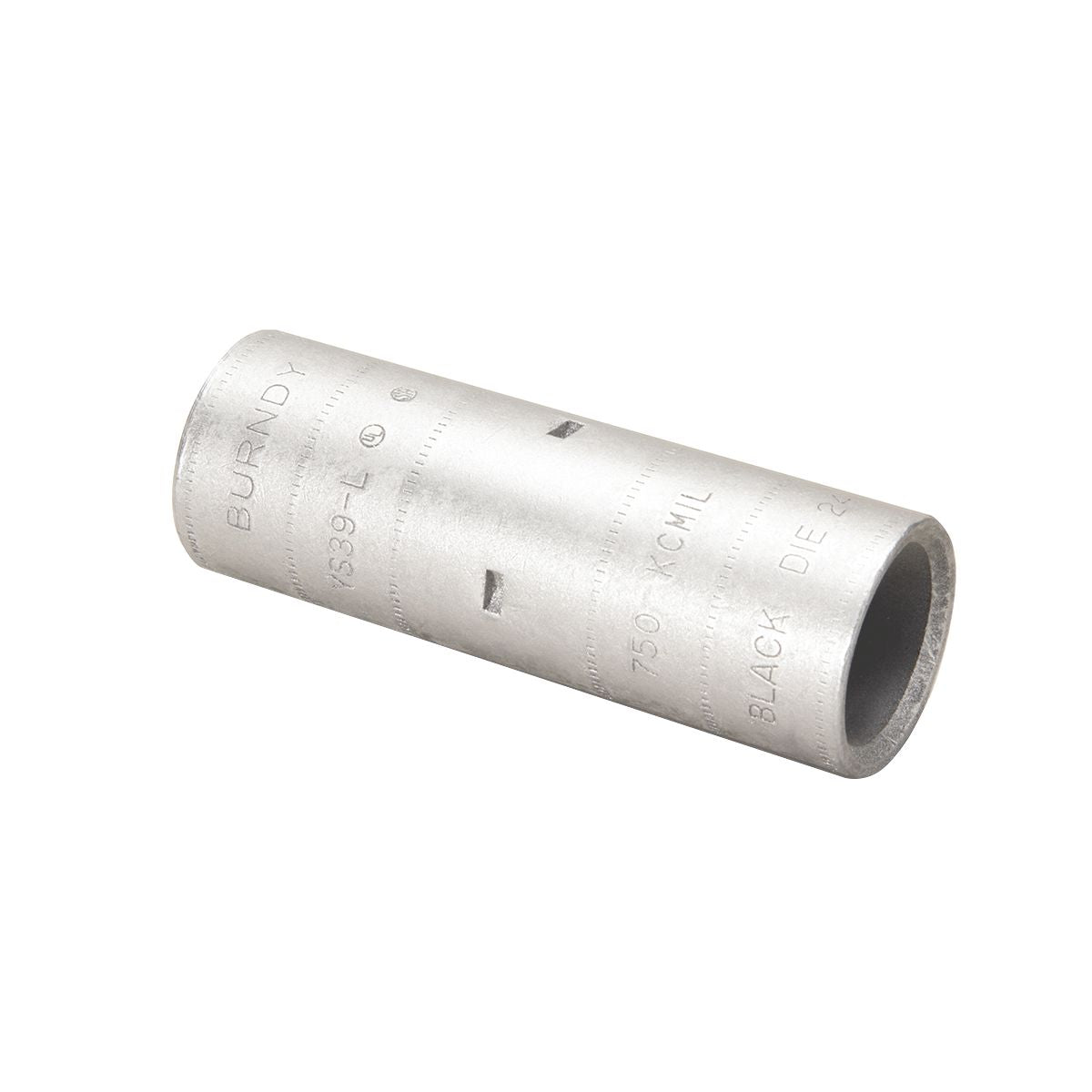

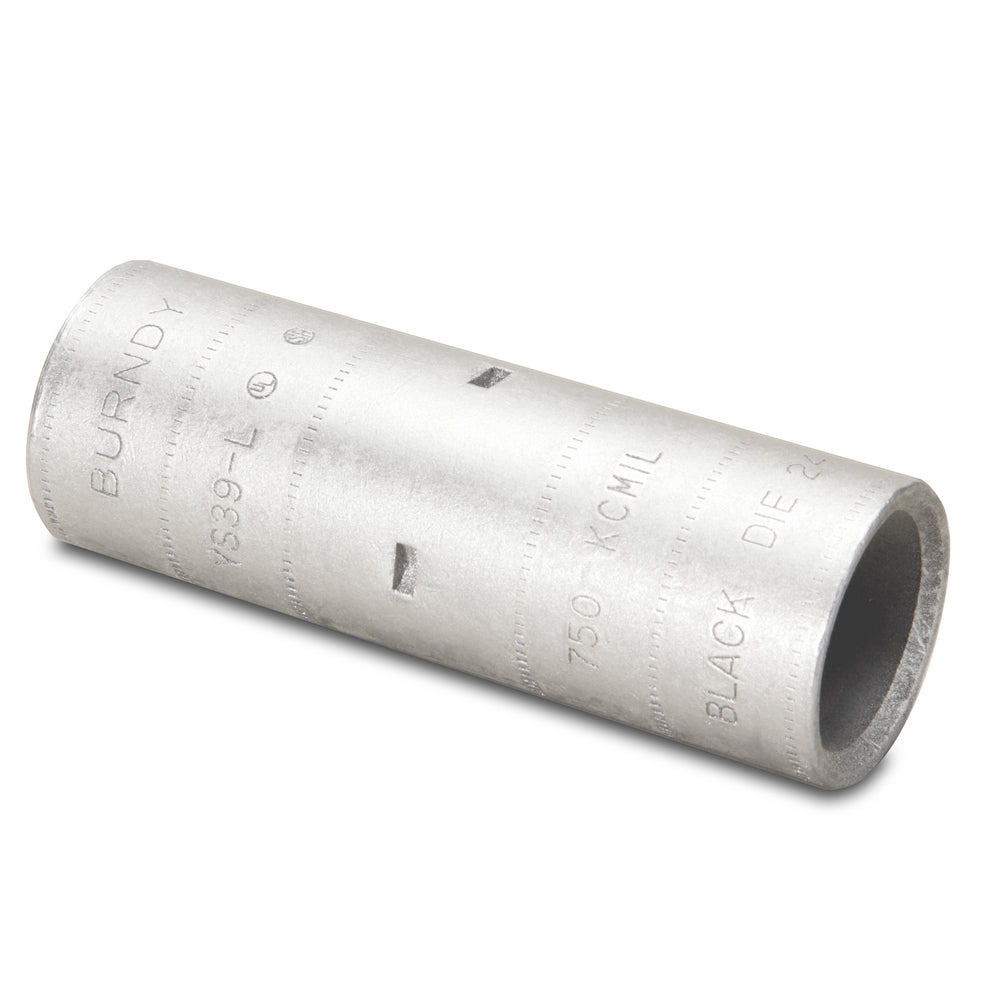

The BURNDY YS39L is a copper compression splice designed for 750 kcmil conductors. This splice features a standard barrel and is tin plated. It is UL/CSA certified and suitable for applications up to 35kV. The splice is color-coded black and has a die index of 24.

• Standard barrel length ideal for limited space applications
• Features four center conductor stops for proper conductor insertion
• Electro-tin plated to reduce galvanic corrosion

Product Highlights

This copper compression splice is designed for reliable connections in various electrical applications, ensuring optimal performance and longevity.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YS39L
• Country of Origin: USA

Technical Specifications

• CSA: Yes
• Type: YS-L, Standard Barrel
• Brand: Burndy
• Color: Black
• Width: 1.3 in
• Finish: Tin-Plated,Tin-Plated
• Height: 1.3 Inch
• Length: 3.72 Inch
• Plated?: Yes
• Voltage: 35,000 Volt
• Material: Copper
• Sub Brand: HYLINK
• Wire Size: 750 kcmil
• Max Voltage: 35000 V
• Applications: For Limited Space Applications
• Color Coding: Black
• Plating Type: Tin - Electro Plated
• Conductor Size: 750 kcmil
• Overall Length: 3.72 in
• Connection Type: Splice
• Country of Origin: USA
• Temperature Rating: 90 C
• Buy American Compliant: Y
• Application: Wire Splice
• Catalog Number: YS39L
• Die Index: 24
• EU RoHS Indicator: Yes
• Feature - Barrel Style: Chamfered
• Feature - Barrel Type: Standard
• Finish Type: Tin-Plated
• Trade Name: HYLINK
• Dimension - B Length inch: 1.62 in
• Dimension - L Length Overall mm: 94 mm
• Dimension - Strip Length inch: 1-11/16
• Voltage - Maximum: 35000
• Voltage Rating: 35 kV
• Conductor - Copper Str Compact Size: 750
• Conductor - Copper Str Size: 750 kcmil
• Conductor - Copper Str Size Range: 750 kcmil
• Conductor - Material: COPPER
• Conductor Type: CODE
• Certification - CSA Approved: Yes
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Industry Standard(s): UL 486A-486B
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Allowable Gauge Range: 750
