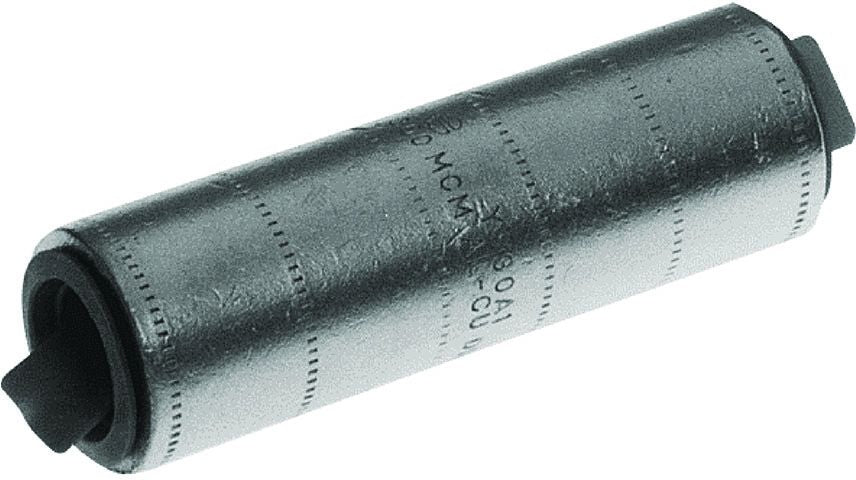

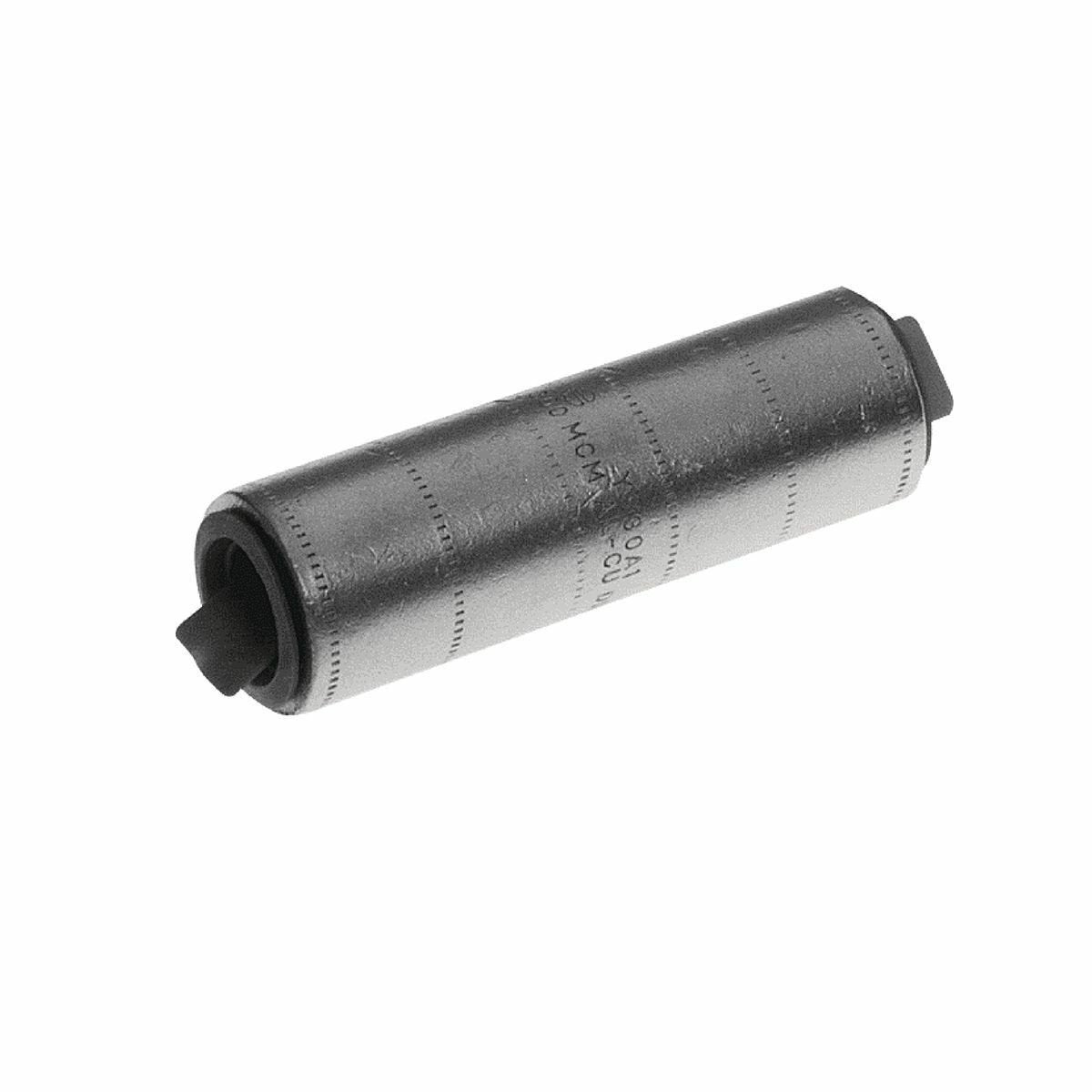

BURNDY YS39A1 750 kcmil AL Splice, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX, End Cap, UL/CSA, 90ºC, Up to 35kV, Yellow Color Code, 936 Die Index

Product Description

The BURNDY YS39A1 is a compression cable splice designed for connecting aluminum conductors of size 750 kcmil. This product is suitable for wire splicing applications in various electrical setups, offering reliability and performance.

• Manufactured from high-conductivity aluminum for optimal electrical performance.
• Meets UL and CSA standards for safety and reliability.
• Internally pre-filled with PENETROX for enhanced protection against oxidation.

Product Highlights

Designed for outdoor and indoor applications, the YS39A1 ensures a strong electrical connection between aluminum and copper conductors.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• UPC: 781810766026
• Voltage Rating: 35 kV

Technical Specifications

• Catalog Number: YS39A1
• Application: Wire Splice
• Temperature Rating: 90°C
• Material: Aluminum
• Finish: Tin-Plated
• Wire Strip Length: 2-7/8 inches
• Country of Origin: United States
• Special Features: Internally beveled barrel for easy wire entry, color-coded end caps for identification.
