BURNDY YS34 500 kcmil CU Long Barrel Internal Chamfer Tin Plated UL/CSA 90?C Up to 35kV

Product Description

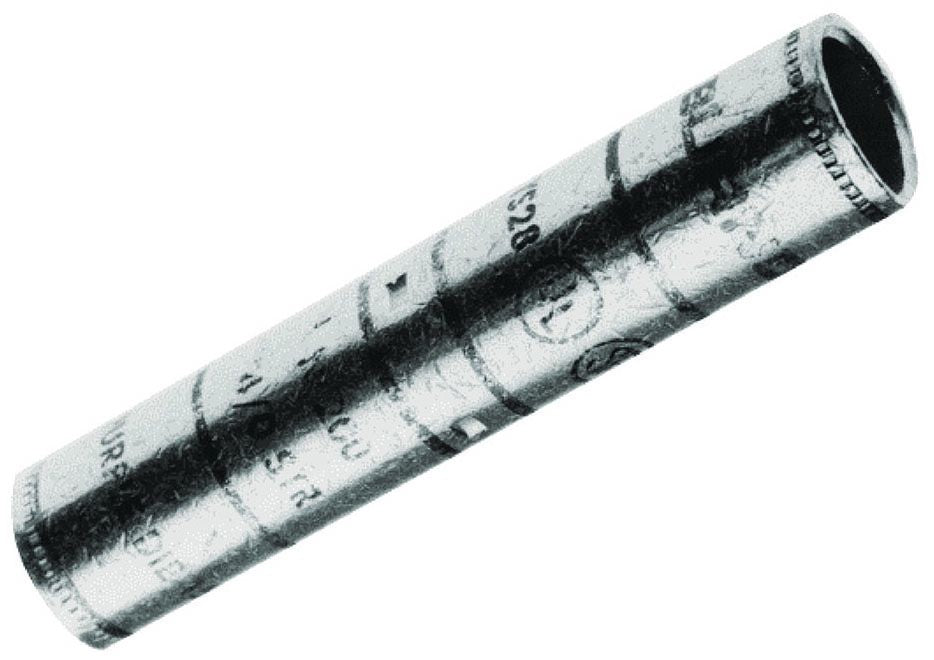

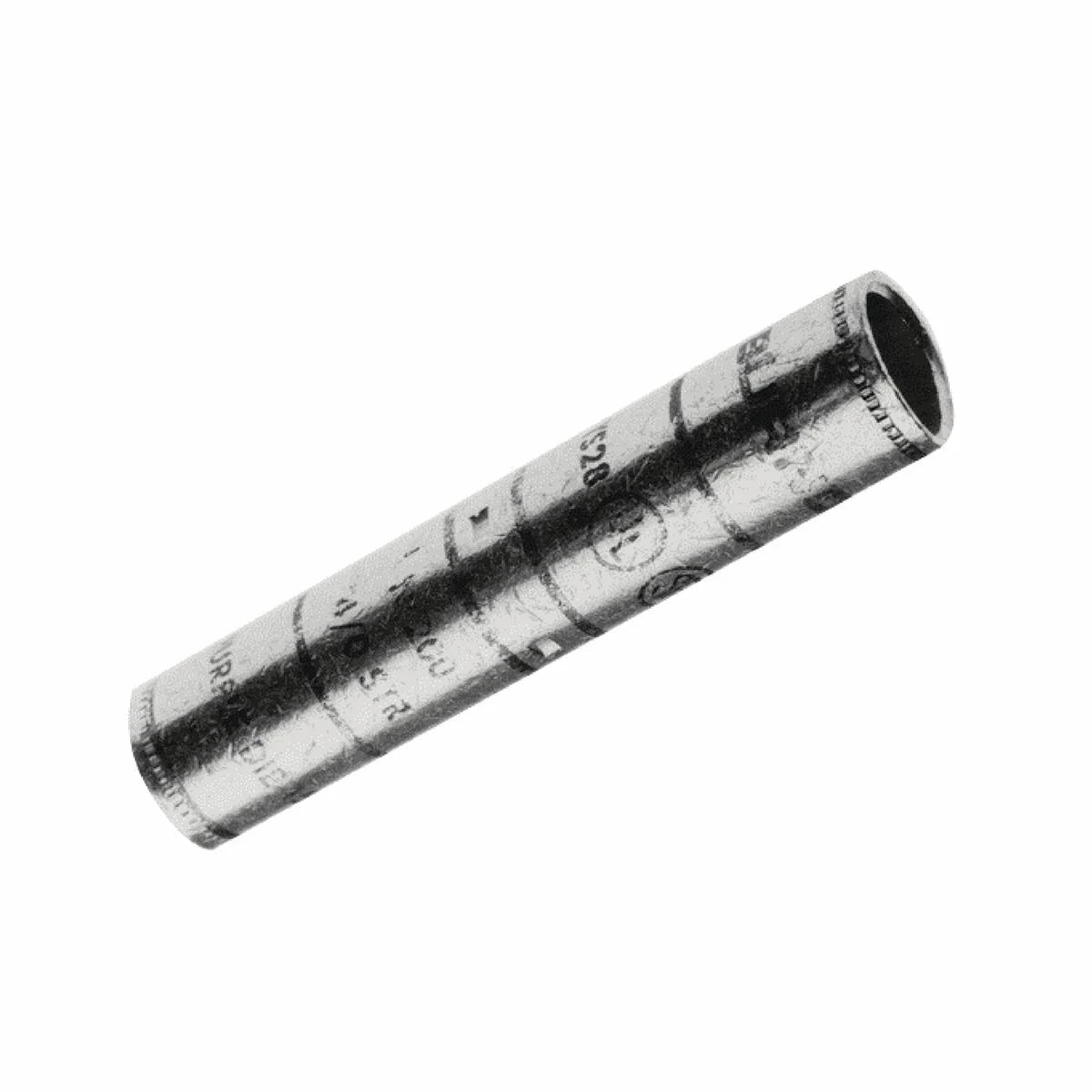

The BURNDY YS34 is a compression cable splice designed for excellent performance. It is used with copper conductors, rated for up to thirty-five kilovolts, and a conductor size of five hundred kcmil. This product is ideal for heavy-duty applications. The long barrel design makes it suitable for various installations.

• UL Listed for safety and compliance
• Tin-plated for corrosion resistance
• Long barrel length for secure connections

Product Highlights

This product offers great mechanical and electrical properties with a high pullout force and ease of use.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YS34
• Application: Wire Splice
• Material: Copper
• Finish: Tin-Plated
• Voltage Rating: 35 kV
• Length: Four point nine one inches
• Outer Diameter: One point zero six inches
• Wire Strip Length: Two and five-sixteenth inches
