Burndy YS32L 400 kcmil CU Standard Barrel Butt Splice

Product Description

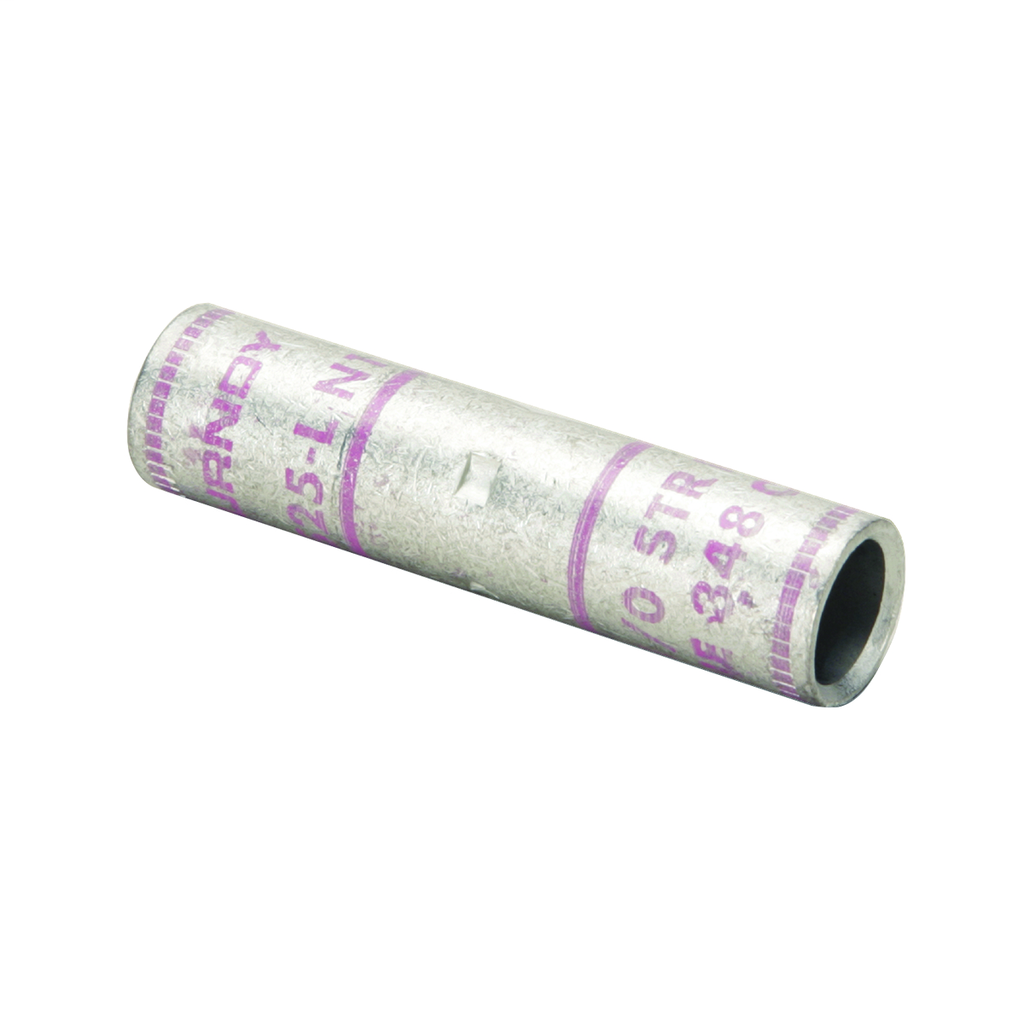

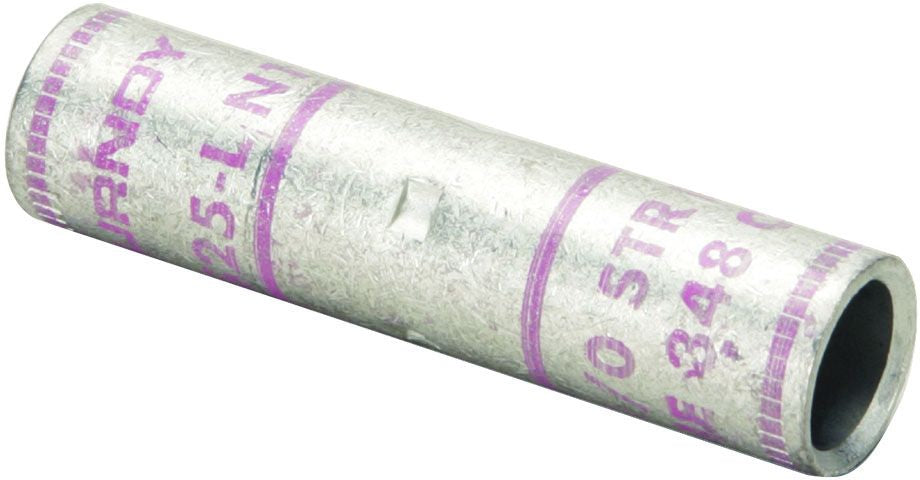

The BURNDY YS32L is a copper compression butt splice designed for use with 400 kcmil conductors. This standard barrel splice features an internal chamfer and tin plating. It is UL listed and CSA certified, with a temperature rating of 90 degrees Celsius and is suitable for applications up to 35kV.

• Standard barrel length ideal for limited space applications
• Features four center conductor stops for proper conductor insertion
• Suitable for voltage applications from 600V to 35kV

Product Highlights

The BURNDY YS32L butt splice ensures secure and reliable connections for copper conductors in various electrical applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YS32L
• Country of Origin: USA

Technical Specifications

• CSA: Yes
• Type: YS-L, Standard Barrel
• Brand: Burndy
• Finish: Tin Plated
• Voltage: 35,000 Volt
• Material: Copper
• Sub Brand: HYLINK
• Wire Size: 400 kcmil
• Max Voltage: 35000 V
• Applications: For Limited Space Applications
• Color Coding: Blue
• Plating Type: Tin - Electro Plated
• Conductor Size: 400 kcmil
• Connection Type: Splice
• Country of Origin: USA
• Temperature Rating: 90 C
• Buy American Compliant: Y
• MPN: YS32L
• Voltage Rating: 600 to 35000 VAC
• Standard & Approvals: CSA Certified, RoHS Complaint, UL Listed
• Conductor Type: Commercial Stranded Copper
• Barrel Type: Standard
