Product Description

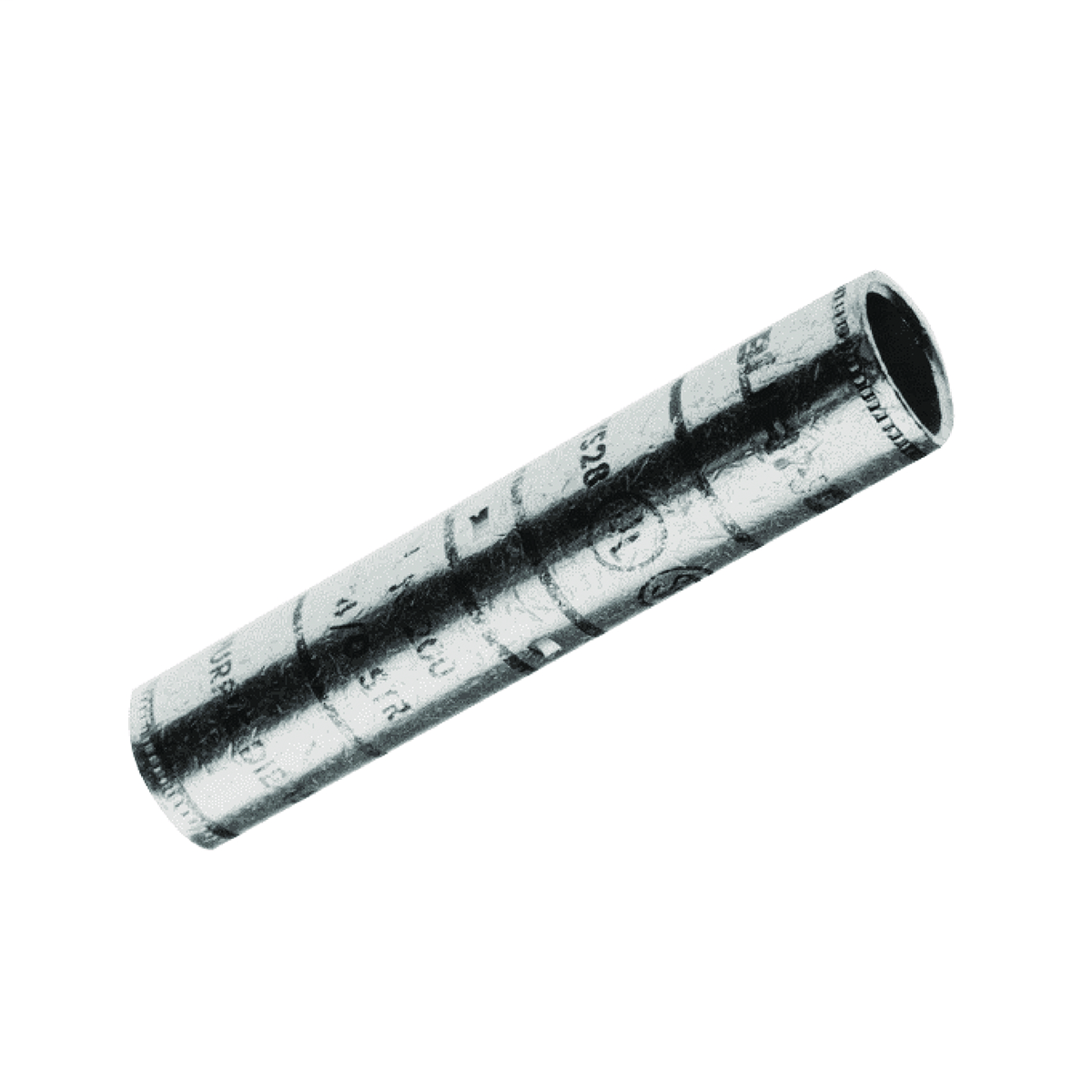

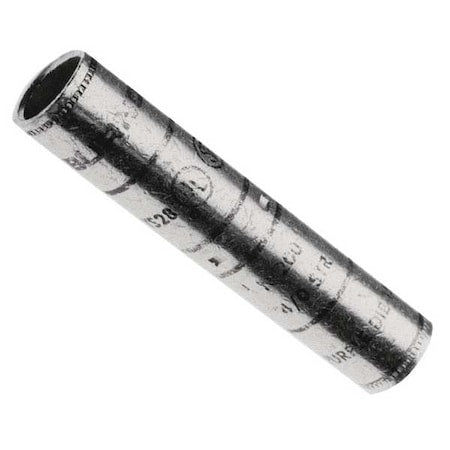

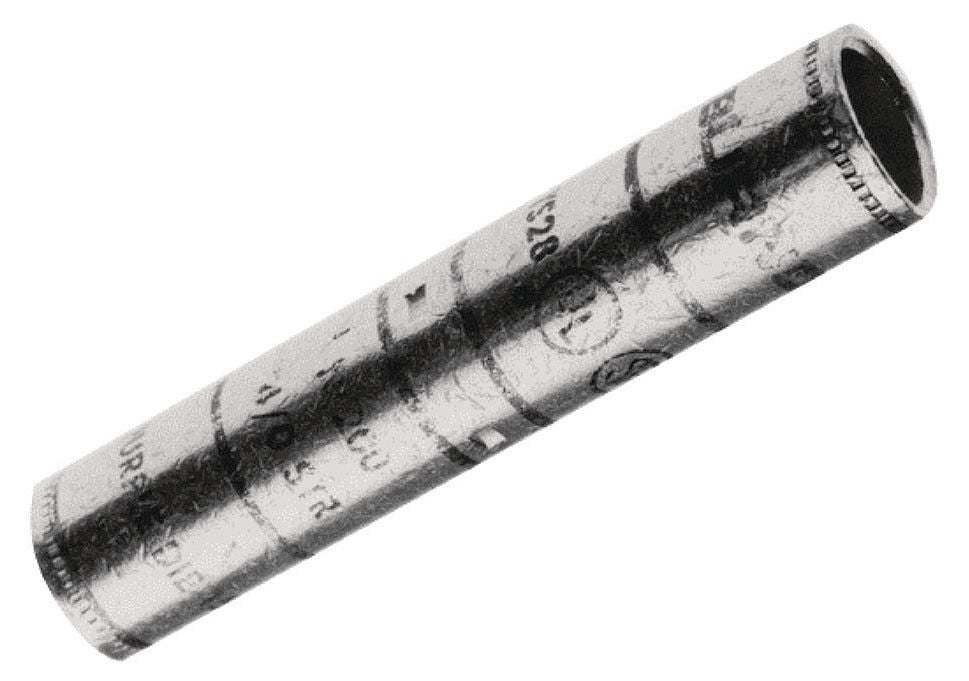

The Burndy YS32 is a copper compression splice designed for 400 kcmil conductors. This long barrel, tin-plated splice features an internal chamfer and is UL/CSA certified for applications up to 35kV. It is suitable for heavy-duty applications and features a blue color code and die index of 19 or 470.
- UL Listed 90 DEG C, 600 Volts to 35 kV
- Long Barrel Length: Ideal For 600 Volt Heavy Duty Applications, Also May Be Used At Higher Voltages Up To 35KV
- Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion
Product Highlights
This Burndy HYLINK series compression splice ensures secure connections in demanding electrical environments, offering high pull-out force and reliable performance.
Product Information
Standard Information
-
Brand: BURNDY
-
Manufacturer Part Number: YS32
-
Country of Origin: USA
Technical Specifications
-
Type: YS Series
-
Brand: Burndy
-
Finish: Tin-Plated
-
Plated?: Yes
-
Voltage: 35,000 Volt
-
Material: Copper
-
Sub Brand: HYLINK
-
Max Voltage: 35000 V
-
Applications: For Heavy Duty Applications And Used At Higher Voltages Up To 35 KV
-
Color Coding: Blue
-
Plating Type: Tin - Electro Plated
-
Conductor Size: 400 kcmil
-
Connection Type: Splice
-
Country of Origin: USA
-
Temperature Rating: 194 deg F (90 deg C)
-
Buy American Compliant: Y
-
CSA: Yes
-
Size: 400 MCM, 400 (127) Navy
-
Catalog Number: YS32
-
Manufacturer: Burndy, a Hubbell affiliate
-
Made in USA: Yes
-
Application: Wire Splice
-
Special Features: Features: UL Listed 90 DEG C, 600 Volts to 35 kV, Long Barrel Length: Ideal For 600 Volt Heavy Duty Applications, Also May Be Used At Higher Voltages Up To 35KV, Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion, High Pull Out Force: Provides Added Security For Much Greater Mechanical And Electrical Properties, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (3), Color Code: Blue, Tapered End: No, Oil Stop: No, Die Index: 19 Or 470, Wire Strip Length: 2-3/16 IN, Conductor Type: Commercial Stranded Copper, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD7-34R Tool, W32VT Die, (4), Y35 , Y39, Y750 Tool, U32RT Die, (4), Y46 Tool, U32RT Die With PUADP-1 Adapter, (4)
-
Standard: UL 486A-486B
-
Item Type: YS, Long Barrel
-
Voltage Rating: 600 Volt - 35 Kilo-Volt
-
Barrel Type: Long with Bevelled Entry, Chamfered
-
Outer Diameter: 0.95 Inch
-
Body Material: Electro Tin Plated Copper
-
RoHS Compliant: True
-
Wire Strip Length: 2-3/16 Inch
-
Die Index: 19 or 470
-
Rating - KVA: 35 kV
-
Voltage - Maximum: 35000
-
UL Listed: Yes
-
Rating - Minimum Voltage: 600
-
Conductor - Copper Str Size: 400 kcmil
-
Industry Standard(s): UL486A-UL486B
-
Conductor - Copper Str Navy Size: 400 (127) Navy
-
Certification - CSA Approved: Yes
-
Dimension - B Length inch: 2.08 in
-
Dimension - Strip Length inch: 2-1/16
-
Dimension - L Length Overall mm: 117 mm
-
Dimension - Length Overall inch: 4.62 in
-
Standards - Industry Standards Met: UL486A-486B
-
Standards - RoHS Compliance Status: CM
-
Manufacturer Name: Burndy
-
Strip Length: 2-1/16 Inch
-
Barrel Length: 4.62
-
Barrel Diameter: 0.95 Inch
-
Item Name: Compression Splice
-
Standards: UL 468A/B Listed, CSA Certified, RoHS Compliant
-
Outside Dia.: 0.95 in
-
For Wire Size: 400 kcmil
-
For Wire Type: Stranded
-
Contact Finish: Tin
-
Number of Crimps: 4.0
-
Maximum Wire Size: 400 kcmil
-
Minimum Wire Size: 400 kcmil
-
Termination Style: Crimp
-
Maximum Conductors: 2.0
-
For Conductor Material: Copper
-
Barrel Outside Diameter: 0.95 in
-
Length (Straight Wireway): 4.62 in
-
Maximum Operating Temperature: 194 Degrees F
-
Maximum Wire Insulation Diameter: 0.95 in
-
Compatible Installation Tool Model Number: MD6, MD7-34R, OUR840, PAT81KFT-18V, Y35, Y39, Y46, Y750, Y81KFT, Y81KFTMBH
-
ECCN: EAR99
-
Lug Wire Size: 400 kcmil
-
Die Code: 19.0
-
Seam Style: Seamless
-
Wire Gauge: 400 kcmil
-
Part Number: YS32
-
Barrel Size: Long
-
EU RoHS Indicator: Yes
-
Finish Type: Tin-Plated
-
Conductor Type: CODE
-
Electrical Ratings KVA: 35 kV
-
Operating Temperature: 90 °C
