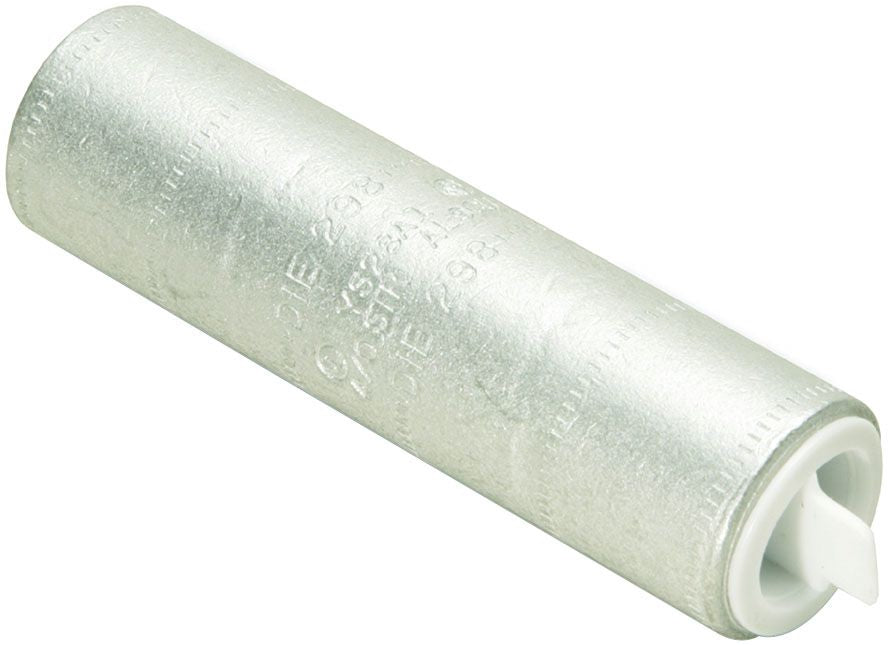

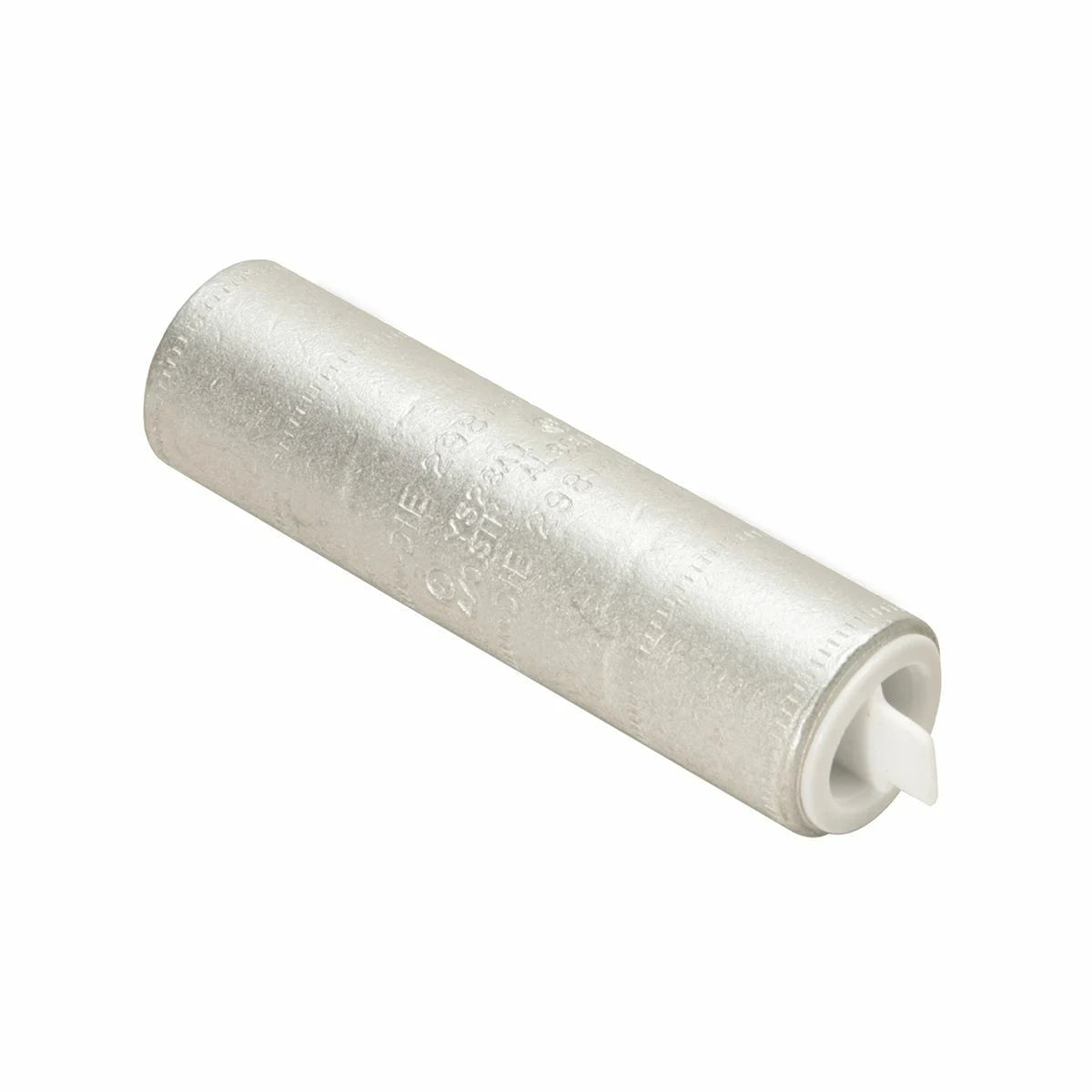

BURNDY YS30A1 300 kcmil AL Splice Blue Color Code

Product Description

The BURNDY YS30A1 is a 300 kcmil aluminum splice designed for effective wire connections in electrical applications. This product has an electro-tin plated finish for durability and corrosion resistance. The internal chamfer allows for easy cable entry, ensuring a secure and efficient splice. It is suitable for use with stranded aluminum or copper conductors.

• Voltage rating of thirty-five kilovolts.
• UL and CSA approved for safe use.
• Easy identification with a color-coded blue end cap.

Product Highlights

The BURNDY YS30A1 splice connects cables securely and efficiently. It is designed for high conductivity and low resistance.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YS30A1
• Material: Aluminum
• Finish: Electro-Tin Plated
• Temperature Rating: 194°F
• Voltage Rating: 35kV
• Wire Size: 300 kcmil
• Application: Wire Splice
• Country of Origin: USA
