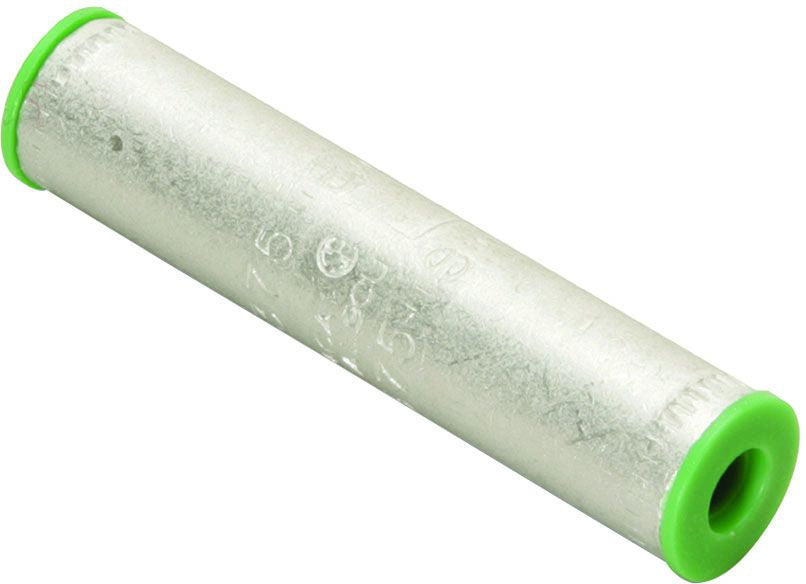

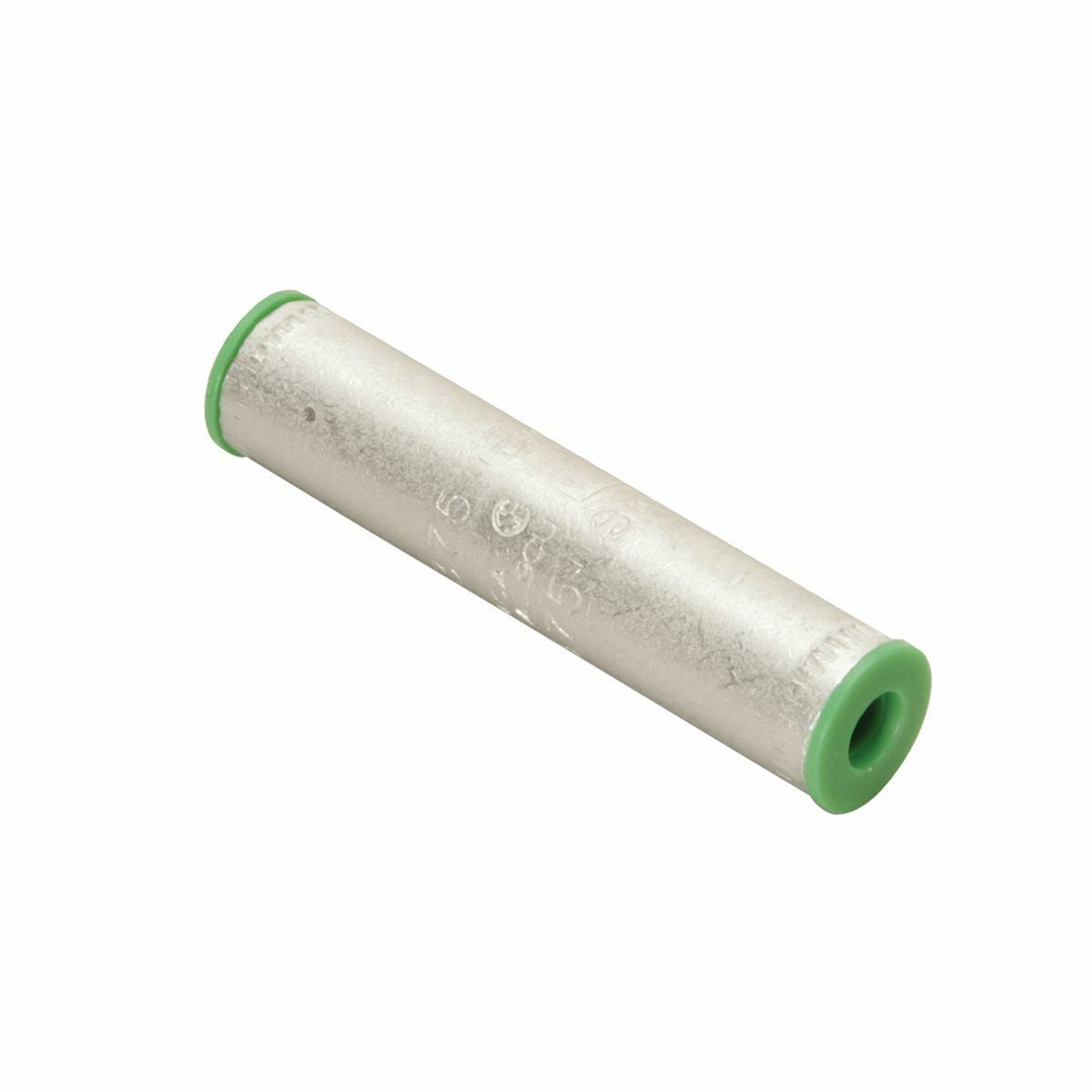

BURNDY YS2CA1 2 AWG AL Splice AL9CU Internal Chamfer Tin Plated Prefilled PENETROX End Cap UL/CSA 90C Up to 35kV

Product Description

BURNDY YS2CA1 is a 2 AWG aluminum splice designed for reliable wire connections. This internal chamfer, tin-plated splice is prefilled with PENETROX, enhancing conductivity and promoting corrosion resistance.

• Wire splice rated for aluminum conductors
• Voltage rating is up to thirty-five kilovolts
• UL and CSA approved for safety and reliability

Product Highlights

This product is suitable for connecting stranded copper or aluminum wires. It features a solid center stop that guides the conductor into the splice, ensuring a secure connection.

Product Information

Standard Information

• Catalog Number: YS2CA1
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Finish: Tin-Plated
• Application: Wire Splice
• Temperature Rating: 90 °C
• Voltage Rating: 35 kV
• Wire Strip Length: 1-1/8 inches
• Special Features: Features a bevelled barrel for easy cable entry and is manufactured from high-conductivity aluminum.
• Cross Reference Products: ASN-2, ASC2T
